Description

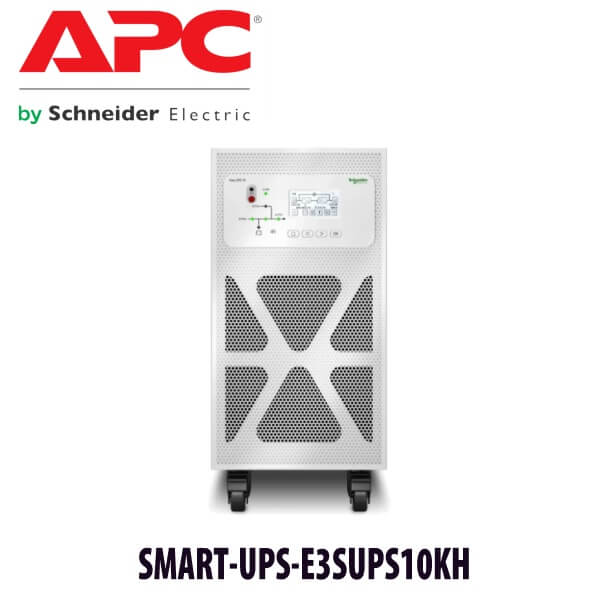

APC Easy UPS 3S E3SUPS10KH Dubai 10kVA 3-Phase Online UPS

The server room does not always fail because the whole building goes dark.

Sometimes one phase drops. Sometimes voltage sits low for ten minutes while the rest of the office looks normal. Sometimes the AC trips overnight, the UPS batteries sit in a warm room, and nobody knows until the switches start alarming in the morning.

That is when a small plug-in UPS is no longer the right answer. A 10kVA three-phase UPS is a building-level decision. It protects the server racks, core switches, storage, access control panels, CCTV recording, PABX, and the systems that keep the office working when power quality is not perfect.

The APC E3SUPS10KH is made for that point. Not a desktop backup box. A 10kVA Easy UPS 3S system for three-phase electrical environments in Dubai, supplied, installed, tested, and commissioned by Vector Dubai.

What the APC E3SUPS10KH is

The APC E3SUPS10KH is a 10kVA APC Easy UPS 3S system for commercial and technical sites that use three-phase electrical distribution. It sits above small rack UPS systems and below larger data-centre UPS platforms. That makes it a good fit for Dubai offices, clinics, small data rooms, telecom rooms, security control rooms, engineering offices, and light industrial control systems.

This model belongs to APC’s Easy UPS 3S range. In the VDS content plan, E3SUPS10KH is listed as a 10kVA 3-phase input/output UPS, with E3SUPS15KH, E3SUPS20KHB, and E3SUPS30KHB as the larger models in the same enterprise group. The page should be positioned as a current APC UPS product, not a discontinued model.

The important buyer point is simple: this UPS is not installed by plugging it into a wall socket. It is a hardwired system. It needs electrical inspection, input and output cabling, breaker coordination, load assessment, bypass planning, ventilation checks, and commissioning under load. Vector Dubai handles the supply and installation, so the UPS is not just delivered to site and left for the facility team to figure out.

Installation means the unit is positioned, wired, started up, tested under real load, checked for alarms, and handed over with basic operating guidance. For server rooms and facility loads, this matters. A 10kVA UPS that is not commissioned properly can create more trouble than it solves.

10kVA and kW: the sizing point procurement teams often miss

UPS systems are sized in kVA, but equipment consumes real power in kW. The APC E3SUPS10KH is a 10kVA UPS. The final kW rating must be checked against the APC datasheet before publishing because the kW number depends on the model’s power factor rating. Some enterprise UPS systems are unity power factor. Others are lower. That difference changes the actual usable load.

For buyers, this is not a small detail. A 10kVA UPS does not automatically mean every 10kW load is safe. The connected load, battery runtime target, redundancy plan, and future growth all need to be checked before the order is placed.

A typical Dubai server room load might include two rack servers, a storage appliance, two core switches, a firewall pair, CCTV NVRs, PABX equipment, access control panels, and monitoring hardware. On paper that can look like “only a few racks.” In real power terms, it may sit anywhere from 3kW to 8kW depending on server count, PoE load, storage type, and cooling design.

The mistake is buying from the kVA label alone. Vector Dubai checks the load in watts or kilowatts, then sizes the UPS with headroom.

Where E3SUPS10KH fits in Dubai

The E3SUPS10KH is suitable when the protected load is too large or too central for a small rack UPS. It is often considered for server rooms in business towers, clinic IT rooms, network rooms in hotels, retail head offices, warehouses with ERP terminals, and security control rooms where CCTV, access control, and network equipment must stay online together.

In Dubai, the issue is rarely one simple blackout. DEWA supply is stable, but power events still happen inside buildings. Older commercial buildings can have voltage dips under lift and AC load. Free zone facilities vary by age and electrical design. Construction work nearby can create temporary disturbance. High-density towers have many tenants sharing building infrastructure. The UPS has to deal with the electrical reality at site, not just the clean numbers in a brochure.

For smaller single-rack installations, an APC Smart-UPS SRT or SRTG model may be enough. For a central IT room with three-phase distribution and several dependent systems, the Easy UPS 3S class becomes the better fit.

That is the decision Vector Dubai helps with before quoting. Sometimes the answer is E3SUPS10KH. Sometimes it is a smaller rack UPS. Sometimes the right move is to step up to 15kVA or 20kVA because the current load is already too close to the limit.

Why online topology matters for this size

Small office UPS systems often use standby or line interactive topology. Those designs are fine for desktops, routers, POS counters, and small network closets. They correct or bridge short power events, then switch to battery when needed.

A 10kVA UPS usually protects more sensitive and more expensive equipment. The cost of a hard shutdown is higher. Database corruption, CCTV recording gaps, PABX outage, access control failure, server disk errors, and storage controller faults can all cost more than the UPS itself.

Online double conversion gives the load a controlled output supply all the time. The UPS does not wait for incoming power to fail before acting. It is already feeding the equipment through the inverter. When mains power goes out, there is no transfer delay. When voltage fluctuates, the connected load does not see the full disturbance.

For Dubai server rooms, clinics, labs, and control systems, that constant protection is the reason to choose online UPS architecture.

Hardwired installation, not socket output

For small UPS models, outlet type matters: IEC C13, IEC C19, Schuko, or universal sockets. For the E3SUPS10KH, the buyer question is different. This is a three-phase hardwired UPS. Output is not a row of small sockets for servers. It feeds a protected distribution path through electrical cabling.

That means the site must be checked before delivery. Is there space for the UPS? Is the floor suitable? Is the electrical room ventilated? Is the protected load on the correct distribution board? Is there a bypass path? Are the existing breakers suitable? Is the UPS feeding only IT load, or has someone mixed AC, lighting, printers, or non-critical equipment onto the same circuit?

These questions are not paperwork. They decide whether the UPS performs properly during a real event.

Vector Dubai checks the connected load, site access, electrical readiness, and installation plan before quoting. For offices in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, and Masdar City, this also helps avoid last-minute facility approval delays.

Battery runtime in Dubai: ask for the load first

Runtime for the APC E3SUPS10KH cannot be quoted honestly from the model number alone. It depends on the battery configuration and the real connected load in kW. A 10kVA UPS running a 3kW load has a very different runtime from the same UPS running an 8kW load.

This is why Vector Dubai asks for the equipment list before promising runtime. Server model, storage model, switch PoE load, CCTV recorder count, firewall pair, PABX, access control controllers, and expected future expansion all matter.

Dubai temperature also changes the real battery story. A UPS battery installed in a properly cooled server room can last longer than one placed in a warm electrical room. In hot or poorly ventilated areas, battery life can fall to 2–3 years. Battery capacity also drops as batteries age, so a runtime that looks acceptable on day one may be shorter in year three.

For E3SUPS10KH projects, Vector Dubai sizes the UPS and battery plan around the required runtime: clean shutdown, generator bridge, or longer hold time for critical systems.

E3SUPS10KH vs 15kVA and 20kVA Easy UPS 3S

A 10kVA UPS is often the first three-phase UPS size considered by Dubai businesses moving beyond rack-mounted systems. It is big enough for a small server room, but still compact enough for many commercial electrical rooms. The decision is not only “How much load do I have today?” It is also “What will this room look like in two years?”

Choose the APC E3SUPS10KH when the protected load is comfortably below the safe operating range and the site does not expect major expansion. This is common for one server rack, a core network stack, firewall pair, CCTV recording, access control panels, and PABX equipment.

Step up to the E3SUPS15KH when the current load is already close to the upper range, when more servers are planned, or when the facility team wants extra margin for battery ageing and added equipment. The larger unit gives breathing room. That matters in Dubai offices where IT rooms grow one device at a time: another switch, another NAS, another NVR, another access control panel.

Step up again to the E3SUPS20KHB when the protected load is no longer a small server room. Multi-rack IT rooms, larger storage systems, heavier PoE switching, and longer runtime requirements usually need a larger UPS plan. The “B” model also needs battery configuration checked carefully before quoting.

Vector Dubai checks your connected load and future expansion plan before recommending 10kVA, 15kVA, 20kVA, or 30kVA. Buying too small causes overload risk. Buying too large wastes budget and floor space. The correct answer is the one that matches the actual load.

When a rack UPS is enough — and when it is not

Not every Dubai office with servers needs a 10kVA three-phase UPS. A single rack with a modest load may be better served by an APC Smart-UPS SRT or SRTG system. These are online double conversion units too, but they are usually simpler to install, easier to place in an IT rack, and suitable for smaller loads.

The E3SUPS10KH starts to make sense when the load is centralised, the electrical distribution is three-phase, and the protected systems are not all in one rack. A clinic with IT servers, imaging workstations, access control, CCTV, and network switches may need a UPS feeding a protected distribution board. A warehouse may need network, PABX, barcode systems, and ERP terminals protected from one point. A hotel back office may need server, CCTV, telephone, and access control systems online together.

That is a different job from plugging servers into IEC C13 outlets. It needs a planned electrical route and a proper handover.

Vector Dubai supplies both rack UPS systems and three-phase UPS systems, so the recommendation does not have to be forced. If a smaller APC model fits, we will say so. If the site needs a hardwired three-phase UPS, we specify it properly.

Monitoring and alerts

The APC E3SUPS10KH should be treated as critical infrastructure. Once installed, the facility or IT team needs to know when the UPS transfers to battery, when load is high, when battery health changes, and when maintenance is due.

Small APC SmartConnect models use an ethernet cloud monitoring port. Enterprise three-phase UPS systems normally use UPS monitoring interfaces, network cards, dry contacts, or building management integration depending on the configuration. The exact monitoring accessory for E3SUPS10KH should be checked against the APC datasheet and project requirement before ordering.

The goal is not a dashboard nobody opens. The goal is an alert when something happens at 2AM. A server room power event, a battery warning, a high-load alarm, or an input power fault should reach the responsible person before the office opens.

For IT teams using monitoring tools, Vector Dubai can discuss SNMP-based monitoring options where supported. For facility teams, alarm relay or BMS integration may be the better route. The monitoring plan should be decided before commissioning, not after the first incident.

Battery life in Dubai heat

UPS batteries do not like heat. That matters in Dubai more than it does in cooler climates. A UPS installed in a properly air-conditioned server room has a very different battery life from one installed in a warm electrical closet with poor airflow.

For many UPS systems in Dubai, 2–3 years is a practical battery replacement expectation. Brochure numbers often assume ideal temperature. Real plant rooms, warehouse offices, and older commercial buildings are not ideal. Even when the UPS is sized correctly, heat shortens battery life and reduces runtime.

This is why Vector Dubai checks the installation location. If the room is too hot, the UPS may work on day one but suffer early battery failure later. If the battery system is expected to support a generator bridge, the room temperature matters even more. You cannot plan a 10-minute hold time and then ignore the environment that decides whether those 10 minutes are still available two years later.

For the E3SUPS10KH, battery replacement model and battery cabinet details should be confirmed against the supplied configuration. Vector Dubai can provide battery replacement service, load testing, and maintenance checks after installation.

What Vector Dubai checks before quoting

A proper 10kVA UPS quote needs more than a model number. Before quoting the APC E3SUPS10KH, Vector Dubai checks the connected load, site type, electrical readiness, battery runtime requirement, monitoring requirement, and installation access.

The equipment list is the first step. Servers, storage, switches, firewall, CCTV, PABX, access control, Wi-Fi controllers, and any control systems should be listed with model numbers where possible. If power readings are available, even better. If not, Vector Dubai estimates conservatively and confirms before commissioning.

The second step is the electrical path. The UPS needs suitable incoming supply and a protected output distribution plan. A bypass arrangement may be needed for maintenance. Cable routing, breaker ratings, and room layout affect the installation timeline.

The third step is runtime. Does the UPS only need to bridge short power events? Does it need to keep systems alive until a generator starts? Or does the business expect longer operation during a full outage? Those are different designs.

Supply and installation in Dubai

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, operating since 2010. For enterprise UPS projects, supply and installation are handled together. That means the UPS is not simply dropped at reception with a delivery note.

For the APC E3SUPS10KH, installation can include site check, delivery coordination, positioning, electrical installation coordination, startup, load testing, alarm check, monitoring discussion, and handover. For IT rooms, we also review what equipment is actually protected and what is still sitting on raw utility power.

Dubai businesses often discover during installation that the “server room UPS circuit” also feeds printers, pantry sockets, lights, or other loads that should not be on backup. This is common in older offices and fitted-out free zone spaces. Cleaning that up before commissioning gives the UPS a better chance of doing its real job.

For procurement teams, Vector Dubai provides official AED quotes with VAT breakdown, delivery scope, warranty details, and installation scope. For facility managers, the quote can separate UPS supply, electrical work, commissioning, and maintenance items where required.

Useful internal links for buyers

For a full UPS sizing discussion, visit the UPS system Dubai page. If your load is smaller and rack-based, compare with APC online UPS models such as APC SRTG10KXLI.

For larger three-phase projects, compare the APC Easy UPS 3S range: E3SUPS15KH, E3SUPS20KHB, and E3SUPS30KHB when those product pages are published.

Frequently asked questions

My connected load is 6kW. Do I need E3SUPS10KH or E3SUPS15KH?

The answer depends on the confirmed kW rating of the exact UPS configuration and your growth plan. As a sizing rule, normal load should stay around 70% or lower. If 6kW is already close to that level after future expansion is included, E3SUPS15KH may be the safer choice. Vector Dubai checks the actual load before quoting.

Can the APC E3SUPS10KH run a server room through a full power outage?

Only if the battery configuration and load are sized for that runtime. A 10kVA UPS model number alone does not tell the runtime. Runtime depends on connected kW load and battery system. For many sites, the goal is clean shutdown or generator bridge, not hours of operation.

What is the replacement battery for E3SUPS10KH?

The replacement battery configuration must be confirmed from the exact APC Easy UPS 3S battery setup supplied with the project. Vector Dubai can identify the correct battery module or cabinet from the UPS serial number and site configuration, then supply and replace it in Dubai.

E3SUPS10KH vs E3SUPS15KH — what is the difference?

E3SUPS10KH is the 10kVA model. E3SUPS15KH is the 15kVA step-up model in the Easy UPS 3S range. Choose the 10kVA model for smaller three-phase UPS loads with enough headroom. Choose 15kVA when current load, future growth, or battery ageing margin makes 10kVA too tight.

Does Vector Dubai install the APC E3SUPS10KH on the same day?

Same-day box delivery may be possible depending on stock and location, but a 10kVA three-phase UPS installation needs site readiness. Electrical supply, cabling path, breakers, bypass plan, room access, and load details must be checked first. Vector Dubai confirms the installation schedule after reviewing the site.

Is APC E3SUPS10KH covered under Schneider Electric warranty in UAE?

Yes, APC UPS systems supplied through authorised UAE channels carry Schneider Electric UAE warranty terms. Exact warranty period and battery warranty should be confirmed on the quote. Vector Dubai coordinates warranty support from Dubai.

Our Dubai office has voltage dips but not many blackouts. Does a 10kVA UPS still help?

Yes. Online double conversion UPS systems protect against more than full outages. They regulate unstable incoming power and provide controlled output to the load. This is useful in older commercial buildings, high-density towers, free zones, and sites affected by nearby construction or heavy AC load.

Who is the supplier of APC E3SUPS10KH in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APC Easy UPS 3S systems with installation, testing, commissioning, warranty coordination, and support across all seven emirates.

What is the best 10kVA UPS for a server room in Dubai?

For a three-phase server room or facility load, the APC E3SUPS10KH is a strong fit when the load and runtime requirement match a 10kVA Easy UPS 3S design. For smaller rack-only loads, an APC SRT or SRTG online UPS may be better. For higher growth, E3SUPS15KH or E3SUPS20KHB should be considered.

Can Vector Dubai export APC E3SUPS10KH outside the UAE?

Yes. Vector Dubai can quote APC UPS systems for export from Dubai. FOB Dubai pricing, export documentation, packing details, and country-specific shipment discussion are available on request. Share the model, quantity, country, and runtime requirement on WhatsApp.
