Description

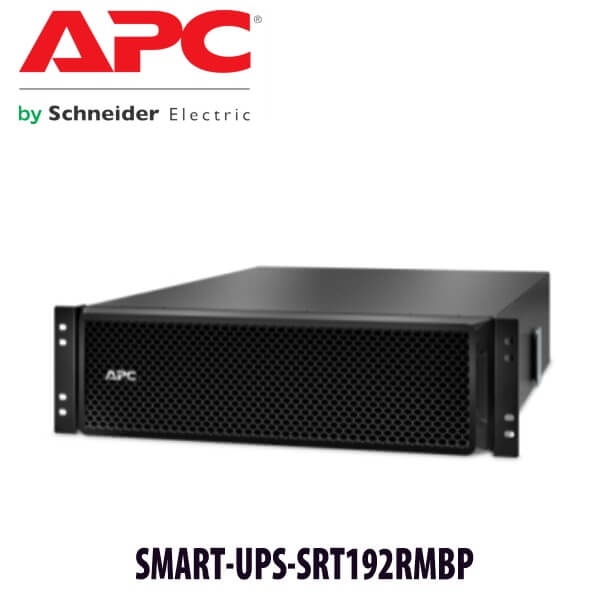

APC SRT192RMBP Dubai External Battery Pack for Smart-UPS SRT Rack 5kVA

That gap matters at 2AM when the building power drops, the server room is locked, and nobody is standing in front of the rack. The UPS has enough capacity to carry the load. The servers are protected. The storage array is still online. The firewall is still passing traffic. But the battery clock is running down faster than the shutdown script can finish.

That is the reason businesses in Dubai add the APC SRT192RMBP to high-capacity Smart-UPS SRT rack systems. Not to increase the kVA rating. Not to connect more load. To increase runtime. More minutes for VMware hosts to shut down cleanly. More time for NAS and SAN storage to flush writes. More margin for network switches, firewalls, access control controllers, and Etisalat or du edge equipment to stay alive during a power event.

In a small office, a short UPS runtime may be enough. In a rack with servers, storage, and network gear, short runtime is risky. Five minutes disappears quickly when shutdown policies are badly timed, server room cooling is weak, or the connected load is higher than expected. The SRT192RMBP gives compatible APC Smart-UPS SRT rack systems the extra battery capacity needed for controlled shutdown or longer ride-through time.

What the APC SRT192RMBP is

The APC SRT192RMBP is an external battery pack for compatible APC Smart-UPS SRT rack-mounted online UPS systems, especially higher-capacity SRT rack models from the 5kVA class upward. It is designed for runtime extension. The UPS remains the power conversion and control unit. The external battery pack adds stored energy so the UPS can support the connected rack load for longer during mains failure.

This is an important distinction. The SRT192RMBP does not turn a 5kVA UPS into a 6kVA UPS. It does not increase watts. It does not allow you to overload the UPS. If the UPS is rated for 5000W, the load still needs to stay within that rating. What changes is battery runtime. A load that might run only a few minutes on internal batteries can run longer once external battery packs are connected, detected, and configured correctly.

That makes the SRT192RMBP useful for server rooms, finance offices, clinics, hotels, warehouses, call centres, and free zone facilities where the load is too important to crash but a generator may take time to start. It also fits sites where generator power exists but is not instant. The UPS carries the load during the gap. The battery pack decides whether that gap is comfortable or stressful.

Which UPS models use SRT192RMBP?

The SRT192RMBP is used with compatible APC Smart-UPS SRT rack UPS systems in the higher power range. In the VDS catalogue, it belongs with the SRT 5kVA and above rack family. Typical project discussions include SRT rack models such as the APC SRT5000RMXLI, SRT6KRMXLI, and SRT10KRMXLI, depending on the exact UPS already installed or being supplied.

Compatibility must be checked by exact UPS part number before ordering. Similar-looking APC SRT models can use different external battery packs. A tower UPS and rack UPS may not use the same battery pack. A 3kVA SRT rack UPS does not automatically use the same external battery system as a 5kVA or 10kVA SRT rack UPS. This is where many procurement mistakes happen.

If you already have an APC UPS installed, send a photo of the rear label on WhatsApp. The model number matters more than the front badge. We check the exact part number, current battery condition, rack space, connected load, and required runtime before quoting the SRT192RMBP.

Why Dubai server rooms need more runtime than the datasheet suggests

Runtime charts are useful, but they are not the whole story in Dubai. A chart assumes a controlled temperature, healthy batteries, and a measured load. Real server rooms are messier. A rack that was designed for 2kW may be running closer to 3kW after two extra switches, a firewall upgrade, and a storage expansion. The UPS still works, but battery minutes fall sharply as load rises.

Temperature is the second issue. Batteries do not like heat. A server room held at 22°C is very different from a back-office rack sitting near 30°C or higher. In older Dubai commercial buildings and warehouse offices, cooling around the rack is often weak. The AC cools the room, not the cabinet. Hot air stays behind the rack, battery life shortens, and runtime drops earlier than expected.

The usual battery life expectation in Dubai is 2 to 3 years, not the longer life often assumed from cooler environments. That applies to UPS internal batteries and external battery packs. A new SRT192RMBP gives runtime margin today, but the site still needs battery testing and replacement planning. Runtime is not a one-time number. It changes with load, age, and temperature.

Voltage dips are another reason runtime planning matters. DEWA supply is stable, but older buildings, high-density towers, construction zones, and some free zone facilities still see dips, brief cuts, or transfer events. Most events are short. Some are not. If the UPS supports a server rack for only 5 minutes, the team has almost no decision window. With correctly sized external battery packs, there is time to respond, shut down, or ride through the event.

Online double conversion UPS systems and external batteries

APC Smart-UPS SRT systems are online double conversion UPS systems. That means incoming AC power is converted and regenerated continuously before reaching the protected load. The connected servers do not wait for a transfer to battery when the mains fails. The inverter is already feeding the load. For sensitive racks, that matters.

Online double conversion is the right topology for server rooms, data racks, medical equipment, security control rooms, and finance systems where a transfer delay is not acceptable. It also handles poor input power better than simpler UPS designs. The trade-off is heat and energy use. Online UPS systems run harder than line interactive units. In Dubai, that makes cooling and battery condition even more important.

External battery packs like the SRT192RMBP work with the UPS battery charger and runtime calculation system. After installation, the UPS must detect the connected packs correctly. The runtime estimate should be checked under actual load. Shutdown software should then be adjusted so servers shut down at the right time, not too early and not too late.

SRT192RMBP for clean shutdown

Many buyers ask for “one hour runtime” because they do not want the rack to shut down. Sometimes that is the right request. Often, the real requirement is clean shutdown. There is a difference.

Clean shutdown means the UPS supports the rack long enough for applications to close, virtual machines to shut down in the correct order, databases to stop writing, and storage systems to finish safely. A firewall or switch may remain online until the final stage. The aim is not to keep everyone working through a long outage. The aim is to avoid corrupted data, damaged file systems, and a painful restart the next morning.

For a rack running one host and a small NAS, the required runtime may be modest. For a rack running multiple hosts, shared storage, access control, CCTV recording, and VoIP or PABX equipment, shutdown takes longer. The SRT192RMBP is specified after that sequence is understood. Which device shuts down first? Which must stay online longest? Is there a generator? Does the generator start automatically? Are Etisalat or du routers in the same rack? These details change the battery plan.

Vector Dubai supplies and installs APC SRT battery packs with this practical check. We do not treat the battery pack as a spare part thrown into the rack. It is part of the power plan. The UPS, battery pack, load, cooling, and shutdown software all need to work together.

SRT192RMBP for generator bridge time

Some Dubai sites already have generator backup. Hotels, clinics, warehouses, larger offices, and industrial sites may have an automatic transfer system. That does not remove the need for UPS battery runtime. It changes the runtime target.

A generator may take seconds to start, stabilise, and accept load. In a perfect test, this looks simple. During a real event, there can be delay, failed start, low fuel, transfer problems, or manual intervention. A UPS with only internal batteries may have enough time for a normal generator start, but not enough time for a slow one. The SRT192RMBP adds bridge time so the rack is not depending on everything else working perfectly.

This is common in Jebel Ali Free Zone warehouses, Dubai Investment Park facilities, older Deira and Bur Dubai buildings, and multi-tenant towers where the IT team does not control the building electrical system. The UPS is the last line of defence for the rack. External battery runtime gives that last line more room.

Installation is more than sliding it into the rack

The SRT192RMBP is a rack battery pack, and rack battery packs are heavy. They need proper rack planning. The rack must have space, suitable rails or mounting hardware, correct weight distribution, clear cable routing, and enough rear clearance for battery connections. In shallow wall cabinets, badly loaded racks, or racks with blocked rear access, installation needs to be checked before the team arrives with the unit.

Vector Dubai installation includes checking the compatible UPS model, placing the battery pack in the rack, connecting the battery cable correctly, confirming UPS detection, checking runtime estimate under load, and reviewing shutdown settings. Where PowerChute, network management, or SNMP monitoring is already used, the new runtime must be reflected in the shutdown policy.

That final step matters. A battery pack that is physically connected but not reflected in shutdown planning is only half installed. The rack may have more runtime, but the servers may still shut down based on old settings. We check the full chain: battery, UPS, rack load, monitoring, and shutdown timing.

How many SRT192RMBP packs do you need?

The answer depends on the UPS model, the connected load, the battery age, and the required runtime. A 5kVA SRT rack UPS carrying 2kW does not behave like the same UPS carrying 4.5kW. The UPS model may be identical. The runtime result will not be.

That is why we ask for the connected load before quoting. A runtime target without load is just a guess. For a rack with servers, storage, switches, firewall, CCTV recorder, and PABX equipment, we check the real wattage or the UPS load percentage. Then we size the battery pack plan around the shutdown target.

Some sites only need enough runtime for clean shutdown. Others need enough bridge time for a generator to start. A few need extended runtime because the rack must keep running during short outages without staff intervention. These are different jobs. The SRT192RMBP is the right battery pack only when the compatible UPS model and runtime target match.

SRT192RMBP vs internal replacement battery

There are two common battery conversations around APC SRT rack UPS systems. One is replacement battery. The other is external battery pack. They are not the same job.

A replacement battery restores the UPS to its original battery condition. If the battery warning is active, runtime is low, or the UPS is 2 to 3 years into Dubai service, the internal battery may need replacement. For the SRT 5kVA to 10kVA family, the VDS catalogue lists APCRBC140 as the replacement battery family. That is a maintenance item.

The SRT192RMBP is different. It adds external battery capacity. You may need it even when the UPS batteries are healthy. If the internal battery gives enough runtime for shutdown, you may not need an external pack. If the UPS is healthy but runtime is still too short, the SRT192RMBP is the discussion.

In many Dubai server rooms, both jobs happen together. Old internal batteries are replaced, then an external battery pack is added to meet the new runtime target. That avoids a weak internal battery pulling down the whole runtime plan.

Compatible APC SRT rack UPS pages

The SRT192RMBP belongs in the higher-capacity APC Smart-UPS SRT rack environment. For UPS selection, start with the APC UPS Dubai hub. For installed rack systems, check the UPS model first and match the battery pack before ordering.

If you are buying a new UPS and battery pack together, the battery plan should be specified at the same time as the UPS. Waiting until after installation often creates rack-space problems. The rack may already be full. The rails may not be correct. The rear cable route may be blocked. Better to plan the SRT UPS, SRT192RMBP battery pack, network card, and shutdown software as one rack power system.

Pricing, supply, and installation in Dubai

APC SRT192RMBP pricing is quoted in AED after compatibility and runtime requirement are checked. We do not show a fixed price because the correct quote often includes delivery, rack work, installation, and sometimes additional battery packs or replacement batteries.

Vector Dubai supplies and installs APC SRT battery packs across the UAE. Installation includes model check, rack placement, battery connection, UPS detection check, load review, runtime estimate check, and shutdown setting review. For monitored racks, we also check whether the UPS is reporting battery status through its network management card.

This matters for procurement teams. A battery pack delivered to reception is not the same as a battery pack commissioned in a rack. With APC SRT systems, the battery pack has to be part of the shutdown and monitoring plan. That is the difference between buying hardware and protecting the rack.

Frequently asked questions

Does SRT192RMBP increase the UPS kVA or watt capacity?

No. The SRT192RMBP increases runtime only. It does not increase the UPS load rating. If your UPS is overloaded, you need a larger UPS. If the load is within rating but runtime is too short, an external battery pack is the correct discussion.

Which UPS models are compatible with APC SRT192RMBP?

SRT192RMBP is for compatible higher-capacity APC Smart-UPS SRT rack systems in the 5kVA and above family. Exact compatibility must be checked by UPS part number before ordering. Send the rear-label photo of the UPS and we will confirm before quoting.

My rack load is 3000W. How many SRT192RMBP packs do I need?

It depends on the UPS model and required runtime. A 3000W load is a serious rack load, so the battery plan should be based on a runtime target such as 15, 30, or 60 minutes. We check the UPS model, load percentage, battery age, and shutdown sequence before recommending quantity.

Can SRT192RMBP run a server rack through a full power outage?

It can extend runtime, but “full power outage” needs a time target. If the requirement is clean shutdown, the battery plan may be smaller. If the requirement is long operation without generator support, we need the load and runtime target before specifying the number of packs.

What is the replacement battery for SRT 5kVA to 10kVA UPS systems?

For the APC SRT 5kVA, 6kVA, 8kVA, and 10kVA family, the VDS catalogue lists APCRBC140 as the replacement battery family. Replacement battery and external battery pack are different jobs. APCRBC140 restores battery condition. SRT192RMBP adds runtime capacity when compatible.

SRT192RMBP vs SRT192BP — what is the difference?

The RMBP version is the rack battery pack version for compatible rack-mounted SRT systems. SRT192BP is associated with compatible tower SRT systems. Do not mix them by guesswork. Confirm the UPS format and exact model number before ordering.

Does Vector Dubai install SRT192RMBP on the same day?

For available stock and confirmed compatible UPS models in Dubai, same-day or next-day installation can often be arranged depending on schedule and site access. Send the UPS label photo, rack photo, location, and runtime target on WhatsApp for confirmation.

How long do APC external battery packs last in Dubai?

In Dubai conditions, plan for 2 to 3 years in many server rooms. Better cooling can extend service life. Hot racks, blocked rear airflow, weak AC, or storage rooms without cooling shorten battery life and reduce runtime earlier than expected.

Who is the supplier of APC SRT192RMBP in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APC SRT192RMBP battery packs with compatibility checks, AED quotations, delivery, rack installation, and support for APC Smart-UPS SRT systems across the UAE.

What is the best external battery pack for APC SRT 5kVA rack UPS in Dubai?

For compatible SRT 5kVA and higher rack UPS systems, SRT192RMBP is the external battery pack family to check first. The best answer still depends on the exact UPS model, load, rack space, and runtime target. We confirm those details before quoting.

APC SRT192RMBP supply across the UAE

Vector Dubai supplies and installs APC SRT192RMBP external battery packs across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also support UPS battery projects in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, Masdar City, Dubai Investment Park, Dubai Silicon Oasis, and airport free zone sites. Multi-site work can be handled under one quote, with model verification and battery planning for each location.

Export from Dubai

Vector Dubai exports APC UPS systems, replacement batteries, network management cards, and external battery packs from Dubai to businesses, resellers, and project contractors across the Middle East, Asia, and Africa. FOB Dubai pricing is available for SRT192RMBP orders, subject to stock, destination, and quantity.

We supply export customers in Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq. In East and Southern Africa, we handle enquiries for Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe. In West Africa, we support Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast.

Export documentation can include commercial invoice, packing list, and certificate of origin where required. For battery shipments, destination rules and carrier acceptance must be checked before dispatch. Send country, quantity, and required delivery terms on WhatsApp for an export quote.
