APC SMC1000 2U Dubai



APC SMC1000 2U Dubai

APC SMC1000 2U Dubai also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels, so you can work indefinitely during brownouts and overvoltages.

Category:

Description

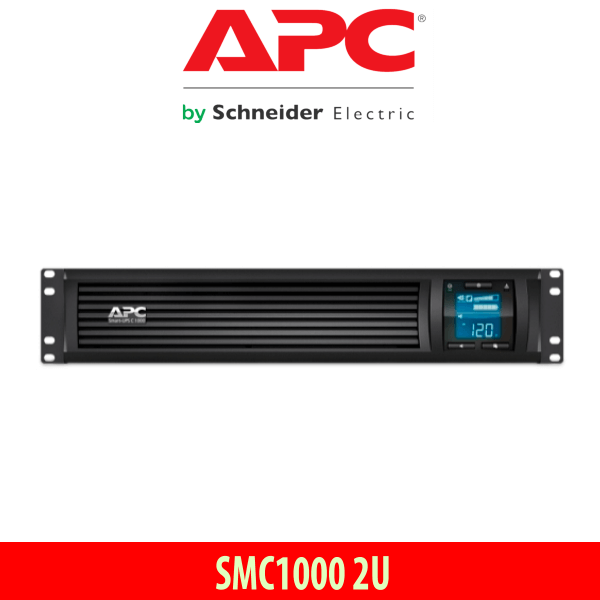

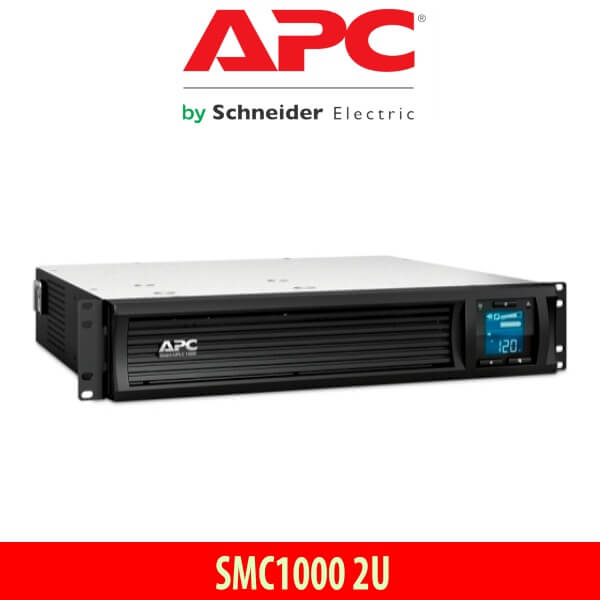

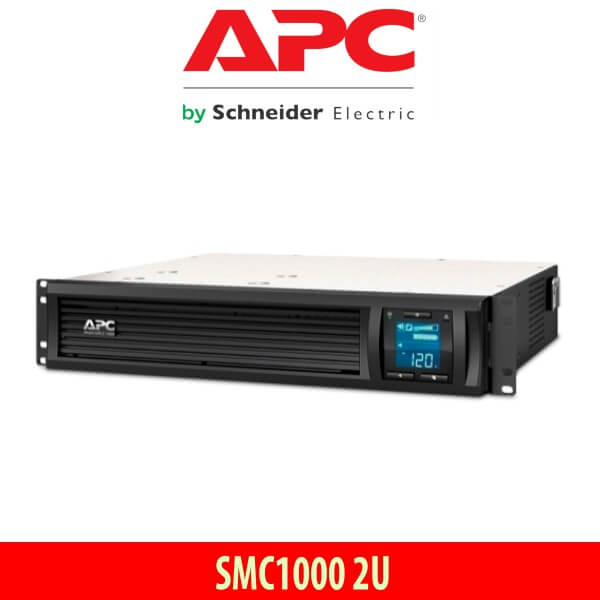

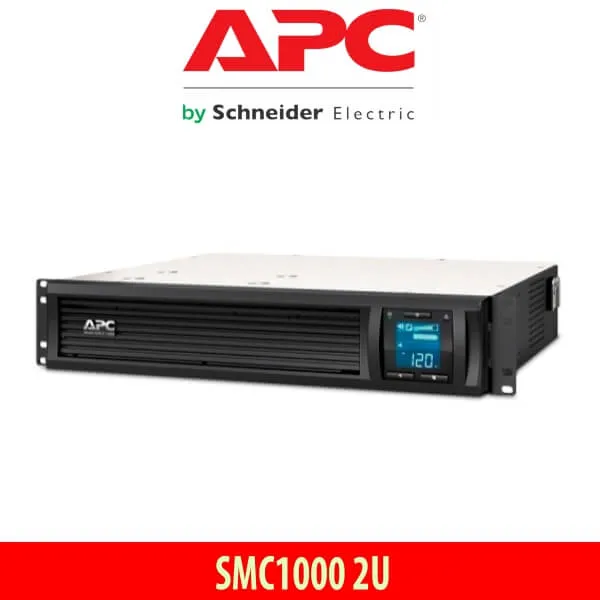

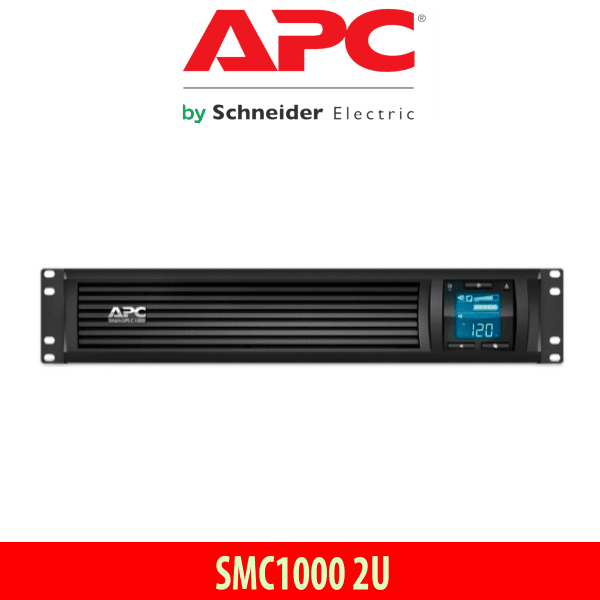

APC SMC1000 2U Smart UPS Dubai

The APC SMC1000 2U Dubai is a smart UPS which is an economical choice for small and medium businesses looking to protect entry-level servers, small switches, networking devices and point-of-sale (POS) equipment. APC SMC1000 2U Dubai brings the reliability of the world’s most popular network and server UPS to entry level applications. The Smart-UPS provides abundant battery backup power, so you can work through medium length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. APC SMC1000 2U Dubai also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels, so you can work indefinitely during brownouts and overvoltages. The Smart-UPS also includes unique “green” features, like power-saving outlets that automatically turn off idle peripherals. A high efficiency charging system and “AVR Bypass” also reduce power consumption. With the rest of the Smart-UPS’ standard features, APC SMC1000 2U Dubai is the perfect unit to protect your productivity from the constant threat of bad power and lost data.

Features :

Green mode : Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

LCD Status Display : Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. High online efficiency: Reduces utility costs, generates less heat.

Cold-start cable : Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specifications

General

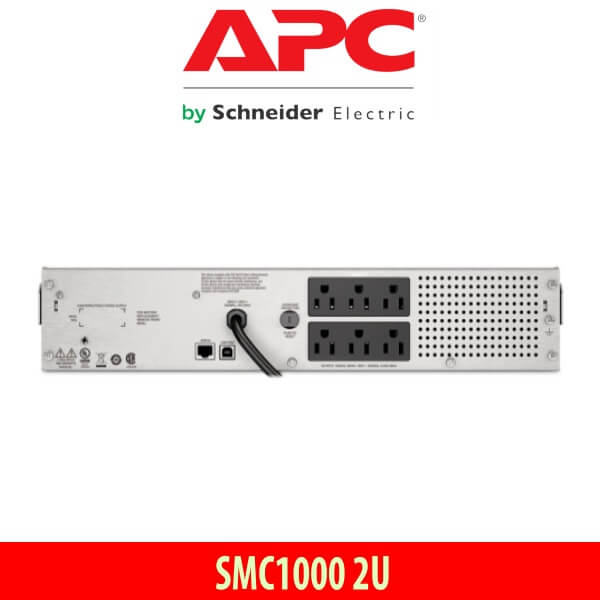

Total Outlets
  • 6 x NEMA 5-15R
  • 8 x NEMA 5-15R
Plug Type
NEMA 5-15P
Data Line Protection
RJ45
Communications
  • USB via Type-A
  • Serial via RJ45

Emergency Power Off (EPO) Support

No

Noise Filtering
0.3%
Topology
Line Interactive
Transfer Time
6 to 10 ms

Power

Surge Energy Rating
  • 455 Joules
  • 540 Joules
Maximum Wattage
  • 600 W
  • 500 W
Nominal Input Voltage
120 VAC
Input Voltage Adjustable Range
  • 85 to 136 VAC
  • 75 to 154 VAC
Input Frequency
50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage
120 VAC
Output Frequency
50/60 Hz ± 3 Hz
Voltage Distortion
<5%
Load Capacity
  • 1000 VA
  • 750 VA
Thermal Dissipation
  • 81 BTU/Hour
  • 100 BTU/Hour
  • 90 BTU/Hour
Waveform
Sine Wave

Battery

Cells
1
Chemistry
Lead-Acid
Full-Load Runtime
6 Minutes
Half-Load Runtime
16 Minutes
Charging Time
3 Hours
Replacement Battery
  • APCRBC124
  • RBC48

Environmental

Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 95%
Storage Temperature
5 to 113°F / -15 to 45°C
Storage Humidity
0 to 95%
Operating Altitude
10,000′ / 3000 m
Storage Altitude
50,000′ / 15,000 m
Noise Level
  • 42 dBA
  • 41 dBA
Certifications
REACH, RoHS, as per Manufacturer

Physical

Cable Length
  • 8′ / 2.4 m
  • 6′ / 1.8 m
Rackmount Size
Not Specified
Dimensions (W x H x D)
  • 3.5 x 17 x 16″ / 89 x 432 x 406 mm
  • 8.5 x 6.7 x 17.3″ / 215 x 171 x 439 mm
  • 6.34 x 5.43 x 14.53″ / 16.1 x 13.79 x 36.91 cm
Weight
  • 45 lb / 20.5 kg
  • 38 lb / 17.3 kg
  • 27.5 lb / 12.5 kg
