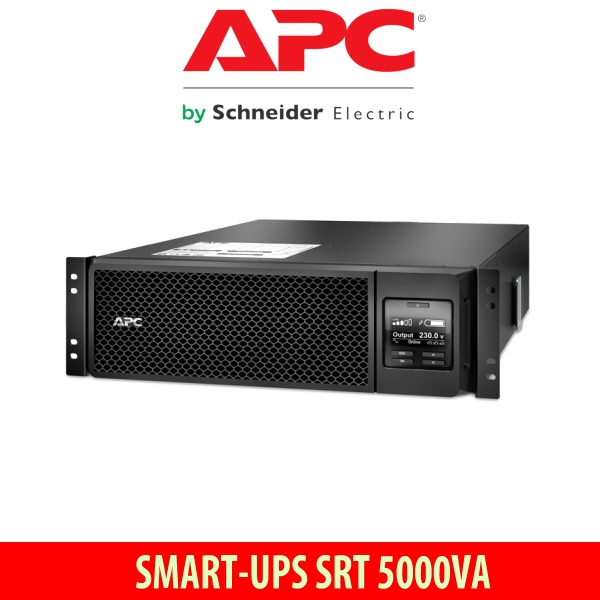

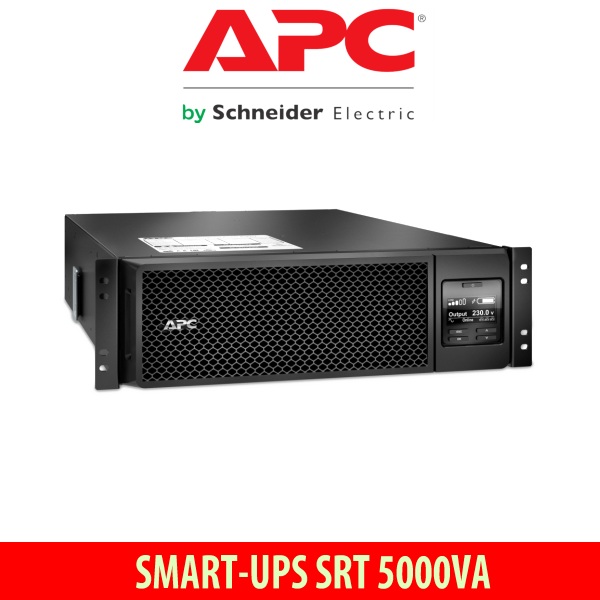

APC Smart-UPS SRT5000VA Dubai



APC Smart-UPS SRT 5000VA Dubai

The APC Smart-UPS SRT 5000VA Dubai is a highly versatile UPS that has been developed for the harshest power conditions in the world. It provides high density, True double-conversion on-line power protection for servers, voice/ data networks, medical labs, and light industrial applications.

Category:

Description

APC Smart-UPS SRT5000VA Dubai

The APC Smart-UPS SRT5000VA Dubai is a highly versatile UPS which has been developed for the harshest power conditions in the world. It provides high density, True double-conversion on-line power protection for servers, voice/ data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20Kva in a rack/tower convertible form, the APC Smart-UPS SRT5000VA Dubai is available from 2U to 12U. Recent family extensions at 15 and 20Kva enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS on-line can be configured with matching battery packs to comply with aggressive runtime demands. The included powerful management software provides unattended graceful shutdown of network operating systems. All models 5Kva and above include an integrated network management card for remote management (optional on models below 5 kVA). the Smart-UPS on-line family provides customers with a reliable source of Uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features & Benefits

Availability

  • Automatic internal bypass
    Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Scalable runtime
    Allows additional run time to be quickly added as needed.

Adaptability

  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Plug-and-Play external batteries
    Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Flash upgradeable firmware
    Install maintenance releases of firmware remotely using FTP.

Serviceability

  • Predictive failure notification.
    Provides early-warning fault analysis ensuring proactive component replacement.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions

Serviceability

  • Predictive failure notification.
    This advanced feature of the APC Smart-UPS SRT 5000VA Dubai provides early-warning fault analysis ensuring proactive component replacement.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
    Audible alarms
    Provides notification of changing utility power and UPS power conditions
Protection
  • Frequency and voltage regulation
    Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Input Power Factor Correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Generator compatible
    Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Resettable circuit breaker
    Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances

Marketing features

  • Avoids costly power problems by keeping your IT equipment and data protected and available .
    Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
  • Save time with easy and convenient remote/network accessibility.
    Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
  • Peace of mind that comes with full equipment compatibility and reliability of a leader
    The APC Smart-UPS SRT5000VA Dubai provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
  • Low operating and maintenance costs with proven reliability and intelligent battery management .
    Intelligent battery management, pioneered by APC Smart-UPS SRT 5000VA Dubai , maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Technical Specifications

Output power capacity: 4.5 KWatts / 5.0 kVA

Max Confidurable Power: 4.5 KWatts / 5.0 kVA

Nominal Output Voltage: 230V

Output Voltage Distortion: Less than 2%

Output Frequency (sync to mains): 50/60Hz +/- 3 Hz

Other Output Voltages: 220, 240

Load Crest Factor: 3 : 1

Topology: Double Conversion Online

Waveform Type: Sine Wave

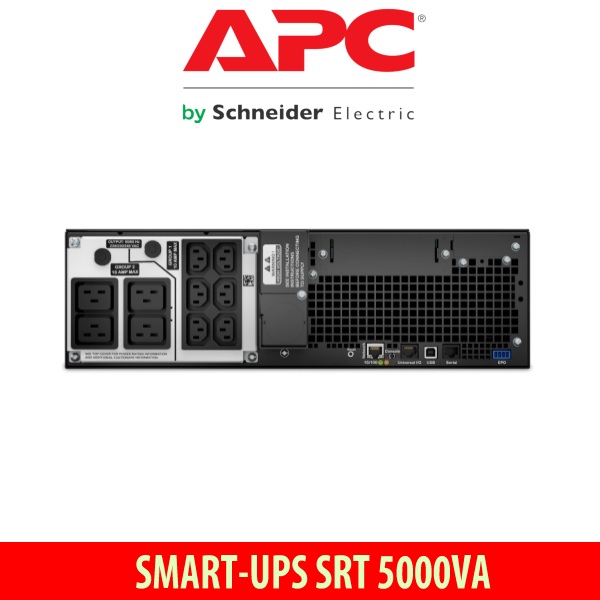

Output Connections: (6) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (4) IEC 320 C19 (Battery Backup)

Bypass: Internal Bypass (Automatic and Manual)

Nominal Input Voltage: 230V

Input Frequency: 40 – 70 Hz (auto sensing)

Input Connections: Hard Wire 3 wire (1PH+N+G)

Input Voltage range for main operations: 160 – 275V

Input voltage adjustable range for mains operation: 100 – 275 (half load)V

Other Input Voltages: 220, 240

Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules: 2

Typical recharge time: 1.5hour(s)

Nominal Battery Voltage: 192V

Expected Battery Life (years): 3 – 5

Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Audible Alarm: Audible and visible alarms prioritized by severity

Emergency Power Off (EPO): Yes

Available SmartSlot™ Interface Quantity: 1

Surge energy rating: 480Joules

Warranty: 1 Year
