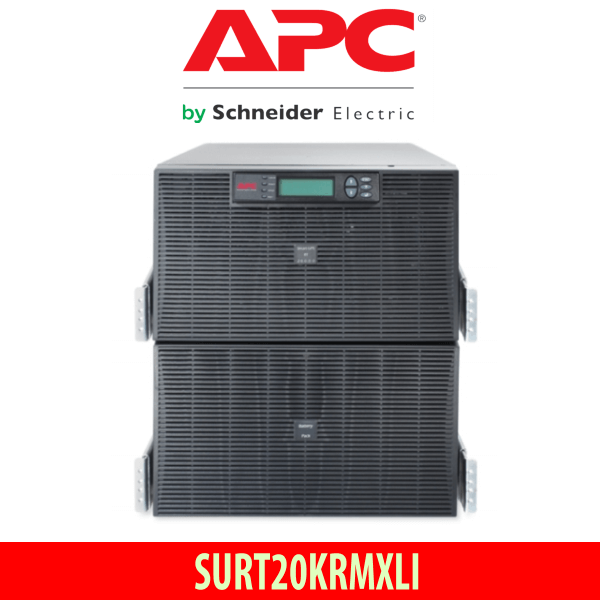

APC SURT20KRMXLI Dubai



APC SURT20KRMXLI Dubai

The APC SURT20KRMXLI Dubai is a high performance uninterruptible power supply (UPS). The UPS helps provide protection for electronic equipment from utility power blackouts, brownouts, sags, and surges, small utility power fluctuations and large disturbances.

Category:

Description

APC SURT20KRMXLI Smart UPS Dubai

APC SURT20KRMXLI Dubai offers high density, double-conversion on-line power protection with scalable runtime. It is supplied with CD with software, Rack mounting support rails, Smart UPS signaling RS-232 cable, User manual, and Web/SNMP management card. The APC SURT20KRMXLI Dubai is a high performance uninterruptible power supply (UPS). The UPS helps provide protection for electronic equipment from utility power blackouts, brownouts, sags, and surges, small utility power fluctuations and large disturbances. The UPS also provides battery backup power for connected equipment until utility power returns to safe levels or the batteries are fully discharged.

Features:

  • Dual mains input
    Increases availability by allowing the UPS to be connected to two separate power sources.
  • LCD display
    Provides schematic overview of critical data for guided operation and troubleshooting on color LCD touch-screen.
  • Manageable external batteries
    Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

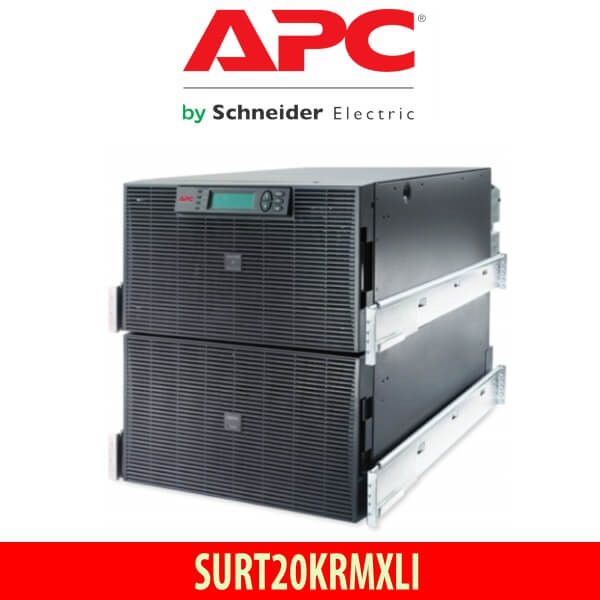

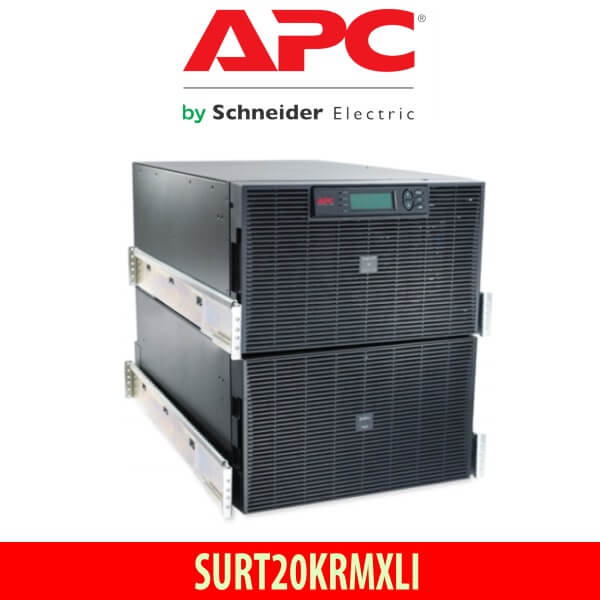

  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Removable input/output wiring tray
    Allows quick and easy installation and maintenance of the UPS.
  • Single or three-phase input wireable
    Provides flexibility for the UPS to be installed using either single or three-phase input wiring.

Technical Specs:

Run time for load

4m 53s

Max. Capacity Used

100%

Output power capacity

16.0kWatts / 20.0kVA

Rack Height

12U

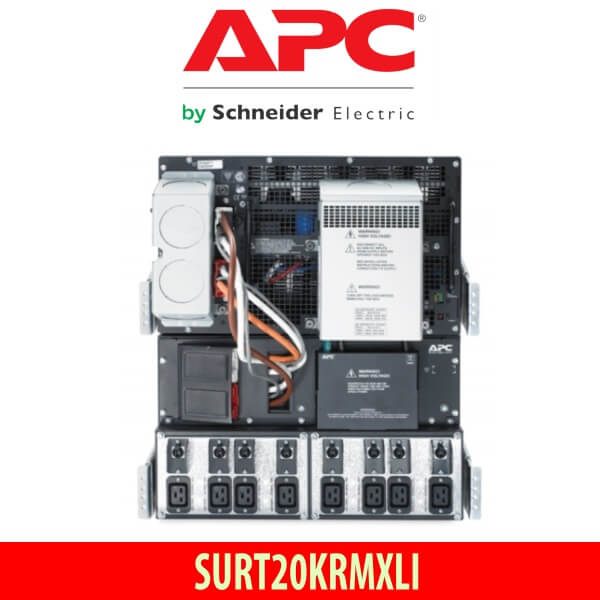

Output Connections

(8) IEC 320 C19 (Battery Backup)
(1) Hard wire 5-wire (3P + N + E) (Battery Backup)
(1) Hard wire 3-wire (H N + E) (Battery Backup)
(8) IEC 60320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)

Maximum Input Current

115.0A
