That was enough for the firewall and core switch. Not enough for the storage box. Not enough for the server running the ERP database. The UPS did its job, but the office had outgrown it. More load. More equipment. More risk sitting on the same small battery.

That is the point where buyers start looking at the APC SMX3000HV. Not because they want a bigger box. Because the old UPS only gives shutdown time, and the new requirement is controlled runtime.

For many Dubai offices, the need is simple: protect the server rack, keep network access alive, give the IT admin time to respond, and avoid a hard crash when DEWA power drops, a breaker trips, or a building has a short power event after hours.

What the APC SMX3000HV is

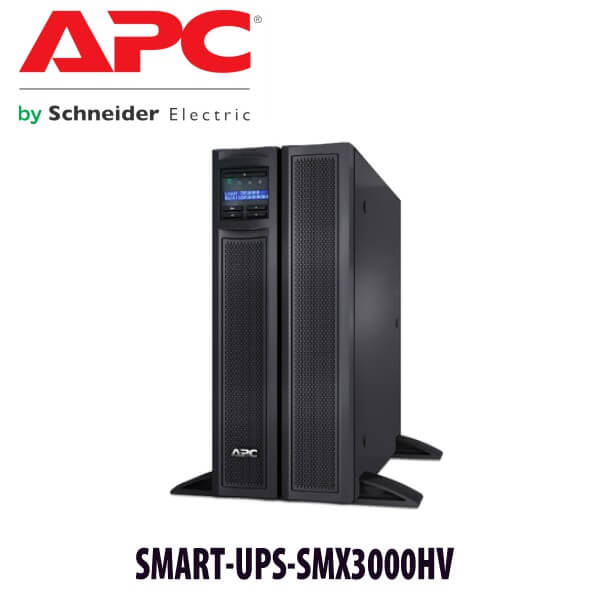

The APC SMX3000HV is a 3000VA / 2700W line interactive UPS from the APC Smart-UPS X range. It is built for IT loads that need more than a basic battery backup: server racks, network closets, storage appliances, telecom cabinets, access control panels, CCTV NVR racks, and office infrastructure that must not drop during short power events.

The Smart-UPS X range sits above the standard Smart-UPS SMT range because it supports extended runtime. That matters when the buyer does not just want two or three minutes to shut down. Some sites need 15 minutes. Some need 30. Some need enough time for a generator to start and stabilise. The SMX3000HV gives that path through compatible external battery packs.

This is not an online double conversion UPS. It is line interactive. That means it corrects voltage variation using AVR before switching to battery. In normal office power conditions, that is efficient and quiet. When power fails, the UPS transfers to battery fast enough for connected IT equipment to continue running without a crash.

Dubai’s grid is stable, but office power is not always clean at the socket. Older commercial buildings see voltage dips. High-density towers can have short disturbances when large loads switch. Free zone offices may have mixed electrical infrastructure depending on the age of the building. A line interactive UPS is useful in exactly these conditions because it keeps correcting input voltage without cycling the battery every time the voltage moves.

For a 3000VA UPS, the SMX3000HV is often chosen when the buyer has a real IT load but does not need a data centre UPS. A small server rack in Business Bay. A network cabinet in DMCC. A storage and firewall setup in Dubai Internet City. A CCTV and access control cabinet in Jebel Ali Free Zone. The load matters more than the building name.

3000VA does not mean 3000 watts

This is where many UPS purchases go wrong.

The APC SMX3000HV is rated at 3000VA and 2700W. VA is apparent power. Watts is real power. Your equipment consumes watts, so watts is the number used for sizing.

A 3000VA label sounds like it should handle 3000W. This unit does not. It handles 2700W. That is still a strong rating for a line interactive rack/tower UPS, but the difference matters when you are adding servers, switches, NAS units, firewalls, routers, monitors, and PoE loads together.

A typical office rack might have one tower or rack server at 350W, one NAS at 180W, a firewall at 40W, two switches at 120W combined, and a small NVR at 80W. That is around 770W before monitors, PoE load, or growth. The SMX3000HV handles that easily and gives room for future expansion.

A heavier rack might have two servers at 500W each, a storage unit at 300W, two PoE switches at 350W combined, firewall, router, KVM, and a few smaller devices. That can reach 1700W to 2000W quickly. The SMX3000HV still fits, but now runtime and battery pack planning become important.

A rack with blade servers, high PoE camera loads, or multiple storage shelves may exceed the sensible limit for this class. In that case, a larger online UPS from the APC SRT or SRTG range may be the correct choice.

Not sure where your load sits? List the equipment: server model, switch model, firewall model, storage model, number of PoE cameras or phones, and whether the rack has a monitor. Vector Dubai sizes the load before quoting. Guessing from the VA number is how buyers end up with a UPS that overloads during the first real outage.

Why Smart-UPS X instead of a standard Smart-UPS

The reason is runtime planning.

A standard UPS protects the load and gives shutdown time. That is enough for many offices. But some sites need more. A server needs time to close virtual machines. A storage appliance needs time to flush writes. A firewall and core switch need to stay alive while the IT team checks whether the outage is local or building-wide. A PABX system may need to keep Etisalat or du voice services active for staff during a short cut.

The APC SMX3000HV is made for that middle ground. It gives high watt capacity in a 2U rack/tower format and supports external battery expansion. You are not locked into the internal battery runtime. You can start with the UPS and add external battery capacity when the site requirement changes.

That matters in Dubai because equipment rooms change. A small rack starts with one server and a switch. Six months later it has a NAS, a second switch, an access control controller, a CCTV recorder, and a firewall upgrade. In many offices, the electrical plan does not change at the same speed as the IT load. The UPS becomes the safety margin.

Extended runtime: the real reason to choose SMX3000HV

The SMX range is built for sites where the internal battery is only the starting point. The compatible external battery pack path gives more runtime without changing the whole UPS. For SMX systems, the SMX120BP battery pack is the key related item to plan around.

This does not mean every SMX3000HV installation needs an external battery on day one. Many Dubai offices only need shutdown time. In that case, the internal battery may be enough. But if the requirement is to keep a rack alive through longer cuts, generator start delay, or repeated short failures, external battery support is the reason to buy Smart-UPS X instead of a smaller Smart-UPS model.

Runtime depends on load. A UPS at 400W behaves very differently from the same UPS at 1800W. The battery has to feed the actual watts connected, not the label on the front panel. That is why Vector Dubai asks for the load list before giving runtime promises.

For light rack loads, runtime can be long enough to ride through short outages. For heavy 2kW loads, the same battery system may only provide shutdown time unless additional packs are fitted. Dubai heat also changes the numbers. A server room held at 22°C gives better battery performance than a storage room sitting at 32°C with weak AC.

For example, a firewall, router, core switch, and NAS may draw under 500W. That is a very different design from two rack servers, a SAN, and PoE switches at 1800W. Both might be called a “server rack” by procurement. They are not the same UPS load.

The SMX3000HV works best when the site wants 2700W maximum capacity, sensible headroom around 1890W, and the option to add runtime with battery packs later. That is its place in the APC range.

SmartConnect, SmartSlot, and network monitoring

The SMX3000HV does not carry the IC suffix used on APC SmartConnect models. Treat it as a non-SmartConnect unit unless your final APC datasheet check confirms otherwise.

That does not mean it cannot be monitored. Smart-UPS X models are normally used with APC network management cards through SmartSlot. The common choice is the AP9640 network management card for SNMP monitoring, browser access, alerts, remote UPS status, and integration with IT monitoring tools.

This matters when the rack is unattended. A power event at 2AM is not useful information at 8:30AM. With network monitoring configured, the IT team can receive alerts when the UPS goes to battery, when the battery is weak, when input voltage is unstable, or when load is too high. That is the difference between a quiet failure and an event someone can act on.

For offices with one small UPS, SmartConnect may be enough. For managed server rooms, SNMP is usually the better fit. It can feed alerts into monitoring platforms, log UPS events, and support remote checks without walking into the server room.

Vector Dubai can supply the APC SMX3000HV with monitoring options, configure PowerChute shutdown, and test the system under connected load. Installation is not just rack mounting. It means the UPS is connected, loaded, checked, and set up so the protected equipment knows what to do when battery runtime drops.

Runtime in Dubai: plan for load, heat, and battery age

Runtime is not a fixed number. It changes with the connected watt load, battery condition, room temperature, and whether external battery packs are installed.

At a light rack load, the APC SMX3000HV can give enough time for short power events, controlled shutdown, or generator start delay. At a heavier load close to 2000W, runtime drops sharply. That is normal. The battery is feeding real watts, not the 3000VA label.

For Dubai installations, we size runtime with three questions. What is the real connected wattage? What must stay on? What can shut down first?

A server, NAS, firewall, core switch, and internet router may not all need the same shutdown rule. The server may need a clean shutdown at 30% battery. The firewall and switch may need to stay alive longer so remote access stays open. PowerChute settings and load grouping matter here. The UPS is only one part of the design.

Battery life is one of the reasons we do not quote runtime from a clean lab table and leave it there. A new UPS in a 22°C server room and a two-year-old UPS in a warm telecom cabinet will not behave the same way. The battery may still pass a simple front-panel check and still have less usable runtime than expected.

For planned runtime above basic shutdown time, add the SMX120BP external battery pack. For larger runtime targets, the design should be checked before ordering because the cabinet space, battery weight, charging time, and service access all matter.

Vector Dubai installs the SMX3000HV with load testing. That means we do not just power it on. We check the connected load percentage, confirm battery status, verify PowerChute shutdown where required, and explain what runtime is realistic for the equipment connected on site.

SMX3000HV vs SMX2200HV vs SRT3000RMXLI

The APC SMX3000HV sits in a useful middle position. It is stronger than a 2200VA line interactive UPS and more flexible than many standard Smart-UPS models because it supports external battery runtime. But it is not the same as an online double conversion SRT UPS.

Choose SMX3000HV when the site needs line interactive protection with high watt capacity and runtime expansion. Choose SRT3000RMXLI when the site needs online double conversion power. That difference matters in server rooms where the incoming supply is poor, where equipment is very sensitive, or where transfer time is not acceptable.

There is also the SMX3000HVNC version. The “NC” model includes network card capability as part of the package. If your IT team needs SNMP monitoring from day one, compare the SMX3000HV with the SMX3000HVNC before ordering. If you already have an APC network card or want to add one separately, the standard SMX3000HV may be enough.

Outlets, rack mounting, and display

The SMX3000HV is a 230V rack/tower UPS designed for IT power distribution. It uses IEC output sockets, including IEC C13 and IEC C19 outlet types for server and network equipment. IEC C13 is common for switches, firewalls, routers, small servers, and many storage units. IEC C19 is used for heavier equipment with higher current draw.

That outlet detail matters in the UAE. Many buyers ask for “normal plug” outlets, but server racks are normally wired with IEC leads or rack PDUs. If your equipment uses UAE three-pin plugs, tell us before delivery. We can plan the right cables, PDU, or adapter approach instead of discovering it during installation.

The 2U rack/tower format means the UPS can sit in a rack or be used as a tower with the correct orientation. Rack mounting is the cleaner choice for IT rooms. Tower use is still common in smaller offices where there is no full rack, only a network cabinet or equipment shelf.

The front LCD gives local status: input voltage, output voltage, battery charge, load level, alarms, and estimated runtime. That is useful during maintenance because the technician can see the UPS condition without logging in to software.

Replacement battery and maintenance

The replacement battery cartridge for the APC SMX3000HV is APCRBC117. Battery replacement is normally done from the front of the UPS without removing the unit from the rack, but the site should still be checked for front clearance and safe access.

In Dubai, plan battery replacement every 2–3 years for most office and server room installations. If the UPS sits in a warm cabinet, has poor airflow, or runs repeated battery events, the battery may age faster. The UPS may also start warning earlier through front-panel alarms, software alerts, or network management logs.

The replacement process is straightforward, but business sites often prefer a technician visit because the UPS is protecting live equipment. Vector Dubai can supply the APCRBC117 battery, replace it, run a self-test, check event history, and confirm the load percentage after replacement.

For sites using external runtime packs, battery maintenance must include the UPS internal battery and the attached battery pack. A weak external battery pack can reduce runtime even if the UPS front panel looks normal at first glance.

Pricing, supply, and installation in Dubai

The APC SMX3000HV is supplied with installation by Vector Dubai, an authorised APC/Schneider Electric supplier and installer operating in Dubai since 2010.

Same-day AED quotation is available by WhatsApp. The quote includes VAT breakdown, delivery, and installation scope. For multiple branches, server room upgrades, retail chains, and free zone offices, volume pricing is available for 5+ units.

Installation means the UPS is positioned, connected, tested under load, and checked for correct runtime behaviour. Where software shutdown is needed, PowerChute is configured. Where network monitoring is needed, the APC network management card can be fitted and set up.

We do not treat a 3000VA rack UPS as a courier delivery item. It protects expensive IT equipment. It needs the right cables, the right load plan, and a test before handover.

Frequently asked questions

My rack load is around 1600W. Do I need SMX3000HV or a larger UPS?

The APC SMX3000HV is rated at 2700W, so 1600W is within the sensible range. It is about 59% load. That leaves headroom for battery health and future growth. If the load is expected to move above 1900W, or if the equipment is very sensitive, we would compare it with an APC SRT online UPS before quoting.

Can the APC SMX3000HV run a server rack through a full power outage?

It depends on load and battery packs. With internal battery only, the SMX3000HV is mainly for short outages and controlled shutdown. For longer runtime, use compatible external battery packs such as SMX120BP. Send the server, switch, firewall, and storage models and we will calculate a realistic runtime target.

What is the replacement battery for APC SMX3000HV?

The replacement battery cartridge is APCRBC117. In Dubai conditions, expect around 2–3 years of service life in most office and server room environments. Heat, poor ventilation, and repeated power events can shorten that.

SMX3000HV vs SMX3000HVNC — what is the difference?

SMX3000HV is the standard 3000VA / 2700W Smart-UPS X model. SMX3000HVNC is the network-card version. Choose SMX3000HVNC if SNMP monitoring is required from the start. Choose SMX3000HV if you do not need network monitoring immediately or if the network management card will be purchased separately.

Does the SMX3000HV have SmartConnect?

No IC suffix is shown on SMX3000HV, so it should not be treated as a SmartConnect model. For remote monitoring, the usual path is SmartSlot with an APC network management card such as AP9640. That gives SNMP alerts, browser access, and UPS event logging.

Does Vector Dubai install the APC SMX3000HV on the same day?

For available stock in Dubai, same-day or next-day supply and installation may be arranged depending on schedule and site access. Installation includes connection, load check, cable review, PowerChute setup where needed, and basic handover.

Is the APC SMX3000HV covered under APC warranty in UAE?

Yes, when supplied through authorised APC/Schneider Electric channels. Vector Dubai supplies APC UPS systems with local warranty support and can coordinate warranty claims, battery replacement, and service checks in the UAE.

Will the SMX3000HV help with voltage dips in older Dubai buildings?

Yes. The SMX3000HV is line interactive, so it uses AVR to correct voltage dips and high voltage events without switching to battery each time. That is useful in older commercial buildings, high-density towers, warehouses, and some free zone offices where power at the socket is not always steady.

Who is the supplier of APC SMX3000HV in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai. We supply the APC SMX3000HV with installation, battery runtime planning, PowerChute setup, and local warranty support across the UAE.

What is the best 3000VA UPS for a server rack in Dubai?

For many office server racks, the APC SMX3000HV is a strong fit because it provides 3000VA / 2700W capacity, line interactive AVR, rack/tower 2U installation, and external battery expansion. If the rack needs zero transfer time or cleaner regenerated power, step up to APC SRT3000RMXLI online double conversion.

UAE coverage

Vector Dubai supplies and installs APC SMX3000HV UPS systems across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also support UPS installation in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, Masdar City, and mixed-use commercial towers across the UAE. Multi-site deployments can be handled under one engagement with one quotation and one technical scope.

Export from Dubai

Vector Dubai exports APC Smart-UPS systems, external battery packs, replacement batteries, and network management cards from Dubai to resellers, contractors, and business customers across the Middle East, Asia, and Africa.

We can quote APC SMX3000HV on FOB Dubai terms for Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq.

For East and Southern Africa, we support export enquiries for Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe.

For West Africa, we handle UPS export enquiries for Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast. Export documents can include commercial invoice, packing list, and certificate of origin. WhatsApp the model and quantity for an export quote.
