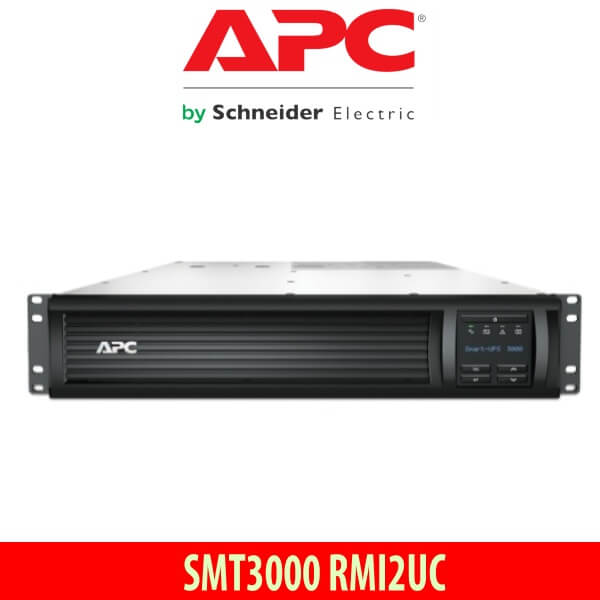

The APC SMT3000 RMI2UC Dubai  is a reliable network power protection designed for deployment in retail and open access environments.

Category:

Description

APC SMT3000 RMI2UC Smart UPS Dubai

The APC SMT3000 RMI2UC Dubai  is a reliable network power protection designed for deployment in retail and open access environments. It is supplied with a CD with software, Documentation CD, Rack mounting brackets, Rack mounting support rails, Smart UPS signaling RS-232 cable, and USB cable. The UPS offers Intelligent and efficient network power protection from entry level to scalable runtime. It is ideal UPS for servers, point-of-sale, routers, switches, hubs and others.

Features :

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intelligent Card Slot
    Customize UPS capabilities with management cards.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot
    Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • StruxureWare Data Center Expert compatible
    Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specs:

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

4 ms typical : 8 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

RBC43

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

182 Watts

Communications & Management

Interface Port(s)

USB

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Available SmartSlot Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

320Joules

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

480MM, 48.0CM

Maximum Depth

683MM, 68.3CM

Net Weight

44.28KG

Shipping weight

51.7KG

Shipping Height

254MM, 25.4CM

Shipping Width

600MM, 60.0CM

Shipping Depth

980MM, 98.0CM

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

348.0BTU/hr

Conformance

Approvals

CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
