Description

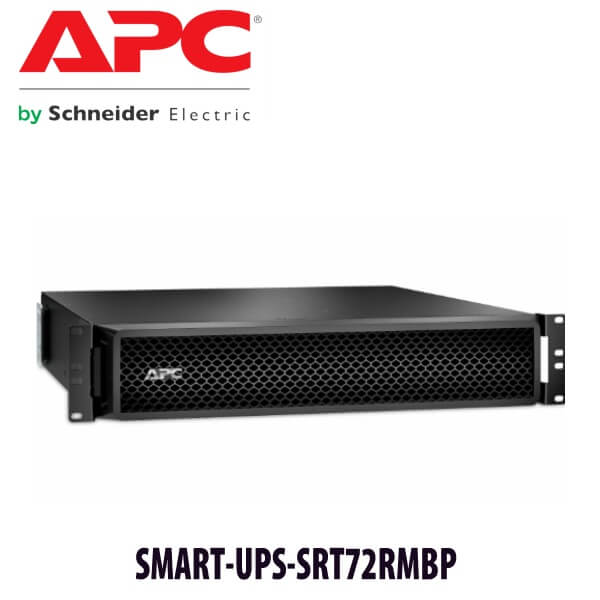

APC SRT72RMBP Dubai Rack External Battery Pack for Smart-UPS SRT2200RMXLI

That is usually when Dubai IT teams start looking for the APC SRT72RMBP. Not because the UPS failed. Because the UPS did exactly what it was designed to do — it gave enough time for clean shutdown — but the business needed more than shutdown time. A server room in Business Bay needs the firewall and core switch alive during a longer DEWA interruption. A clinic in Jumeirah needs network access while the generator starts. A warehouse in Jebel Ali Free Zone needs the access control server and cameras to keep recording through a power event.

Five minutes is enough for shutdown. It is not enough for every site. The APC SRT72RMBP is for that gap.

What the APC SRT72RMBP is

The APC SRT72RMBP is an external battery pack for compatible APC Smart-UPS SRT rack systems. In the VDS product range, it is used with the SRT2200 rack UPS family where the internal UPS battery is not enough for the required backup time.

It is not a UPS by itself. It does not have output sockets, load capacity, VA rating, or watts rating. It connects to the compatible Smart-UPS SRT unit and gives that UPS more battery capacity. The UPS still does the power conversion, monitoring, load protection, alarms, shutdown signalling, and network communication. The SRT72RMBP gives it a larger battery reserve to draw from when mains power fails.

This is an important point for procurement teams. A battery pack does not increase the UPS load capacity. If your SRT2200 rack UPS is rated for 2200VA / 1980W, adding the SRT72RMBP does not turn it into a 3000VA UPS. It still supports the same maximum connected load. What changes is time. More minutes on battery. More time for shutdown. More time for the generator to stabilise. More time for the IT admin to reach the site or log in remotely.

Why external battery packs matter in Dubai server rooms

A standard rack UPS is usually sized for two things: clean power and controlled shutdown. That is correct for many offices. When power fails, the UPS keeps the equipment running long enough for PowerChute, a network management card, or the operating system to close services and shut down safely.

But some sites cannot shut down after three or five minutes.

A firewall serving remote staff needs to stay online. A building access control server cannot drop every time the incoming supply dips. A CCTV recording server should keep recording during a short outage, especially in warehouses, clinics, retail stores, and free zone offices. A PABX or VoIP gateway connected to Etisalat or du circuits may need to stay powered so calls do not drop during an electrical event.

Dubai power is generally stable, but rack rooms still see real problems. Voltage dips in older commercial buildings. Brief power events during maintenance. Overloaded circuits in high-density towers. Generator transfer delays. Free zone electrical rooms that have been expanded over years without enough cooling in the IT cabinet. The UPS handles the power quality. The external battery pack handles the time.

VA, watts, and runtime — the part buyers mix up

Every UPS discussion has two separate numbers. VA and watts. Every external battery pack discussion has a third number: runtime.

The compatible APC SRT2200 rack UPS class is rated at 2200VA / 1980W. VA is apparent power. Watts is real power. For sizing the connected equipment, watts is the number that matters. A rack UPS rated for 1980W should not be loaded right up to 1980W in a real office. The practical sizing rule is to keep the connected load under about 70% of the UPS watt rating. For a 1980W UPS, that means planning around 1380W or lower when possible.

The SRT72RMBP does not change that 1980W limit. It does not let you add another server beyond the UPS rating. It lets the existing connected load run longer when input power is lost.

A typical Dubai network rack may draw 250W to 500W if it contains a firewall, router, fibre modem, controller, non-PoE switch, and a small NVR. That load can run much longer than a rack with two servers, a storage unit, PoE switches, and cooling fans drawing 1200W or more. Same UPS. Same external battery pack. Different runtime.

That is why Vector Dubai asks for equipment details before quoting external battery packs. We need the UPS model, connected load, runtime target, and rack location. A battery pack bought without load checking can disappoint the buyer. A battery pack specified properly does exactly what the site needs.

Where the SRT72RMBP fits best

The SRT72RMBP makes sense where the UPS capacity is already correct but the runtime is not.

A small server rack in Al Quoz with one server, one NAS, a firewall, and a switch may not need a larger UPS. It may only need more battery time. A clinic rack in Dubai Healthcare City may need the network and patient system to ride through short power events without restarting. A retail head office in Deira may need its PABX, router, and access control system live while the building engineer checks the breaker room.

In those cases, stepping up to a larger UPS may not be the cleanest answer. The load is already within the UPS watt rating. The issue is runtime. The SRT72RMBP targets that issue directly.

It also helps when shutdown is not instant. Virtual machines need time. Databases need time. Storage systems need time. A proper shutdown sequence can take longer than people expect, especially when the UPS is protecting a server, NAS, and network equipment together. More battery time gives the shutdown process space to finish without panic.

Online double conversion support without changing the UPS

The SRT family is APC’s online double conversion range. That means the UPS continuously regenerates output power through the inverter. There is no transfer delay when mains fails, because the load is already being fed from the inverter path. This is why SRT systems are used for servers, storage, telecom, medical IT equipment, and finance offices where even a short power break can cause a problem.

The SRT72RMBP supports that same operating model by adding battery capacity behind the UPS. The connected equipment still sees the same protected output from the Smart-UPS SRT. The difference is that the UPS has more stored energy available during an outage.

For Dubai server rooms, that matters because runtime is rarely just a comfort feature. It affects shutdown safety, remote access, call continuity, access control, and the ability to keep monitoring systems alive during a building power event. The SRT72RMBP is not bought for a desktop. It is bought for the rack that the business quietly depends on every day.

Supply and installation by Vector Dubai

Vector Dubai supplies and installs APC external battery packs for offices, server rooms, clinics, warehouses, hotels, schools, and free zone businesses across the UAE. We do not treat the SRT72RMBP as a courier item. External battery packs need the correct UPS match, correct rack placement, safe cabling, recognition by the UPS, and runtime testing under real load.

Our installation process checks the UPS model, confirms the connected equipment, connects the battery pack, verifies UPS detection, checks battery charge status, reviews runtime estimate, and tests the protected load. Where the UPS has network management installed, we also check alerts and shutdown settings so the extra battery time is used correctly.

For new APC UPS projects, we can specify the UPS and battery pack together. For existing racks, send a photo of the UPS rear label and the current connected load. We will confirm whether SRT72RMBP is the right battery pack or whether another SRT battery pack is required.

Runtime in Dubai: what to expect

Runtime depends on load. That is the honest answer.

An APC SRT72RMBP connected to a lightly loaded SRT2200 rack UPS will give very different backup time from the same battery pack connected to a heavily loaded rack. A firewall, router, fibre modem, access control controller, and one switch may draw 250W to 400W. A rack with servers, storage, PoE switches, and CCTV recording can draw 900W to 1400W. Same battery pack. Different result.

For Dubai projects, we do not quote runtime from a clean laboratory table and pretend that is what your rack will see. Server room temperature matters. Battery age matters. Load percentage matters. Whether the rack is in a cooled IT room or a store room beside a pantry matters. Lead-acid batteries lose runtime faster in heat. In Dubai, battery life is usually 2 to 3 years in real installations, not the 3 to 5 years buyers often expect from brochures written for cooler climates.

If the SRT72RMBP is installed in a properly cooled rack room at around 22°C to 25°C, the battery holds capacity better and runtime stays closer to expected values. If it sits in a 35°C electrical room or a closed network cabinet with poor airflow, runtime drops and the replacement cycle gets shorter. This is common in older Dubai buildings, warehouses, small clinics, and free zone offices where the network rack was added after the fit-out.

SRT72RMBP vs SRT48RMBP vs SRT96RMBP

The SRT external battery pack range is model-specific. The number in the part code matters. It is not safe to order the nearest-looking battery pack and assume the connector, voltage, and UPS support will match.

The SRT48RMBP is used with smaller SRT1000 and SRT1500 rack systems. The SRT72RMBP is for SRT2200 rack installations. The SRT96RMBP is used where the SRT2200 or SRT3000 rack family requires the matching battery pack. For larger SRT rack UPS systems, the SRT192RMBP range is the direction to check.

That is the reason we ask for the rear label photo. A buyer may say “SRT 2kVA rack UPS” on WhatsApp, but APC model names can be close enough to cause ordering mistakes. SRT2200XLI tower, SRT2200RMXLI rack, and regional variants may not use the same external battery pack. One photo prevents a wrong battery order.

Installation: what Vector Dubai checks

External battery installation is not just sliding a heavy box into a rack.

First, we confirm the UPS model and load. Then we check rack space, rack depth, cable routing, and battery placement. Battery packs are heavy, so weight distribution matters. A rack with servers at the top and battery packs at the bottom is usually safer than a rack stacked without planning. We also check that the UPS and battery pack can be serviced later without removing half the rack.

Once installed, the battery pack must be connected properly and recognised by the UPS. The UPS runtime estimate should update after charging and calibration. Where a network management card is installed, alerts should also show the correct battery status. If PowerChute or shutdown scripts are configured, the shutdown delay may need adjustment because the UPS now has more runtime available.

For sites with Etisalat or du circuits, we also look at what is actually plugged into the UPS. Sometimes the router is protected but the fibre ONT is not. Sometimes the firewall is on UPS but the PoE switch powering access points is on raw mains. That defeats the point. During installation, we trace the load and make sure the equipment that needs runtime is actually connected to protected power.

When not to buy the SRT72RMBP

Do not buy the SRT72RMBP if the real problem is UPS overload. If the connected equipment is already too close to the UPS watt limit, an external battery pack will not fix that. The UPS will still be overloaded. In that case, the correct move is to reduce the load or step up to a larger UPS.

Do not buy it if the UPS has a replace-battery warning and the existing internal battery has failed. The external pack is not a cure for a failed UPS battery. Replace the failed internal battery first, then add runtime if required.

Do not buy it if your UPS model is not compatible. APC external battery packs are not universal. The wrong pack can mean wrong voltage, wrong connector, no UPS detection, or no support from APC warranty channels.

Buy the SRT72RMBP when the UPS is healthy, the UPS capacity is correct, and the only missing piece is battery time.

Pricing, supply, and installation in Dubai

APC SRT72RMBP price in Dubai is quoted in AED on request. We do not display fixed pricing because stock status, project quantity, delivery location, and installation requirements can change the final quote. Procurement teams receive a formal quotation with VAT breakdown, delivery, and installation scope.

Vector Dubai supplies and installs APC UPS systems and battery packs across Dubai and the UAE. We have worked with office managers, IT admins, contractors, clinics, warehouses, hotels, retail groups, and free zone companies since 2010. For single-site requirements, send the UPS label photo and runtime target. For multi-site projects, send the site list and quantities. We can quote one rack or a full branch rollout.

Frequently asked questions

What UPS models does the APC SRT72RMBP fit?

The SRT72RMBP is for compatible APC Smart-UPS SRT rack systems, especially SRT2200 rack installations. It is not a universal battery pack for every APC SRT UPS. Send the exact UPS model number from the rear label before ordering so we can confirm compatibility.

Does SRT72RMBP increase the VA or watts of my UPS?

No. It increases runtime, not capacity. If your SRT2200 rack UPS is rated at 2200VA / 1980W, that load limit stays the same. The SRT72RMBP only gives the UPS more battery energy during a mains failure.

My equipment is around 1200W. Do I need SRT72RMBP or a larger UPS?

A 1200W load is within the working range of a 1980W SRT2200 UPS, but it is high enough that runtime will be shorter than a light network load. If the UPS is healthy and not overloaded, SRT72RMBP may be the right runtime upgrade. If your load is growing toward the UPS limit, we may recommend stepping up to a larger SRT UPS instead.

Can this run a server through a full power outage?

It depends on the outage duration and server load. The SRT72RMBP can extend runtime for compatible SRT rack UPS systems, but it is not a generator replacement. For long outages, the correct design may be UPS plus generator, or UPS sized with multiple external battery packs where supported.

What is the replacement battery for the SRT72RMBP?

The replacement battery arrangement must be confirmed from the APC datasheet and serial label before quoting. Some APC external battery packs use serviceable internal battery modules, while others are replaced as pack assemblies depending on model and support status. Send us the battery pack label and we will confirm the correct APC part.

SRT72RMBP vs SRT96RMBP — what is the difference?

They are different SRT rack external battery packs for different UPS compatibility groups. SRT72RMBP is used for compatible SRT2200 rack systems. SRT96RMBP is used with compatible SRT2200 / SRT3000 rack systems. Do not choose by size or photo. Confirm the UPS model first.

Does Vector Dubai install the SRT72RMBP on the same day?

For available stock in Dubai, same-day or next-day installation can usually be arranged depending on schedule and site access. WhatsApp the UPS model photo, location, and required runtime. We confirm stock, compatibility, and installation timing before quoting.

Is this covered under APC warranty in UAE?

APC warranty support in the UAE depends on product status, serial number, and authorised supply channel. Vector Dubai supplies APC/Schneider Electric products with local warranty coordination and can assist with claim handling where the product is eligible.

Why does Dubai heat reduce battery runtime?

UPS batteries are sensitive to temperature. In a cooled server room, capacity lasts longer. In a warm electrical room, closed cabinet, or warehouse rack, battery ageing speeds up and runtime drops. In Dubai, 2 to 3 years is a realistic battery life expectation for many UPS battery installations.

Who is the supplier of APC SRT72RMBP in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APC SRT external battery packs with compatibility checking, installation, testing, and warranty coordination. We have supplied and installed APC UPS systems across the UAE since 2010.

What is the best battery pack for extending SRT2200 rack UPS runtime in Dubai?

For compatible SRT2200 rack UPS installations, the APC SRT72RMBP is the battery pack to check first. The final answer depends on the exact UPS model and runtime target. For heavier loads or different SRT models, SRT96RMBP or another SRT external battery pack may be required.

UAE coverage

Vector Dubai supplies and installs APC SRT72RMBP battery packs across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also support businesses in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, Masdar City, Dubai Healthcare City, Dubai Silicon Oasis, and other UAE business districts. Multi-site UPS and battery pack deployments can be handled under one quote.

Export from Dubai

Vector Dubai exports APC UPS systems, external battery packs, replacement batteries, and network management cards from Dubai to businesses, resellers, and project contractors across the Middle East, Asia, and Africa. FOB Dubai pricing is available on request for APC SRT72RMBP and related SRT battery pack models.

We supply export customers in Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq. In East and Southern Africa, we support Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe. In West Africa, we export to Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast.

Export documentation can include commercial invoice, packing list, and certificate of origin where required. WhatsApp the model, quantity, destination country, and required shipping terms for an export quote.
