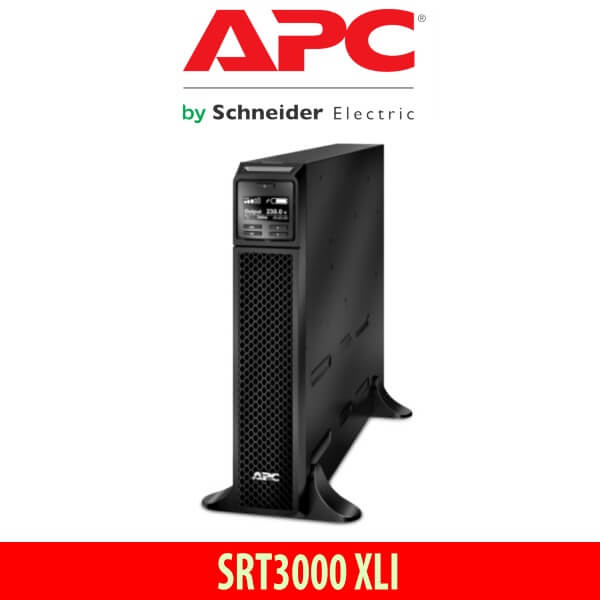

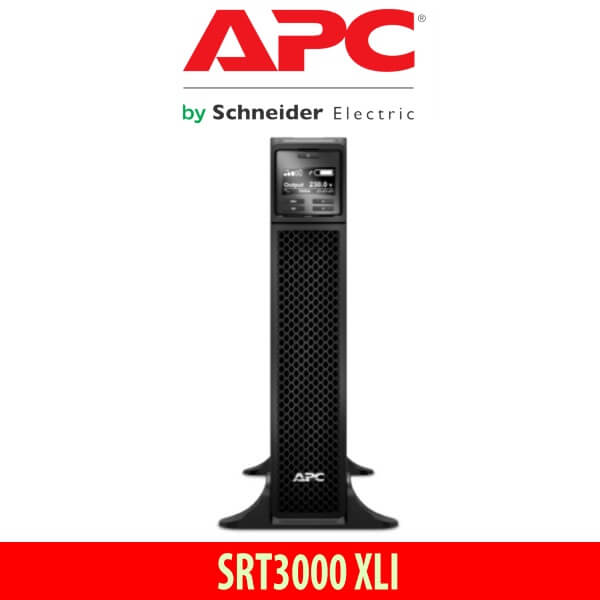

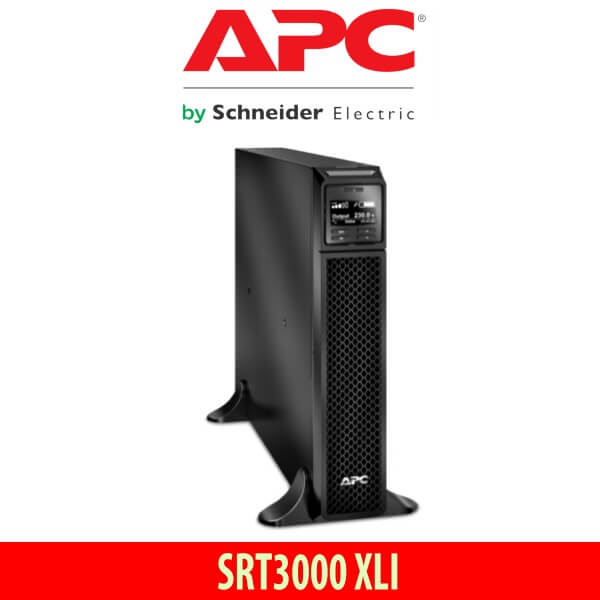

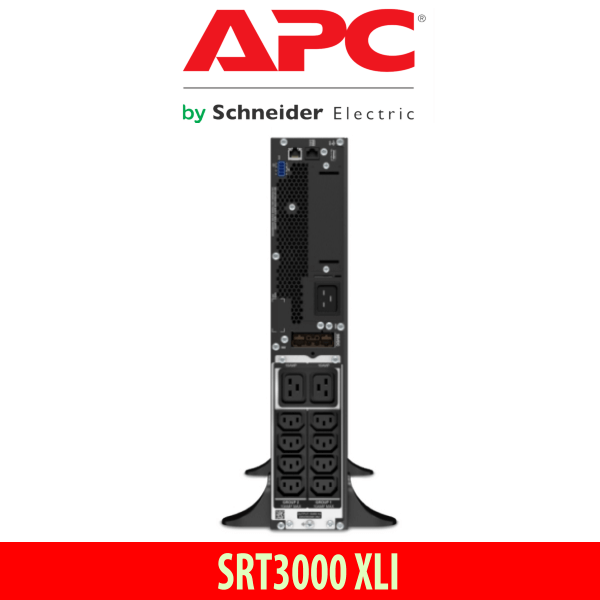

APC SRT3000 XLI Dubai



APC SRT3000 XLI Dubai

The APC SRT3000 XLI Dubai is your companion when it comes to protecting your servers, storage and networks hardware. With its worth of power it is trusted to protect critical data and equipment from power problems.

Category:

Description

APC SRT3000 XLI Smart UPS Dubai

The APC SRT3000 XLI Dubai are an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options. It boasts of high density, double-conversion on-line power protection with scalable runtime. APC SRT3000 XLI Dubai includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

The APC SRT3000 XLI Dubai is your companion when it comes to protecting your servers, storage and networks hardware. With its worth of power it is trusted to protect critical data and equipment from power problems.

Features :

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Technical Specifications

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Number of Power Cords

3

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Nominal Battery Voltage

96 V

Replacement Battery

APCRBC152

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

168 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

340Joules

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

85MM, 8.5CM

Maximum Depth

635MM, 63.5CM

Net Weight

31.3KG

Shipping weight

36.74KG

Shipping Height

246MM, 24.6CM

Shipping Width

599MM, 59.9CM

Shipping Depth

871MM, 87.1CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

703.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
