APC Easy UPS 3S E3SUPS20KHB Dubai 20kVA 3-Phase UPS

The server room did not go down for an hour. It went down for seconds.

That was enough. The database server restarted, the access control panel froze, the CCTV recorder missed footage, and the ERP users spent the morning asking why the system was “slow”. Nobody in the office called it a power failure. The lights barely flickered. But the UPS log told the real story: a voltage event hit the incoming supply, the connected IT load dropped, and the room came back in the wrong order.

This is where a 20kVA 3-phase UPS belongs. Not under a desk. Not beside a printer. In an electrical room, server room, clinic plant room, data cabinet zone, or facility distribution point where one power event can stop many systems at once.

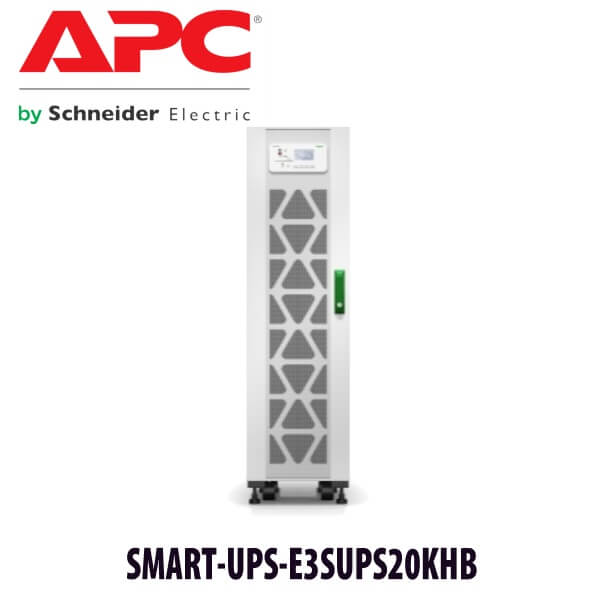

APC E3SUPS20KHB 20kVA UPS for Dubai server rooms and facility loads

The APC E3SUPS20KHB is a 20kVA Easy UPS 3S unit from Schneider Electric / APC. It is built for 3-phase business power protection, where the connected load is larger than a single rack UPS and where hardwired installation is the normal approach.

Typical sites in Dubai include small and mid-size server rooms, IT rooms in free zone offices, security control rooms, access control and CCTV head-end rooms, medical equipment rooms, retail back-office infrastructure, hospitality IT rooms, and building systems that cannot be allowed to crash during voltage dips or short outages.

This is not a plug-and-play UPS. The E3SUPS20KHB is a 3-phase electrical system. It needs proper input protection, output distribution, load calculation, ventilation, battery planning, commissioning, and handover testing. Vector Dubai supplies and installs APC 3-phase UPS systems across Dubai and the UAE, with the unit connected, tested under load, and handed over with the installation checked against the actual site requirement.

What online double conversion means

The E3SUPS20KHB sits in the online UPS category. Online double conversion is the topology used when the load is too important to accept even a short transfer delay.

A standby UPS waits for the power to fail, then switches to battery. A line interactive UPS corrects voltage dips and spikes using AVR, then switches to battery when the input goes outside limits. Both have a transfer event, even if it is only a few milliseconds.

An online double conversion UPS works differently. Incoming AC power is converted to DC, then converted back to AC for the load. The connected equipment is supplied from the inverter path all the time. When the mains supply fails, the battery continues feeding that DC bus and the output stays present. No transfer gap. No restart caused by the UPS changing modes. The load keeps seeing controlled output power.

Dubai’s electrical supply is generally stable, but business sites still see real issues. Older commercial buildings can have voltage dips when lifts, HVAC, pumps, or neighbouring loads start. Some warehouses and free zone offices have distribution boards that were added in stages over many years. Construction activity near a building can also create short disturbances. The problem is not only a full DEWA outage. It is the two-second event that makes one controller reboot and another controller stay on.

That is why 3-phase UPS sizing needs more than a product code. The site matters. The load type matters. The cooling matters. The electrical room matters. A 20kVA UPS installed in a hot, unventilated space beside a dusty riser cabinet will not behave like the same unit installed in a clean, cooled electrical room with clear access and proper cable termination.

20kVA does not mean “connect anything up to 20kVA”

UPS buyers often ask for “20kVA” because the consultant, contractor, or IT team mentioned that number. That is a starting point, not the whole sizing exercise.

Every UPS has two ratings: VA and watts. VA is apparent power. Watts, or kilowatts at this size, is the real power your equipment consumes. Servers, switches, storage, CCTV head-end systems, access control panels, telecom racks, and medical devices all consume real power. The kW figure is what decides whether the UPS can actually carry the load.

For smaller UPS pages, the difference is easy to explain. A 1000VA UPS may only support 600W. A buyer who connects 850W to that unit will overload it, even though the VA number looked large enough. The same logic applies to 20kVA UPS systems. The kVA looks like the headline number, but the real load must be checked in kW before order confirmation.

The 70% rule is not a sales trick. It is how you avoid buying a UPS that looks correct on paper but spends its life near overload. A server room grows. A CCTV system gets more cameras. The access control contractor adds controllers. The IT team adds a second switch, a firewall cluster, a storage shelf, or a new rack. By year two, the “just enough” UPS has become the weak point.

For procurement teams, the practical question is this: what is connected now, what will be added in the next 12 to 24 months, and how long does the site need to stay on battery? A clean shutdown requirement is different from a 30-minute runtime requirement. A server room with generator backup is different from a clinic that needs the UPS to carry equipment until staff can move patients or close procedures safely.

Where the E3SUPS20KHB fits

The APC E3SUPS20KHB is not for a single desktop, a small router, or a normal office printer area. It belongs where the UPS is part of the building’s electrical and IT design.

A common Dubai use case is a server room in a 50 to 150 user office. The load may include rack servers, storage, firewall, core switches, Etisalat or du routers, PABX equipment, CCTV recorder storage, access control panels, and environmental monitoring. One UPS protects the room, while output distribution feeds the racks or selected circuits.

Another use case is a facility system room. The equipment may not look like IT, but the business effect of a shutdown is just as serious. Security control systems, turnstile controllers, gate barriers, BMS panels, nurse call controllers, and networked building systems all need stable power. When they restart in the wrong sequence, the building team spends hours clearing faults.

For healthcare and laboratory sites, 20kVA 3-phase power protection is often selected for equipment that must ride through short power events without interruption. Exact suitability depends on the device load, manufacturer requirements, earthing arrangement, leakage current considerations, and runtime target. Vector Dubai reviews those details before proposing the final UPS and battery configuration.

Site checks before installing a 20kVA 3-phase UPS

The right UPS model is only one part of the job. A 20kVA UPS installation also needs a site check. This is where many online listings fail the buyer. They show a product name and a price request form, but they do not ask whether the electrical room is ready.

Vector Dubai checks the incoming supply, breaker rating, cable route, output distribution, earthing, available space, ventilation, ambient temperature, and access for delivery. For server rooms, we also check the connected IT load and the shutdown plan. A UPS is not useful if it keeps the hardware alive but no one has configured the servers to shut down safely when the battery reaches the agreed threshold.

Heat matters in Dubai. Battery life in a properly cooled room can be very different from battery life in a 35°C or 40°C electrical area. In non-cooled spaces, batteries age faster and runtime drops earlier than many buyers expect. For Dubai projects, battery planning should assume local temperature reality, not a perfect lab room.

Dust also matters. Electrical rooms near parking areas, warehouse shutters, or plant spaces often collect fine dust. That affects filters, fans, heat dissipation, and maintenance intervals. A 20kVA UPS should be installed where it can breathe, where technicians can reach it, and where the battery area is not exposed to unnecessary heat.

Supply and installation by Vector Dubai

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai. We have supplied and installed APC UPS systems for offices, server rooms, retail chains, clinics, warehouses, and free zone businesses since 2010.

For the E3SUPS20KHB, installation means more than delivery. The UPS is positioned, connected by qualified technicians, checked against the site load, tested, and handed over with the operating status explained. Where shutdown software, network monitoring, or integration with facility monitoring is required, that scope is discussed before quotation so the buyer knows what is included.

Need help deciding between a single 20kVA UPS, a larger 30kVA unit, or smaller rack UPS units split by rack? Start with the load list. Send the panel schedule, rack equipment list, or connected system details. Vector Dubai will size the UPS against the real requirement and recommend the correct APC option from the UPS system Dubai range.

Runtime in Dubai: size it from the load, not the brochure

Runtime is the question that decides whether a 20kVA UPS is enough, too small, or wrongly configured.

For many server rooms, the target is not “run all night”. The target is clean ride-through for short voltage events, then safe shutdown if the outage continues. For other sites, the UPS must carry the load until the building generator starts and stabilises. A clinic, security room, or network operations area may need a longer battery window. Same UPS size. Different battery requirement.

Dubai temperature changes the battery conversation. Batteries age faster in hot electrical rooms. A runtime figure measured at 25°C does not tell the whole story if the UPS is installed in a room that reaches 32°C, 35°C, or more during summer. In server rooms with proper cooling, battery performance stays closer to expected values. In non-cooled service areas, battery life and runtime drop earlier.

A proper runtime quote needs four numbers: connected load in kW, required runtime in minutes, room temperature, and whether generator backup exists. Send those numbers on WhatsApp and Vector Dubai will quote the APC E3SUPS20KHB with the correct battery setup instead of guessing from the model name.

E3SUPS15KH vs E3SUPS20KHB vs E3SUPS30KHB

The Easy UPS 3S range includes 10kVA, 15kVA, 20kVA, and 30kVA models. The right choice depends on the real connected load, not only the consultant schedule.

Choose the E3SUPS15KH if the actual load is modest and future growth is limited. Choose the E3SUPS20KHB when the connected systems are already beyond small rack UPS territory and need centralised 3-phase protection. Step up to E3SUPS30KHB when the load is growing, when additional racks are planned, or when running near the edge would create risk.

There is also a design choice: one central 20kVA UPS or several smaller rack UPS units. A central UPS can protect a room through distribution circuits. Smaller rack UPS units can isolate loads by rack or department. Vector Dubai will recommend the cleaner design based on cable routes, criticality, and how your IT team wants shutdown handled.

Connections, bypass, and monitoring

The APC E3SUPS20KHB is a hardwired 3-phase UPS class product, so outlet type is not the same discussion as a small tower UPS with IEC C13 or C19 sockets. The installation normally connects through electrical cabling, breakers, and output distribution. Final input/output arrangement must be confirmed against the APC datasheet and the site electrical design before quotation.

Bypass planning is important. During service, battery replacement, or fault isolation, the site may need a way to transfer the load safely. Some projects use internal bypass functions. Others require an external maintenance bypass panel. The right answer depends on the electrical design, critical load, and service policy. Vector Dubai confirms this during the site review instead of assuming one layout fits every building.

Monitoring should also be decided early. For IT teams, UPS status should not live only on the front display. Server room managers often need email alerts, SNMP monitoring, dry contact alarms, or integration with building management systems. The compatible APC network and communication options for E3SUPS20KHB should be verified from the APC datasheet before final order.

Pricing, supply, and installation in Dubai

APC E3SUPS20KHB pricing in Dubai is quoted in AED after confirming the UPS configuration and site scope. For 3-phase UPS projects, the product price alone is not enough. Cable length, breakers, bypass, battery configuration, delivery access, installation timing, shutdown window, and commissioning all affect the final quote.

Vector Dubai provides a same-day AED quote where the requirement is clear. For project sites, we may ask for a panel photo, single-line diagram, load schedule, room photo, or site visit. The quote includes VAT breakdown, delivery, installation scope, and commissioning notes so procurement can compare properly.

Installation means the UPS is delivered, positioned, connected, checked, tested under load, and handed over. For IT rooms, we can also coordinate shutdown timing with the IT team so servers, switches, Etisalat or du routers, PABX systems, and security systems are protected without avoidable downtime.

Frequently asked questions

My connected load is around 12kW. Do I need the E3SUPS20KHB or a 30kVA UPS?

The E3SUPS20KHB may fit if the verified kW rating and phase balance support the load with safe headroom. For a 12kW live load, we would check growth plans, starting behaviour, runtime target, and whether the room may add another rack or storage system. If growth is likely, E3SUPS30KHB may be the safer long-term option.

Can the APC E3SUPS20KHB run a server room through a full power outage?

It depends on the connected load and battery configuration. A 20kVA UPS can be set up for short ride-through and clean shutdown, or longer runtime if the battery system supports it. For full outage runtime, Vector Dubai needs the load in kW and required minutes before quoting.

What is the replacement battery for E3SUPS20KHB?

The exact battery module or battery string must be confirmed from the APC datasheet and supplied configuration. For Dubai sites, battery replacement should also consider room temperature and age. Many UPS batteries in warm rooms need replacement after 2–3 years.

E3SUPS20KHB vs E3SUPS30KHB — what is the difference?

The E3SUPS20KHB is the 20kVA option. E3SUPS30KHB is the larger 30kVA option for heavier loads or future expansion. The right choice depends on real kW load, phase balance, runtime target, and expansion plans. A room already close to the safe operating range should step up instead of running a 20kVA UPS near its limit.

Does Vector Dubai install the APC E3SUPS20KHB on the same day?

For a 3-phase 20kVA UPS, same-day quotation is possible, but installation depends on site readiness, access, electrical works, and shutdown window. If the breaker, cable route, space, and load details are ready, installation can be scheduled quickly. Send site photos and load details on WhatsApp.

Is this covered under APC warranty in the UAE?

Yes, APC / Schneider Electric UAE warranty applies when supplied through authorised channels and installed correctly. Warranty terms, battery coverage, and service scope should be confirmed at quote stage for the exact E3SUPS20KHB configuration.

Our Dubai office has voltage dips but not many power cuts. Do we still need online UPS?

For large 3-phase loads, online double conversion is often selected because it gives controlled output power and zero transfer time. Voltage dips in older Dubai buildings, warehouses, and free zone offices can still restart sensitive systems even when the lights stay on. The UPS protects against those short events, not only long outages.

Who is the supplier of APC E3SUPS20KHB in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai. We supply the APC E3SUPS20KHB with installation, commissioning, warranty support, and AED quotations for procurement teams, contractors, consultants, and facility managers.

What is the best 20kVA UPS for a server room in Dubai?

For many mid-size server rooms, the APC Easy UPS 3S E3SUPS20KHB is a strong 20kVA option because it is a 3-phase online UPS designed for business infrastructure. The final answer depends on real kW load, required runtime, bypass requirement, and cooling. For heavier growth, E3SUPS30KHB may be better.

Can Vector Dubai export APC E3SUPS20KHB outside the UAE?

Yes. Vector Dubai exports APC UPS systems from Dubai on request. FOB Dubai pricing, commercial invoice, packing list, and export documentation can be provided for approved destinations. Share country, quantity, and required configuration on WhatsApp for an export quote.

UAE coverage

Vector Dubai supplies and installs the APC E3SUPS20KHB across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also cover free zones and business districts including DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, and Masdar City. Multi-site UPS projects can be handled under one engagement with one quotation and one installation plan.

Export from Dubai

Vector Dubai supplies APC UPS systems for export from Dubai to businesses, resellers, contractors, and system integrators across the Middle East, Asia, and Africa. The APC E3SUPS20KHB can be quoted for export with FOB Dubai pricing, packing details, commercial invoice, packing list, and certificate of origin where required.

Middle East and Asia export enquiries include Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq.

East and Southern Africa export enquiries include Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe.

West Africa export enquiries include Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast. Send the model, quantity, destination country, and required delivery terms for an export quotation.
