Description

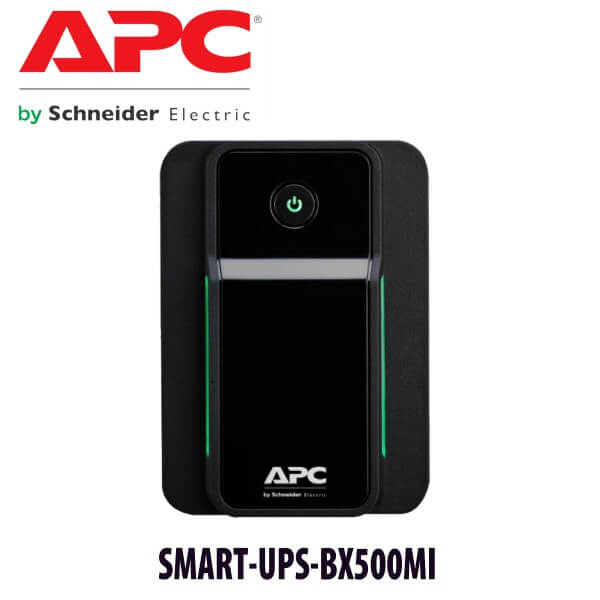

APC Back-UPS BX500MI Dubai 500VA 300W Line Interactive UPS

The router goes off first. Then the card machine drops. The CCTV recorder beeps once and shuts down. The desktop at reception restarts while an invoice is still open.

It was not a long power cut. Maybe two seconds. Maybe less. But that was enough to stop the front desk, freeze the POS software, and make the office manager ask the same question every Dubai business asks after the first bad shutdown: why didn’t we put a small UPS on this equipment earlier?

The APC BX500MI is built for that exact job. Not a server room. Not a full rack. Not a 30-minute backup system. A small, practical UPS for everyday office equipment that should not lose power every time the building supply dips.

What the APC BX500MI is

The APC BX500MI is a 500VA / 300W line interactive Back-UPS from APC by Schneider Electric. It is designed for small loads: routers, ONT boxes, desktop PCs, POS counters, CCTV DVR/NVR units, small switches, attendance machines, and basic office electronics.

Line interactive means the BX500MI does more than wait for a complete power failure. It has automatic voltage regulation, usually called AVR. When the incoming voltage drops or rises outside the safe range, the UPS corrects it without switching to battery. That matters in Dubai offices where the power is mostly stable, but short dips still happen in older commercial buildings, busy towers, warehouses, and some free zone facilities.

A basic standby UPS only reacts when mains power fails. The BX500MI sits one level above that. It watches the incoming supply and corrects low or high voltage before your connected equipment feels it. When power does fail, it switches to battery fast enough for normal office electronics, routers, POS systems, and DVRs to keep running.

For small business use, that is the value. The BX500MI keeps the internet link alive long enough for staff to finish a payment, save work, shut down a PC, or keep a CCTV recorder online through a short outage.

500VA does not mean 500 watts

This is where many UPS purchases go wrong.

The APC BX500MI is rated at 500VA / 300W. VA and watts are not the same thing. VA is the apparent power rating of the UPS. Watts is the real usable power your equipment can draw. For buying and sizing, watts is the number that matters.

The BX500MI can support up to 300 watts. But you should not load any UPS to the limit every day. A safer working rule is to use about 70% of the watt rating. For this model, that means keeping the connected load around 210 watts or less.

That 70% margin gives the UPS room to handle startup draw, battery ageing, and small changes in connected equipment later. It also keeps the unit cooler, which matters in Dubai. A UPS placed under a reception desk, near a window, or inside a cabinet with poor airflow will run warmer than the test conditions used in a datasheet.

Here is what 210 watts looks like in real office use.

A router, fibre ONT, and small 8-port network switch may use 25 to 60 watts together. The BX500MI is comfortable here. A CCTV DVR or NVR with a router and switch may sit around 50 to 120 watts, depending on the recorder and whether cameras are powered separately. A basic desktop PC with a monitor can be 120 to 220 watts, depending on the processor, screen size, and what software is running. A POS counter with a terminal, barcode scanner, receipt printer, and network device may be 80 to 180 watts, but the printer should be checked because some thermal printers draw more during printing.

The BX500MI is not for laser printers, photocopiers, gaming PCs, rack servers, large PoE switches, or multiple desktop computers on one UPS. Those loads either draw too much power or create heavy startup demand. For those cases, step up to the APC BX950MI, APC BX1200MI, or a Smart-UPS model depending on the equipment.

Where the BX500MI fits in a Dubai office

The BX500MI is a small-office protection unit. It makes sense when the load is important, but not large.

At a reception desk, it can keep the router, card machine, and desktop alive during a short interruption. In a small retail shop, it can protect the POS counter so a payment does not fail halfway through. In a villa office or small clinic, it can keep Etisalat or du internet equipment powered long enough for a call, file upload, or remote session to finish. In a CCTV setup, it can keep a DVR or NVR recording through brief power events instead of leaving a gap in footage.

It is also useful for PABX and VoIP equipment where a short outage can drop active calls. Many small offices in Dubai still have a mix of router, switch, PABX, and desktop equipment sitting on one shelf. The BX500MI gives that shelf basic battery backup and voltage correction in one unit.

Do not treat the BX500MI as a long-runtime UPS. At this size, the goal is controlled continuity for short events and safe shutdown for longer ones. If the requirement is to keep an office running for one hour, this is the wrong product. That needs a larger UPS, a different battery design, or a model built for extended runtime.

Line interactive UPS with AVR

Dubai power is reliable compared with many markets, but office equipment still sees small problems. A lift motor starts in the building. Construction work nearby causes a momentary dip. A floor distribution board is loaded unevenly. A server room AC restarts after maintenance. Most of these events do not look dramatic. The lights may not even go out. But sensitive electronics can still restart, freeze, or log an error.

The BX500MI uses automatic voltage regulation to correct undervoltage and overvoltage without using the battery every time. That is important because batteries have a limited service life. If a UPS switches to battery for every small dip, the battery ages faster. AVR lets the unit handle many voltage events while keeping the battery ready for actual outages.

This is the main difference between an entry-level standby UPS and the Back-UPS BX range. Standby is cheaper and fine for basic home equipment. Line interactive is the better fit for small offices, POS systems, network devices, and CCTV recorders because those loads should not be exposed to daily voltage movement.

The BX500MI is still not the same class as an APC Smart-UPS. It does not have SmartConnect cloud monitoring. It does not have SmartSlot for a network management card. It does not provide the same level of monitoring or control as SMT or SMC models. That is fine. It is not meant to. This unit is for local protection of small equipment where simple, reliable backup is the requirement.

IEC outlets — check your plugs before installation

The APC BX500MI uses IEC outlets. This is common on APC UPS models supplied for IT and office equipment. Many routers, switches, DVRs, monitors, and PCs can connect using standard IEC power leads. Some equipment in UAE offices uses a three-pin UK-style plug, so the cable arrangement must be checked before installation.

Vector Dubai supplies and installs APC UPS systems with the right cable plan. That may mean IEC C13 power leads, adapters, or a cleaner layout for the equipment shelf. The point is simple: the UPS should be connected properly, not balanced under a desk with mixed extension leads and overloaded sockets.

For a small UPS like the BX500MI, cable planning matters because buyers often place it in cramped areas: reception counters, CCTV cabinets, cashier desks, back-office shelves, and small network corners. We check what is actually being powered, confirm the load, connect the correct devices, and avoid plugging in equipment that should never go on this UPS, such as printers or heaters.

BX500MI versus cheaper entry UPS models

The APC BX500MI sits above the basic Easy UPS BV and BVX models in the buying path. The reason to choose BX500MI is line interactive protection with AVR in a compact 500VA / 300W size.

If the equipment is a single home router or a very low-cost desktop setup, an entry-level standby UPS may be enough. If the equipment is used for business — card payments, invoices, CCTV recording, internet access, PABX calls, or reception work — the BX500MI is the better starting point because voltage correction is part of the design.

That does not mean every office should buy this model. Capacity still decides. If the load is more than 210 watts in normal use, do not force it onto the BX500MI. Choose the next size. The UPS system Dubai page explains the wider APC range, and Vector Dubai can size the unit from an equipment list before you place the order.

The safest buying method is simple: list every device that will connect to the UPS, check the wattage, then choose a model where normal load stays below 70% of the UPS watt rating. For the BX500MI, that working number is around 210 watts. For anything above that, step up.

Runtime in Dubai: what to expect from a 500VA UPS

The APC BX500MI is a short-runtime UPS. It is not designed to keep equipment running for hours. Its job is to keep small loads alive through brief power events and give you time to shut down properly when the outage continues.

Runtime depends on the actual watt load connected to the UPS. A router and fibre ONT may run much longer than a desktop PC and monitor because the load is smaller. A CCTV recorder with several accessories will sit somewhere in the middle. Once the load moves closer to 300W, runtime drops quickly.

In normal Dubai use, expect the BX500MI to support low-power network equipment for several minutes during a power cut. For a desktop PC and monitor, think in terms of safe shutdown, not extended work time. If the user keeps typing, opens files, and waits until the alarm is almost finished, the battery may not have enough time left for a clean shutdown. The better method is simple: when the UPS transfers to battery, save work immediately and shut down if the power does not return.

Temperature changes the result. UPS batteries are tested under controlled conditions. Dubai offices are not always controlled. A UPS installed in a cooled office may get better battery life than one kept inside a closed CCTV cabinet, above a ceiling, or near a sunny glass wall. Heat shortens runtime and reduces battery life. In Dubai, 2 to 3 years is a practical battery replacement cycle for small UPS units, even if the brochure suggests longer life in cooler climates.

For CCTV, networking, and POS use, we usually place the BX500MI where it has airflow and where staff can hear the alarm. Not buried under cartons. Not trapped inside a hot cabinet with the DVR. A small change in placement can add months to battery life.

BX500MI, BX950MI, or BX1200MI?

The BX500MI is the smallest Back-UPS BX model in this group. It makes sense when the load is light and known.

Choose the BX500MI for a router, ONT, small switch, single POS terminal, CCTV DVR/NVR with a light accessory load, or one basic desktop PC where the goal is save-and-shutdown. It gives you 500VA / 300W, and the sensible working load is around 210W using the 70% rule.

Choose the APC BX950MI when the setup has more devices or when the desktop PC is not light. The BX950MI gives 950VA / 520W, so it has more room for a PC, monitor, router, and small network load. It is the safer choice when the buyer is not completely sure what the PC draws.

Choose the APC BX1200MI when the load includes a heavier workstation, larger CCTV recorder, multiple network devices, or a POS counter with more accessories. The BX1200MI is still a Back-UPS model, but with 1200VA / 650W capacity.

Do not use the BX500MI for rack servers, NAS systems with business data, large PoE switches, or equipment that needs managed shutdown software and monitoring. For those cases, move to Smart-UPS C, Smart-UPS SMT, or online UPS depending on the load. The cost difference is smaller than the cost of a hard shutdown on a server.

Outlets, cabling, and daily use

The BX500MI is supplied with IEC outlets. That is good for IT equipment, but it needs the right cables. Many PCs, monitors, DVRs, and network devices can use IEC leads directly. Some office equipment in the UAE has standard three-pin plugs, and those need the correct adapter or cable plan.

This is one reason installation matters. A UPS is not only a box under the table. The connected load must be checked. The cables must be right. High-draw equipment must be kept out. Laser printers, photocopiers, kettles, heaters, and shredders should never be connected to the BX500MI. They can overload the UPS or drain the battery almost at once.

For day-to-day use, the front indicators and alarm tell staff what is happening. When power is normal, the UPS charges and protects the connected load. When input voltage moves outside the safe range, AVR corrects it. When mains power fails, the UPS switches to battery and sounds an alarm. Staff should save work, finish the transaction if it is a POS counter, and shut down if the outage continues.

Pricing, supply, and installation in Dubai

Vector Dubai supplies and installs the APC BX500MI across Dubai and the rest of the UAE. We are an authorised APC/Schneider Electric supplier and installer, active in Dubai since 2010.

Price is quoted in AED on request. We do not publish fixed prices because stock, project quantity, delivery location, and installation scope can change the final quote. For procurement teams, we provide a formal quotation with VAT breakdown, delivery details, and model number clearly shown.

Installation is part of the service. We connect the UPS, check the equipment load, confirm the outlet and cable arrangement, test the unit under load, and explain what should and should not be connected. For CCTV, POS, router, PABX, and small office setups, this avoids the common mistake of plugging everything nearby into the UPS and overloading it on day one.

For offices with several branches, we can quote BX500MI units in quantity and install across multiple sites. Multi-site work can be handled under one engagement, with one quote and one delivery plan.

Frequently asked questions

Is the APC BX500MI enough for a desktop PC?

Yes, for a basic desktop PC and monitor if the total load stays within the UPS rating. The BX500MI is 500VA / 300W, but we recommend keeping normal load around 210W using the 70% rule. For a heavier PC, larger monitor, or uncertain load, choose BX950MI or BX1200MI.

Can I connect a laser printer to the BX500MI?

No. Laser printers and photocopiers draw high power when heating and printing. They can overload a small UPS. Keep printers on normal mains power or use a properly sized power protection plan.

Is BX500MI good for a router and Etisalat or du internet box?

Yes. A router, fibre ONT, and small switch are usually a light load. The BX500MI is a good fit for keeping internet equipment running through short power cuts and voltage dips.

Can the BX500MI protect a CCTV DVR or NVR?

Yes, if the recorder and connected accessories are within the watt limit. It is commonly used for DVR/NVR backup in small offices, shops, and villas. If cameras are powered through a PoE switch, the PoE load must be calculated before selecting the UPS.

How long will the BX500MI battery last in Dubai?

For battery service life, expect around 2 to 3 years in typical Dubai conditions. Heat shortens battery life. A unit kept in a cooled office will usually do better than one placed in a hot cabinet or near a window.

Does the BX500MI have SmartConnect?

No. The BX500MI does not have APC SmartConnect cloud monitoring. SmartConnect is found on selected Smart-UPS models with the IC suffix, such as SMC1000IC and SMT750IC. For a small router, POS, or desktop load, local UPS protection is usually enough.

What is the difference between BX500MI and BX500CI?

BX500CI is an older discontinued model. BX500MI is the current replacement in the Back-UPS BX range. If you are replacing an old BX500CI, the BX500MI is the correct model to consider.

Does Vector Dubai install the BX500MI?

Yes. Vector Dubai supplies and installs APC UPS systems. For BX500MI installation, we connect the unit, check load, arrange suitable IEC cabling, test on battery, and explain the alarm and shutdown process.

Can I export APC BX500MI from Dubai?

Yes. Vector Dubai can quote APC UPS systems for export from Dubai. We support FOB Dubai orders with export documentation for resellers, contractors, and business buyers outside the UAE.

UAE coverage

Vector Dubai supplies and installs APC BX500MI UPS systems across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also cover major business areas and free zones including DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, and Masdar City. For companies with branches in different emirates, we can handle sizing, delivery, installation, and testing under one project.

Export from Dubai

Vector Dubai exports APC UPS systems from Dubai to business buyers, resellers, system integrators, and project contractors. We can quote the BX500MI as a single model or as part of a mixed APC UPS order.

Export is available on FOB Dubai terms with commercial invoice, packing list, and certificate of origin where required. Full Schneider Electric warranty documentation is supplied with the shipment.

We support export enquiries to Saudi Arabia, Oman, Bahrain, Qatar, Kuwait, Iraq, Jordan, Pakistan, Sri Lanka, Bangladesh, Maldives, Kazakhstan, Azerbaijan, Tajikistan, Uzbekistan, Turkmenistan, and Kyrgyzstan.

We also supply to East and Southern Africa including Egypt, Kenya, Ethiopia, Uganda, Tanzania, Rwanda, Djibouti, Sudan, Zambia, Mozambique, Zimbabwe, Malawi, Mauritius, Madagascar, Burundi, Comoros, and Angola.

For West Africa, we quote APC UPS export orders to Ghana, Nigeria, Senegal, Ivory Coast, Gambia, Liberia, Mali, Mauritania, and Burkina Faso. Send the model, quantity, destination country, and required delivery terms for an AED quote from Dubai.
