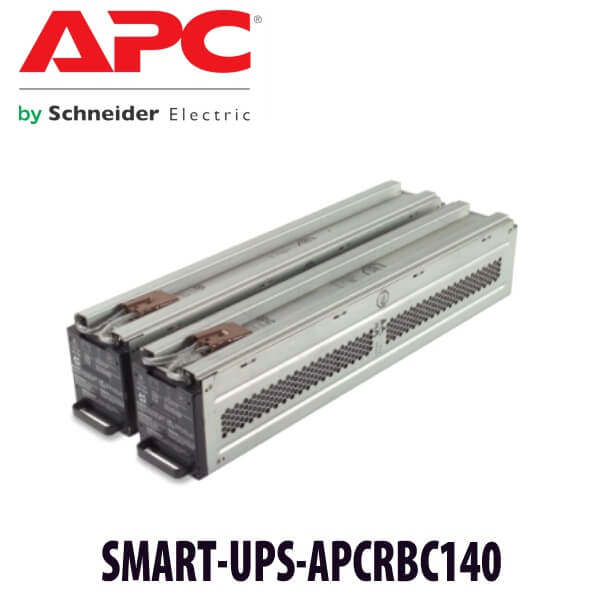

APC APCRBC140 Battery Cartridge Dubai For Smart-UPS SRT 5kVA to 10kVA

The UPS is still running. The load is still protected. But the battery light is flashing, the LCD is showing a battery warning, or PowerChute has logged a failed self-test.

That warning is easy to ignore for a few days. In a Dubai server room, it should not be ignored for a few weeks.

The APC APCRBC140 is the battery cartridge used in selected APC Smart-UPS SRT 5kVA, 6kVA, 8kVA, and 10kVA online UPS systems. These are not desktop UPS units sitting under a desk. They protect server racks, storage systems, firewalls, core switches, CCTV NVRs, access control servers, PABX systems, and business applications that are expected to stay clean during a power event.

When the APCRBC140 reaches end of life, the UPS may still pass power from DEWA to the connected load. That does not mean the site is protected. It means the UPS has become a power conditioner with weak battery backup. The next outage, voltage dip, breaker trip, or generator transfer is when the problem becomes visible.

What the APCRBC140 is

The APCRBC140 is an APC battery cartridge for higher-capacity Smart-UPS SRT systems. It is used with APC SRT5K, SRT6K, SRT8K, and SRT10K UPS models. These UPS systems are online double conversion units, which means they continuously regenerate incoming power and supply the connected equipment from the inverter.

That matters because the battery in an SRT UPS is not a side feature. It is part of the UPS power path. In normal operation, the UPS uses online double conversion to clean the incoming AC power, regulate output, and isolate the load from utility instability. When the incoming supply fails or drops outside acceptable limits, the battery supports the inverter without the transfer delay found in lower UPS classes.

In plain words: SRT units are used where a 2 to 4 millisecond transfer time is not acceptable. Server rooms. Medical equipment rooms. Finance offices. Network racks. High-value IT loads in DIFC, DMCC, Jebel Ali Free Zone, Dubai Internet City, Abu Dhabi, and multi-branch UAE sites.

Which APC UPS models use APCRBC140?

APCRBC140 is used with APC Smart-UPS SRT 5kVA to 10kVA systems. For VDS product pages, treat this cartridge as fitting the SRT5K, SRT6K, SRT8K, and SRT10K range.

How to know the APCRBC140 needs attention

Most APC SRT systems give clear battery warnings before total failure. The front display may show a replace-battery message. PowerChute may report a failed self-test. The network management card may send an email alert. In some sites, the only visible symptom is reduced estimated runtime after a self-test or a short power event.

A battery warning does not always mean the UPS has failed. It means the UPS has detected that the battery cartridge can no longer support the expected load and runtime. The unit may keep supplying output power while mains power is present. That is why some offices delay action. The risk is hidden until the next power event.

Common signs include a replace-battery LED, failed self-test, runtime lower than expected, audible alarm, old battery installation date, swollen battery casing, heat smell from the battery compartment, or NMC alerts after a scheduled test. In Dubai, battery age alone is often enough reason to check. A cartridge installed three years ago in a warm server room is already near end of service life.

Why Dubai heat changes the battery conversation

Battery pages often talk like every UPS lives in a 20°C lab. Dubai does not work that way.

A server room in Business Bay with stable AC is one environment. A network cabinet in a Jebel Ali warehouse office is another. A rack in a retail branch store where the AC is turned down after closing is another. The same APCRBC140 cartridge can age differently in each location.

High ambient temperature increases internal battery stress. The result is shorter service life, faster capacity loss, and less runtime during the exact moment the UPS is needed. In a cooled IT room, the warning may arrive gradually. In a hot rack, the decline can be faster. This is why Vector Dubai checks both the battery and the room condition during service. A new cartridge in the same overheated cabinet will repeat the same problem.

For Dubai, Abu Dhabi, Sharjah, and free zone offices, the practical planning number is simple: inspect UPS batteries yearly after the first year and expect replacement around year two or three. For sites running 24/7 loads, do not wait for the alarm to become permanent.

APCRBC140 and runtime: what changes after battery service?

The APCRBC140 does not increase the UPS rating. A 5kVA UPS remains 5kVA. A 10kVA UPS remains 10kVA. What the new cartridge restores is battery capacity, runtime accuracy, and the UPS system’s ability to support the connected load during battery operation.

This point matters for procurement teams. Buying an APCRBC140 is not an upgrade from 5kVA to 6kVA, or from 8kVA to 10kVA. It is battery maintenance for an existing compatible SRT UPS. If your connected load has grown since the UPS was installed — extra servers, storage, switches, CCTV, access control, or PABX hardware — the battery change is the right time to check UPS load percentage.

The 70% rule still applies to the UPS, even though this page is for a battery cartridge. Keep the connected load below 70% of the UPS real watt rating where possible. That headroom gives better runtime, reduces stress during battery operation, and leaves room for normal business growth. A UPS running close to 100% load may pass normal power, but runtime will be short and overload risk is higher during a fault.

Supply and installation by Vector Dubai

Vector Dubai supplies and installs APC APCRBC140 battery cartridges for compatible Smart-UPS SRT systems across Dubai and the UAE. Installation is not just sliding the battery into the UPS and walking away. The UPS has to be checked before and after the change.

For a live IT site, our technician checks the UPS model, visible alarm, battery age, input and output status, load percentage, bypass condition, and available access around the rack. After the battery cartridge is installed, the UPS is checked for alarm clearance, charging status, runtime estimate, and self-test result where appropriate.

For server rooms, we also look at the practical site details buyers care about but product listings ignore. Is the rack packed too tightly? Is the UPS pulling hot exhaust air from another device? Is the room AC stable after office hours? Is the NMC sending alerts to the right email address? Are Etisalat or du routers, firewalls, switches, storage, and application servers all on the protected load?

That is the difference between buying a battery cartridge and maintaining power protection. One is a box. The other is a working UPS system that can carry the load when the building supply drops.

APCRBC140 service procedure in Dubai

The APCRBC140 is serviceable on compatible APC Smart-UPS SRT systems, but the process should be handled with the UPS model, load condition, and site setup in mind. A 5kVA to 10kVA online UPS may be protecting business systems that cannot be switched off casually. Server racks, storage arrays, firewall clusters, CCTV recording, access control, and PABX systems all need a planned handover.

Before touching the battery bay, Vector Dubai checks the UPS front panel, active alarms, load percentage, input status, bypass status, and whether the UPS is part of a rack installation with other powered equipment. If the UPS has a network management card, the event log is reviewed where access is available. That tells us whether the battery alarm is recent, repeated, temperature-related, or linked to a failed self-test.

During installation, the correct APCRBC140 cartridge is fitted, seated, and checked. After that, the UPS must show normal battery detection and charging. A self-test may be run depending on site condition and current load. The runtime estimate should also be reviewed after the unit has had time to read the new battery condition. For offices in Dubai, this check matters because many UPS systems have had extra load added since the original installation.

A battery cartridge change is also the right time to check the UPS load. If the SRT unit was originally installed for two servers and now carries four servers, a storage appliance, a PoE switch, Etisalat or du router, firewall, and access control controller, the battery may be new but the runtime may still be too short. Battery health and UPS sizing are separate issues.

Battery life: why 2 to 3 years is the practical number in UAE sites

APC battery life ratings are usually based on controlled operating conditions. Real UAE sites are different. A cooled server room in DIFC behaves differently from a wall-mounted network cabinet in a warehouse office, a retail rack in a mall back room, or an electrical room in an older commercial building.

Heat is the main reason UPS batteries age faster here. A room that sits near 25°C most of the day is manageable. A cabinet that reaches 35°C or more after office hours will shorten battery life. At 45°C ambient in a non-cooled space, the battery is under heavy stress even when no outage has happened. The UPS may still show normal operation until the next self-test exposes the weak capacity.

For APCRBC140 in Dubai, plan battery inspection yearly and budget around a 2 to 3 year service cycle. Some sites will get more. Some will get less. The difference is usually cooling, load level, cleanliness around the rack, and whether the UPS is sitting in the path of hot exhaust air.

This is why Vector Dubai does not treat APCRBC140 as a simple parts sale. We check the environment because the same heat problem can damage the next cartridge too. Clean battery power depends on the cartridge, the UPS, the load, and the room.

APCRBC140 versus external runtime packs

APCRBC140 restores the internal battery cartridge for compatible APC SRT systems. It is not an external runtime pack. That distinction matters when procurement teams ask for “more backup time.”

If the existing UPS used to provide 10 minutes and now provides only 2 minutes, the APCRBC140 may bring the unit back to normal battery condition. If the business now requires 30 minutes or 60 minutes because shutdown takes longer, an external battery pack or a different UPS design may be needed. The battery cartridge fixes battery condition. It does not change the original UPS capacity.

For SRT 5kVA, 6kVA, 8kVA, and 10kVA sites, runtime calculation should be based on real watts, not only VA. A lightly loaded SRT unit will run longer than a heavily loaded one. A UPS at 35% load gives more useful runtime than the same UPS at 85% load. That is why we ask for the connected equipment list or the UPS load percentage before confirming the battery plan.

Decision guide: service the battery, add runtime, or replace the UPS?

Choose APCRBC140 if your APC Smart-UPS SRT 5kVA to 10kVA unit is otherwise healthy and the issue is battery age, failed self-test, replace-battery warning, or reduced runtime. This is the normal maintenance path for a working UPS.

Choose an external battery pack calculation if the UPS is healthy but the runtime target has changed. For example, a server room that previously needed only clean shutdown may now need longer runtime because the business added storage, virtual hosts, remote access, CCTV, or access control systems.

Consider a new UPS if the SRT unit is old, overloaded, physically damaged, repeatedly alarming after battery service, or no longer matched to the site load. For 5kVA and above, it is better to review the full rack load than keep replacing parts around a UPS that is no longer the right size.

Vector Dubai can check the existing unit and advise whether APCRBC140 is enough. If the right answer is a UPS upgrade, we will say so before you spend money on a battery cartridge that does not solve the site issue.

Pricing, supply, and installation

APC APCRBC140 pricing in Dubai depends on stock, quantity, installation location, and whether the job is a single UPS or a multi-site battery service. Vector Dubai provides same-day AED quotes with VAT breakdown and delivery included. We do not publish fixed AED prices because APC stock and project quantities can change.

For one UPS, we quote the APCRBC140 battery cartridge, delivery, and installation. For multiple racks or branch offices, we can quote a planned battery service covering several UPS systems under one job. This is common for retail chains, clinics, warehouses, hospitality groups, and UAE offices with mixed Dubai, Sharjah, Abu Dhabi, and free zone locations.

Installation includes model verification, battery cartridge fitting, alarm check, charging check, load review, and old battery handling. For managed IT rooms, we can also review NMC alerts, PowerChute shutdown settings, and rack cooling condition during the same visit.

Frequently asked questions

Which UPS models does APCRBC140 fit?

APCRBC140 is used with APC Smart-UPS SRT 5kVA, 6kVA, 8kVA, and 10kVA systems. Vector Dubai checks the exact UPS model number before supply because SRT tower, rack, and extended-runtime setups can look similar inside a rack.

My UPS is showing a battery warning. Do I need APCRBC140 or a new UPS?

If the UPS is a compatible APC SRT 5kVA to 10kVA model and the only issue is battery age, failed self-test, or reduced runtime, APCRBC140 is usually the correct service item. If the UPS is overloaded, damaged, or still alarming after battery service, the full UPS should be checked.

Can APCRBC140 run my server room through a full power outage?

APCRBC140 restores battery condition for the UPS. Runtime depends on the UPS model, connected load in watts, battery age, and any external battery packs installed. For long outages, the site needs a runtime calculation, not just a battery cartridge quote.

How long does APCRBC140 last in Dubai?

Plan around 2 to 3 years in typical Dubai conditions. A well-cooled server room may get longer life. A hot rack, warehouse office, or IT closet with weak AC may see battery warnings earlier.

APCRBC140 vs external battery pack — what is the difference?

APCRBC140 is the internal battery cartridge for compatible APC SRT units. An external battery pack is added when the site needs longer runtime. The cartridge restores normal battery health; external packs extend backup time.

Does Vector Dubai install APCRBC140 on the same day?

For available stock in Dubai, same-day or next-day service can often be arranged depending on schedule and site access. Send the UPS model number, location, and battery warning photo on WhatsApp for confirmation.

Is APCRBC140 covered under APC warranty in UAE?

APC battery cartridges supplied through authorised channels carry Schneider Electric warranty terms for the UAE. Vector Dubai provides supply records and supports local warranty coordination for eligible products.

My Dubai office has voltage dips but no long outages. Does the battery still matter?

Yes. APC SRT systems are online double conversion UPS units. During input problems, breaker trips, or generator transfers, the battery supports the inverter. A weak APCRBC140 cartridge reduces the UPS system’s ability to protect the load during those events.

Who is the supplier of APC APCRBC140 in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APCRBC140 battery cartridges with installation, UPS checks, and support for APC Smart-UPS SRT systems across all seven emirates.

What is the best battery cartridge for APC SRT 5kVA to 10kVA UPS systems in Dubai?

For compatible APC Smart-UPS SRT 5kVA, 6kVA, 8kVA, and 10kVA systems, APCRBC140 is the correct APC battery cartridge. The exact fit should be confirmed using the UPS model number before ordering.
