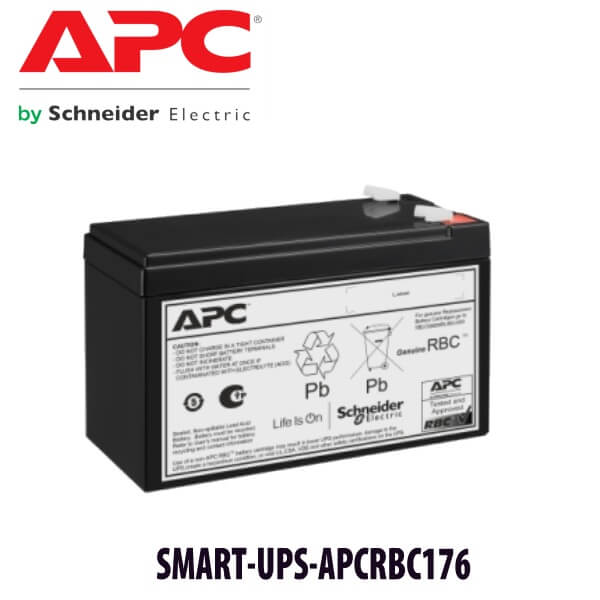

APC APCRBC176 Dubai Replacement Battery Cartridge

The battery light starts flashing on the UPS. The server is still running. The switch is still online. Staff keep working.

But the warning is not cosmetic.

A weak UPS battery usually gives you a small window before the problem becomes urgent. Maybe two weeks. Maybe three. In Dubai, if the UPS is sitting in a warm electrical room or a rack with poor airflow, that window can be shorter. The next voltage dip or DEWA interruption may be the moment the unit tries to transfer to battery and cannot hold the load.

That is when the APC APCRBC176 replacement battery cartridge matters. It restores battery backup inside compatible APC Smart-UPS 2200VA units without replacing the full UPS.

What the APC APCRBC176 is

The APC APCRBC176 is a replacement battery cartridge for selected APC Smart-UPS 2200VA models. It is used when the UPS battery has reached end of life, when the front panel shows a replace-battery warning, or when runtime has dropped below the level needed for a clean shutdown.

This is not a separate external battery pack. It does not extend runtime beyond the original UPS design. It replaces the internal battery set so the UPS can return to normal backup performance.

For Dubai offices, retail branches, server rooms, PABX cabinets, security rooms, and free zone IT racks, that difference matters. A UPS with a failed battery may still pass power in normal mode. The connected equipment looks protected. But when incoming power drops, the battery is the part that decides whether your server shuts down cleanly or cuts off hard.

Compatible APC UPS models

APCRBC176 fits these APC Smart-UPS models:

The common mistake is assuming all APC Smart-UPS 2200VA units share one battery. They do not. Rack models, older SUA models, SRT online models, and tower SMT models can use different cartridges. APCRBC176 is for the SMT2200IC and SMT2200C family.

Need the full UPS instead of the battery? See the APC SMT2200IC Smart-UPS page. For UPS sizing and model selection across offices, server rooms, CCTV, PABX, and networking, start from our UPS system Dubai hub.

What happens when the battery is weak?

A UPS can look normal while the battery is already failing. The screen is on. The load percentage is visible. The server keeps running. That is because the UPS is passing mains power through automatic voltage regulation. The problem only shows up when the UPS has to carry the load from battery.

When APCRBC176 reaches end of life, you may see one or more of these symptoms:

• Replace battery warning on the UPS display
• Battery LED or alarm after self-test
• Runtime dropping from several minutes to one or two minutes
• UPS switching off quickly during a power cut
• SmartConnect alert for battery health on supported units
• PowerChute warning from the connected server
• Old battery date code showing more than 2 to 3 years in Dubai service

Why Dubai batteries age faster

UPS batteries do not like heat. Dubai makes that hard.

In a clean, cooled server room, an APC UPS battery can often give around 3 years of service. In a small electrical closet with weak ventilation, above a ceiling, behind a retail POS counter, or inside a rack where hot air is trapped, the same battery may age faster. The UPS may still charge it, but the available runtime drops. That is why a unit can pass a light test and still fail under real load.

We see this often in older commercial buildings in Deira, Bur Dubai, Al Quoz, and Sharjah industrial areas. We also see it in high-density towers and free zones where the IT cabinet is placed wherever space was available, not where cooling was designed. Etisalat and du routers, firewalls, switches, and PABX systems end up sharing a tight cabinet. The UPS battery sits at the bottom, soaking up heat every day.

For Dubai conditions, plan APCRBC176 replacement every 2 to 3 years. Waiting until the UPS fails during a power event is cheaper for one day and more expensive when the connected server or network shuts down hard.

APCRBC176 replacement procedure

Battery replacement on compatible APC Smart-UPS models is normally a serviceable procedure. The goal is simple: remove the old battery cartridge, install the new APCRBC176, let the UPS detect it, then run a self-test so the unit confirms battery health.

For offices that cannot risk downtime, Vector Dubai handles this as an installation job, not a box delivery. We check the UPS model, confirm the connected load, inspect the old battery condition, replace the cartridge, run the UPS self-test, and verify that the battery alarm has cleared.

1. Confirm the UPS model is SMT2200IC or SMT2200C.
2. Check current load percentage and connected equipment.
3. Plan replacement timing so servers, switches, and storage are not exposed during the swap.
4. Open the UPS battery access panel.
5. Disconnect and remove the old cartridge carefully.
6. Install the new APC APCRBC176 cartridge.
7. Reconnect the battery lead and close the panel.
8. Run a UPS self-test from the front panel, PowerChute, or SmartConnect where available.
9. Check estimated runtime and battery status.
10. Record the replacement date for the next service cycle.

The date record is important. Three years later, nobody remembers when the last battery was fitted. A simple label on the UPS front panel or inside the rack saves guesswork during the next warning.

Runtime after replacing APCRBC176

A new APCRBC176 brings the compatible UPS back close to its original battery condition. It does not create extra runtime beyond what the SMT2200IC or SMT2200C was designed to deliver. The actual runtime still depends on load.

A lightly loaded 2200VA Smart-UPS protecting a firewall, Etisalat or du router, 24-port switch, and small PABX may run long enough for a short power event. A heavier load with a server, storage, PoE switch, and monitor will get far less runtime. Same UPS. Same battery. Different wattage.

After installation, we check the UPS load percentage and estimated runtime. This is where many battery jobs uncover a second problem. The old UPS was not only showing a weak battery; it was also carrying too much equipment. Over the years, someone added a PoE switch. Then a firewall. Then a NAS. Then a second monitor for the server console. The UPS never changed, but the load did.

That is why Vector Dubai treats APCRBC176 replacement as a small power audit. We want to know whether the UPS is ready for the next voltage dip in an older building, a breaker trip in a server room, or a late-night utility event when nobody is standing near the rack.

APCRBC176 vs replacing the full UPS

If the SMT2200IC or SMT2200C is healthy, replacing the battery cartridge is usually the right move. The UPS electronics, display, AVR, communication ports, and output circuits can continue working for years when the battery is maintained on schedule.

Replace the full UPS only when the unit itself has a fault, the load has grown beyond its rating, the sockets or communication ports are damaged, or the business now needs features the old unit does not provide. A battery warning by itself is not a reason to throw away a working APC Smart-UPS.

For buyers comparing options, the related model is the APC SMT2200IC Smart-UPS. If your current UPS is too small for the load, the answer is not another APCRBC176. The answer is a correctly sized UPS, fitted and tested under the actual equipment load.

Supply and installation in Dubai

Vector Dubai supplies and installs APC APCRBC176 replacement battery cartridges for offices, server rooms, retail branches, clinics, warehouses, hotels, schools, and free zone businesses across the UAE. We have handled APC UPS systems in Dubai since 2010, including small branch UPS units, rack systems, Smart-UPS replacements, battery refresh jobs, and multi-site rollouts.

Installation is not just placing a battery next to the UPS. We confirm the UPS model, isolate the risk, replace the cartridge, check the display, run the self-test, confirm battery status, and look at the connected load. For SmartConnect units, we also check whether the alert has cleared. For PowerChute-managed servers, we verify that the shutdown software still sees the UPS correctly.

This matters when the UPS protects a live server, CCTV recorder, access control controller, PABX system, firewall, or branch network. The job should end with a working UPS, not with a box left at reception.

Frequently asked questions

Does APCRBC176 fit my APC SMT2200IC?

Yes. APCRBC176 is listed for APC SMT2200IC. Before ordering, check the model label on the UPS rear panel or send us a photo. The model number matters because different APC 2200VA units can use different replacement batteries.

Does APCRBC176 fit APC SMT2200C?

Yes. APCRBC176 is listed for APC SMT2200C. If your UPS is an older SMT, SUA, SRT, or rack model with a similar capacity, do not assume fitment. Confirm the exact part number first.

My UPS is 2200VA. Can I use APCRBC176?

Only if the UPS model is SMT2200IC or SMT2200C. “2200VA” is the capacity, not the battery part number. APC has several 2200VA UPS models across different series, and they do not all use APCRBC176.

Will APCRBC176 give longer runtime than the original battery?

No. APCRBC176 restores the UPS close to original battery condition. Runtime still depends on connected watt load. It is a replacement cartridge, not an external runtime battery pack.

How long does an APCRBC176 battery last in Dubai?

Plan for 2 to 3 years in typical Dubai conditions. A cooled server room gives the battery a better life. A warm electrical closet, warehouse office, or rack with poor airflow can shorten it. Heat is the main reason UPS batteries age faster here.

Can Vector Dubai replace APCRBC176 on the same day?

For available stock and Dubai locations, same-day or next-day replacement can usually be arranged depending on schedule. Send the UPS model, location, and a photo of the battery warning on WhatsApp for a quote in AED.

Do I need to shut down the UPS before replacing the battery?

It depends on the site risk and the connected equipment. Some Smart-UPS battery swaps can be planned without a full equipment shutdown, but critical servers, storage, and network equipment should not be exposed casually. Vector Dubai checks the load and decides the safest method before replacement.

Will APCRBC176 clear the replace-battery alarm?

Yes, when the alarm is caused by end-of-life battery condition and the UPS is otherwise healthy. After fitting APCRBC176, run a self-test and confirm the alarm clears. If the warning remains, the UPS may have another fault or may need battery date/status reset through its management interface.

Who is the supplier of APC APCRBC176 in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APC APCRBC176 replacement batteries with installation, UPS self-test, battery alarm check, and AED quotation for procurement teams. Vector Dubai has supplied and installed APC UPS systems across the UAE since 2010.

What is the best replacement battery for SMT2200IC in Dubai?

Use APC APCRBC176 for SMT2200IC. It is the correct APC replacement battery cartridge for that UPS model. In Dubai, also check cooling, connected load, and battery age. A new battery helps only when the UPS is correctly sized and the battery is not being cooked inside a hot cabinet.

Can Vector Dubai export APCRBC176 outside the UAE?

Yes. Vector Dubai supplies APC UPS batteries and replacement cartridges for export from Dubai. FOB Dubai pricing is available for resellers, project contractors, and IT buyers. Export documentation can be prepared with the shipment.

UAE coverage

Vector Dubai supplies and installs APC APCRBC176 replacement battery cartridges across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We also support businesses in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, and Masdar City. For multi-site replacement jobs, one quote can cover several offices, branches, warehouses, or retail locations.

Export from Dubai

Vector Dubai exports APC UPS systems and APC replacement batteries from Dubai to businesses, resellers, and system integrators across the Middle East, Asia, and Africa. FOB Dubai pricing is available for APCRBC176 and other APC replacement battery cartridges, subject to stock and shipping rules for batteries.

We supply to Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq across the Middle East and Asia.

For East and Southern Africa, we support buyers in Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe.

For West Africa, we export to Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast. Send the model, quantity, destination country, and required documents on WhatsApp for an export quote.
