Description

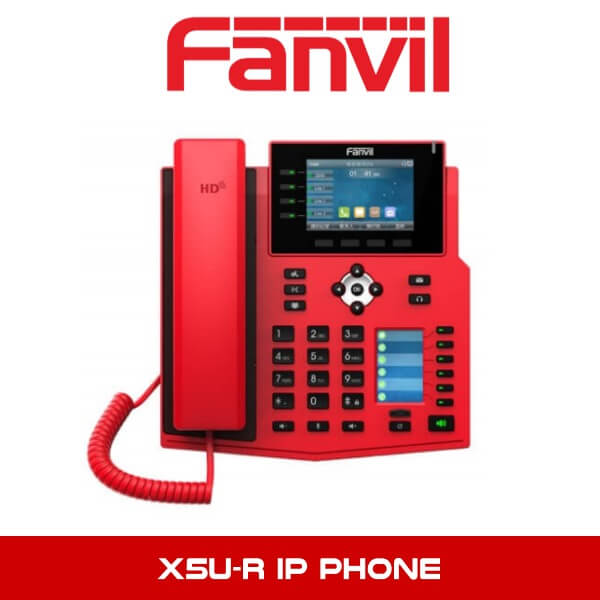

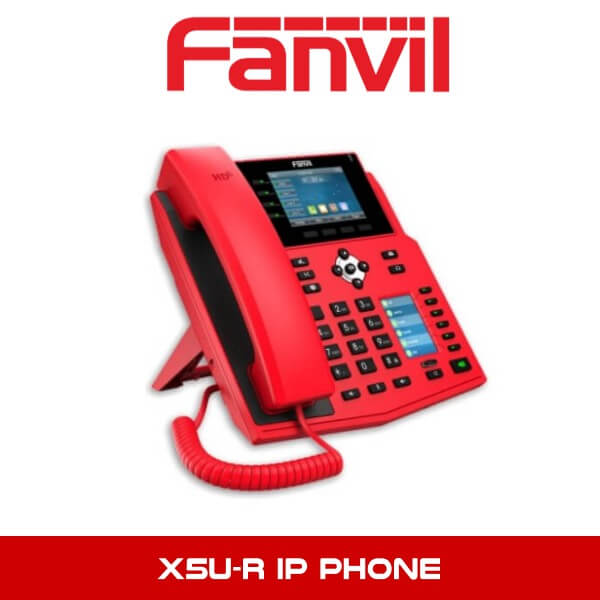

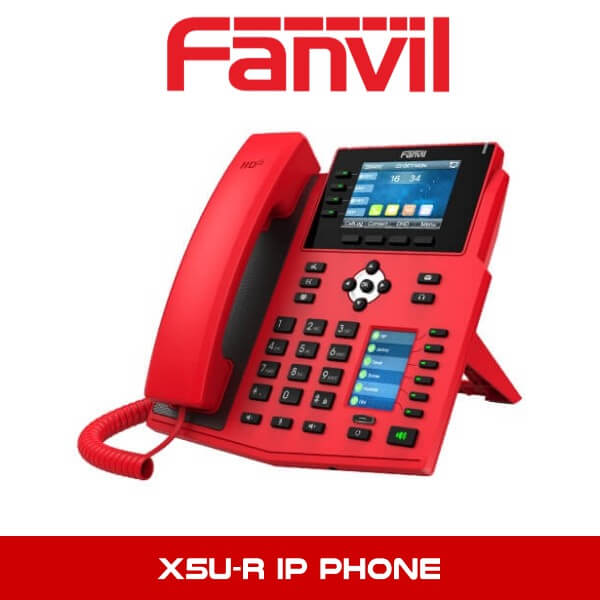

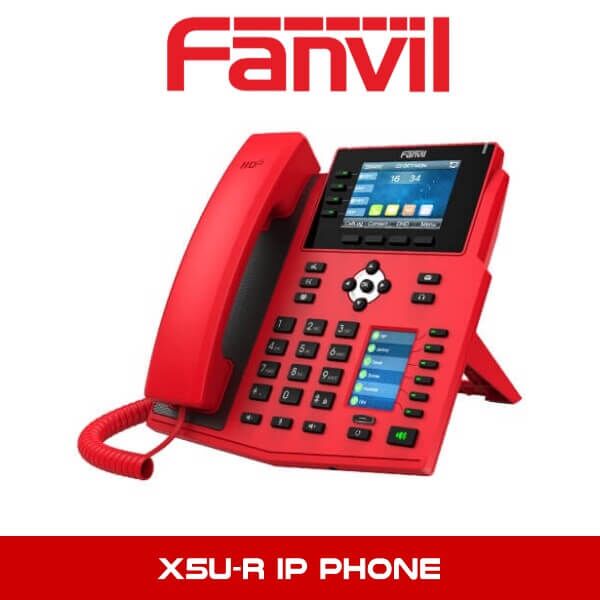

Fanvil X5U-R Special Red IP Phone Dubai
The Fanvil X5U-R Enterprise IP Phone in Dubai has been specially designed for deployment scenarios where phones need to stand out in case of an emergency. The X5UR IP Phone is a 16-line mid-level which is equipped with two screens, one large 3.5-inch screen, and a second 2.4-inch side color screen for added convenience when using DSS keys. The X5U has all the features a professional user needs such as great audio quality with Harman speaker, built-in Bluetooth for connecting Bluetooth headsets, and the option to add a Wi-Fi dongle.
Equipped with a Harman speaker and wideband codec G.722 and Opus, HD audio in red X5U-R enables you to pick up clear audio even in a noisy environment. With 3.5’’ color display, 2.4’’ color side display, and 30 programmable keys with LED light, the red Fanvil X5U-R provides you intuitive access to different functions in an emergency. Red Fanvil X5U-R enables you to record the dialogue for the double-check in the future, which can also be saved in three ways including local, Network, and SIP info recording.
Fanvil X5U-R IP Phone Key Features:
- Conspicuous & Eye- Catching, Red Phone
- Special and well-marked, red Fanvil X5U-R can be recognized by the first sight clearly in the distance. It is designed to be used in special application scenarios where the devices need to be found easily in an emergency, such as fire stations, hospitals, government agencies, as well as many others.
- HD Audio With Harman Speaker
- Courtesy of the excellent Harman speaker and wideband codec G.722 and Opus, the red Fanvil X5U-R enables you to pick up clear audio even in a noisy environment.
- 2 Color Displays with 30 DSS Keys
- Using its 3.5-inch color display, 2.4-inch color side display and 30 programmable keys with LED light, elegant red Fanvil X5U-R delivers intuitive access to different functions in an emergency.
- Greater Interoperability and Collaboration
- The red Fanvil X5U is equipped with standard features such as seamless Bluetooth, EHS, and Wi-Fi connectivity. It comes with an included Wi-Fi dongle which enables the user to connect to available Wi-Fi networks and make fast calls over the internet. An EHS cable connects the Fanvil X5U phone to an EHS headset, so as to deliver maximum mobility, therefore allowing the user to multitask and also respond to emergencies more quickly.
- Call Recording
- Red Fanvil X5U-R enables you to record the dialogue for the double-check in future, which can be saved in three ways including local, Network and SIP info recording.
- SIP Hotspot
- The red Fanvil X5U-R has a built-in SIP hotspot which enables it to expand its SIP accounts to other IP phones so as to achieve group ringing in LAN, such that when one client receives a call, all the clients will ring, and when one of them is answered, all of them will stop ringing.
- 16 – Line Operation
- A user can easily make or receive calls using 16 different SIP lines. This feature is not only highly efficient in offices, but is also useful in boosting the productivity of workers.
- Supports 3-way conferences
- The Fanvil X5U – R IP Phone is designed to allow for 3-way group calls to enable you to have a teleconference with two other parties, delivering more powerful and flexible session management.
- Effortless Configuration
- The Fanvil X5U- R IP Phone comes with an easy web – based configuration via phone and computer, resulting in added convenience and increased productivity.
- PoE (Power over Ethernet) Integrated
- Fanvil X5U – R IP Phone is equipped with two 10/100Mbps Gigabit Ethernet ports to allow for an easy connection to Power over Ethernet. It is designed without any heavy cabling thus reducing the number of wires on your working space and allowing for an easy installation of the IP Phone.
- The Hands-free Mode
- The Fanvil X5U – R IP Phone is built to support the use of headsets, thus allowing the user to enjoy maximum mobility within the office. The headset can be easily connected to the IP Phone using an integrated RJ9 Port.
- Multi-Platform Compatibility
- Based on SIP, the Fanvil X5U -R IP Phone is configured to allow for full compatibility with major leading professional office platforms including Asterisk, 3CX, Elastix, BroadSoft, Zycoo, and many other world’s top platforms.
- Multiple Installation Options
- Fanvil X5U-R IP Phone offers its user a quick and easy installation that requires no technical expertise. It can be installed in two adjustable angles of 45 – degrees and 50 – degrees, resulting in a neat workstation.
Fanvil X5U-R IP Phone – Technical Specifications
Generic
- 16 SIP Lines
- HD Voice
- PoE enabled
- 2 LCDs (Main + DSS)
- Handset / Hands-free / Headset mode
- Intelligent DSS Keys
- Desktop stand/ Wall-mounted installation (needs additional wall handing parts)
- Optional external power supply
Phone functions
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/Out/Missed, 1000 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 2.1: Support Bluetooth headset
- Supports Wi-Fi Dongle
- Supports Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Supports Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Supports Recording (Through Flash Drive or Server)
- Action URL / Active URI
- uaCSTA
Call functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 3-way Conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
- Wideband Codec: G.722, AMR-WB, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode: IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- Main LCD x1: 2.8-inch (320×240) Color Screen
- DSS Key-mapping LCD x1: 2.4-inch (240×320) Color Screen
Keypad: 42 keys, including
– 4 Line keys (with LED indicator light)
– 4 Soft-keys
– 6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial))
– 4 Navigation keys
– 1 OK key
– 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute (Microphone)
– 6 DSS keys (With LED Indicator Light)
– 1 Page-Switch (PS) key (With LED Indicator Light)
– 1 Hands-free key (With LED Indicator Light) - HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
- Back Rack x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
- Safety Keyhole x1
- DC Power Input: 5V/2A
- Power Consumption: (PoE): 1.7W~10.46W
- Power Consumption: (Adapter): 1.38W~9.13W
- Working Temperature: 0~45℃
- Working Humidity: 10~95%
- Installation:
– Desktop Stand
– Wall-mounted (need an additional wall hanging parts) - Colour: Red
- Device Dimensions:
– Desktop Stand (Angles 1): 214×188.6×181.1 mm
– Desktop Stand (Angles 2): 214×180.5×190.1 mm
– Wall-mounted: 214×119.4×219.1 mm - Gift Box Dimensions: 315x228x84 mm
- Outer CTN Dimensions: 476x440x335 mm (10 PCS)
