Fanvil A32I Dubai



Fanvil A32I Dubai

As a mini management device, Fanvil A32i Dubai caters to the management requirements in small and medium control centers and helps to level-up the daily management efficiency and the ability to handle any emergency.

Category:

Description

Fanvil A32I Android Console IP Phone Dubai

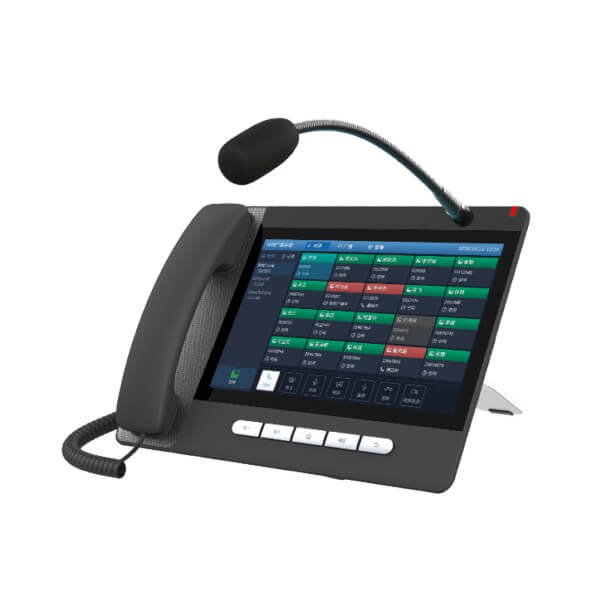

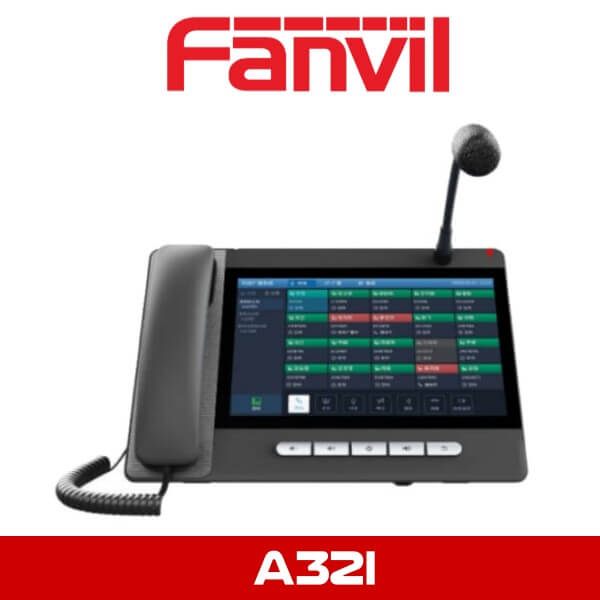

The Fanvil A32i Dubai is powerful android console IP Phone that features a stylish design with a goose-neck speaker. It is equipped with many advanced features that enhance its users communication experience. As a mini management device, Fanvil A32i Dubai caters to the management requirements in small and medium control centers and helps to level-up the daily management efficiency and the ability to handle any emergency.

Features

  • 20 SIP lines, 3-way conference, hotspot
  • Support an external Fanvil USB camera (optional).
  • 112 one-touch DSS keys on 10.1” capacity color touch screen
  • HD audio on speaker and handset
  • Built-in Bluetooth 5.0 and 2.4G/5G Wi-Fi
  • Video Codec H.264 support for receiving video calls.
  • Dual Gigabit ports, integrated PoE
  • Stand with 2 adjustable angles of 40 and 50 degrees
  • Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

Business-style Elegant Design
Featuring the business elegant outlook with smooth lines, a big color touch screen, user-friendly interface, A32i can be the most helpful management phone in the control center.
Outstanding HD Audio/Video
With wideband codec G.722 and Opus, Fanvil A32i provides users crystal-clear audio in communication. With video codec H.264, it provides HD video calls when connected with an optional Fanvil CM60 camera.

Easier Operation Experience
Fanvil A32i Nigeria adopts the design of touch screen and buttons, allowing users to enjoy a smoother operation experience. Everyone can easily use it without learning difficulty.

Powerful Android System
Android 9.0 OS in Fanvil A32i Nigeria ensures the stable operation of software and supports the installation of third-party apps, providing greater compatibility and scalability.

Technical Specifications

Generic

  • 20 SIP lines
  • HD Voice
  • Support receiving Video Call
  • PoE Enabled
  • 10.1-inch (1280×800) colour touch screen
  • Handset / Hands-free / Headphone mode
  • Intelligent DSS Keys (virtual buttons)
  • Optional External Power Supply

Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Built-in Applications : Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
  • Support 3rd Party Applications
  • Secondary Development of API

Phone Functions

  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Intelligent Search for Contacts and Call Log
  • Call logs (In/out/missed, 1000 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 5.0 : Support Bluetooth headset/ Bluetooth of Mobile Device
  • Built-in Wi-Fi :  2.4GHz, 802.11 b/g/n; 5GHz, 802.11 a/n/ac
  • Support Recording
  • Action URL / Active URI
  • UaCSTA
  • Audio/Video Recording
  • SIP Hotspot
  • Group Broadcasting
  • Action Plan
  • Group listening

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 3-way Conference
  • Hot Line
  • Hot desking
  • BLF

Video

  • Video decoding : H.264 /H.265(Optional)
  • Video call resolution : CIF/VGA/4CIF/720P/1080P
  • Image format : JPEG/PNG/BMP
  • Video format : MP4
  • Bandwidth selection : 64kbps~4Mbps
  • Frame rate selection : 5~30fps
  • Video from remote site can be displayed in full screen
  • 3-way Video Call with External Camera Fanvil CM60
  • Optional Fanvil CM60 USB Camera : 2 Mega Pixel, Plug and Play, Flexible Placement and Angle Adjustment
  • Video Preview

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u, G.729AB, iLBC
  • Wideband Codec : G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

  • Physical : 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4
  • IP Configuration : Static / DHCP
  • Network Access Control : 802.1x
  • VPN : OpenVPN (Requires third-party app support)
  • VLAN
  • LLDP
  • CDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • PPPoE
  • 802.1x
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Supports the third party communication APP
  • Supports Web, Telnet
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory reset data

Physical Specifications

  • Colour : Dark grey
  • LCD x1 : 10.1- inch (1280×800) colour touch screen
  • Physical keys x5 : Volume -/Volume +/Home/Hands-free/Return
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Gooseneck Microphone x1 :  Directional microphone, Frequency response : 20Hz~20KHz, SNR : ≥60 dB.1kHz at 1 Pa
  • Back Rack x1
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1 : Standard A, Connect with Flash Driver
  • Safety keyhole x1
  • Power : 5V/2A or PoE
  • Power Consumption (PoE) : 2W ~ 9.77W
  • Power Consumption (Adapter) : 1.2W ~ 7.75W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%
  • Installation : Desktop Stand
  • Device Dimensions :
    • Desktop Stand (Angles 1) : 309 x 214 x 187mm
    • Desktop Stand (Angles 2) : 309 x 226 x 167mm
  • Gift Box Dimensions : 323 x 301 x 71mm
  • Outer CTN Dimensions : 624 x 383 x 348mm (10 PCS)
