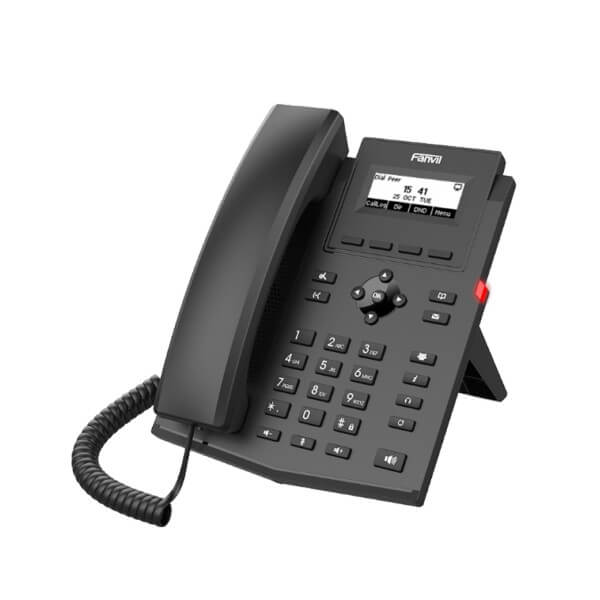

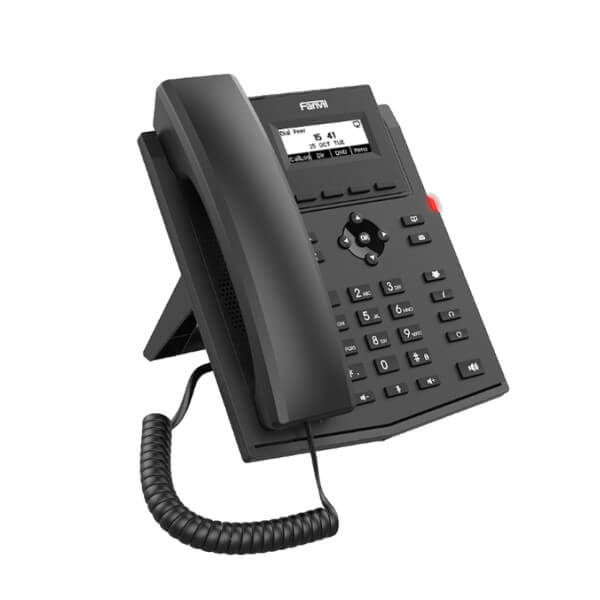

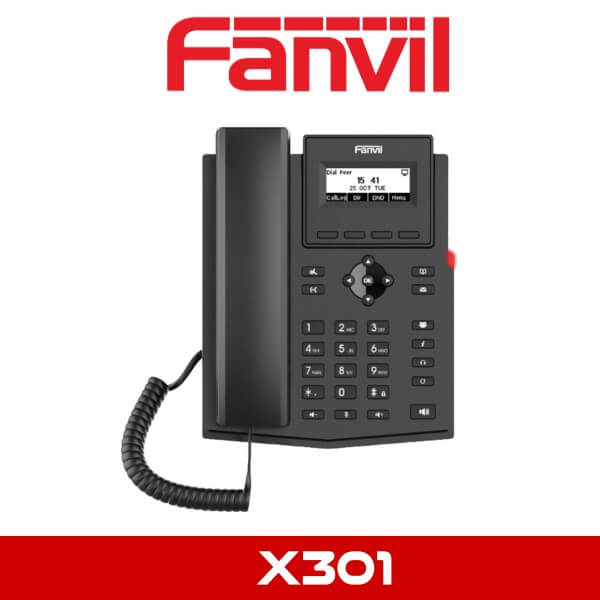

Fanvil X301 Entry Level IP Phone Dubai

The Fanvil X301 Dubai is an affordable SIP Phone that comes with so many rich functions for maximum efficiency. It is fitted with a 2.3-inch 128×48 pixel dot-matrix display, supporting 2 SIP lines and local 6-party conferencing to render a user-friendly experience. The X301 has rich functions such as HD audio, dual 10/100 Mbps network ports, providing an efficient and high-quality business communication experience for enterprises.

Key Features

2.3-inch 128×48 pixel dot-matrix display
Support audio codec G.722 and Opus, HD audio on speakerphone and handset
Support 6-party local conference
Support EHS wireless headset
Dual 10/100 Mbps network ports
Two installation methods of desktop stand and wall mountable

Technical Specifications

Generic

2 SIP Lines
HD Voice
Dot-matrix display screen
Handset / Hands-free / Headset mode
Desktop Stand / Wall mountable (optional)
Optional External Power Supply

Phone Functions

Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries)
Call logs (In/Out/Missed, 600 entries)
Blocked List/Allowed List
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA
Wideband Codec : G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
VQM voice quality monitoring

Call Functions

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward(Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (with server)
6-way Conference
Hot Line
Hot desking

Audio

HD Voice Microphone/Speaker
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec : G.711a/u, G.723.1,G.726,G.729A/B, iLBC
Syslog

Network

Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
IP Mode : IPv4/IPv6
IP Configuration : Static IP / DHCP / PPPoE Network Access Control : 802.1x
VPN : L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPV6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
AES128 & AES256

Deployment & Management

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade

Physical Specifications

LCD : 128×48 pixel graphical LCD with backlight
Keypad : 33 keys, including
4 Soft-keys
9 Function keys (Hold/Transfer/Voicemessage/Conference/Phonebook/MWI/Headset/Redial/Hands-free)
4 Navigation keys
1 OK key
12 Standard Phone Digits keys
3 Volume Control keys (Up/Down/Mute (Microphone))
Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT.5E Ethernet Cable x1
Desktop Stand x1
Status Indicator Light x1 (Red)
RJ9 Port x2 : Handset x1, Headset x1
RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
Security Slot x1
DC Power Input : 5V/0.6A
Power Consumption(Adapter) : 0.8~1.29W
Power Consumption(PoE) : 1.25~1.86W
Working Temperature : 0~45℃
Working Humidity : 10~95%
Installation :
- Desktop Stand
- Wall mountable (optional )
Color : Black
N.W/CTN : 9.05kg(X301), 8.55kg(X301P)
G.W/CTN : 9.76kg(X301), 9.26kg(X301P)
Device Dimensions :
- Desktop Stand (45°) : 169×201.1×177.4 mm
- Desktop Stand (50°) : 169×191.9×185.8 mm
- Wall mountable : 169×120.1×213.7 mm
Gift Box Dimensions : 250x220x55mm
Outer CTN Dimensions : 460x300x270mm(10 PCS)
