Description

Fanvil A10W SIP Intercom Dubai

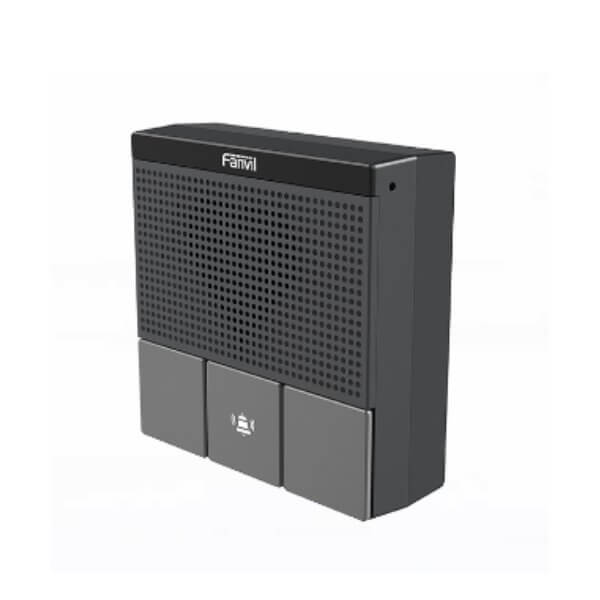

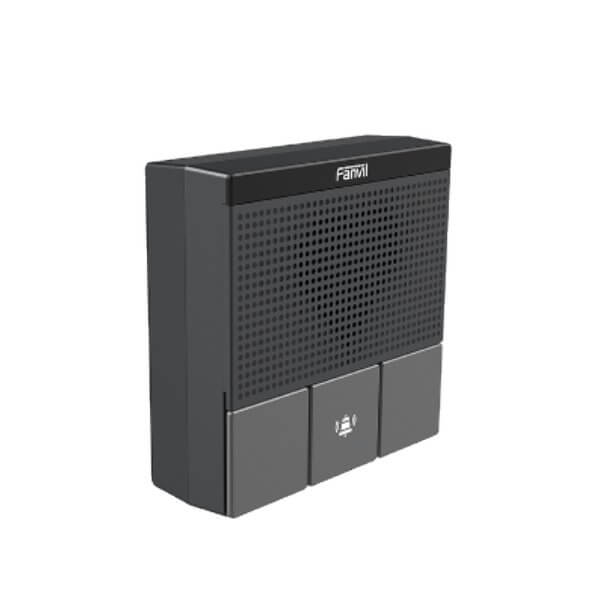

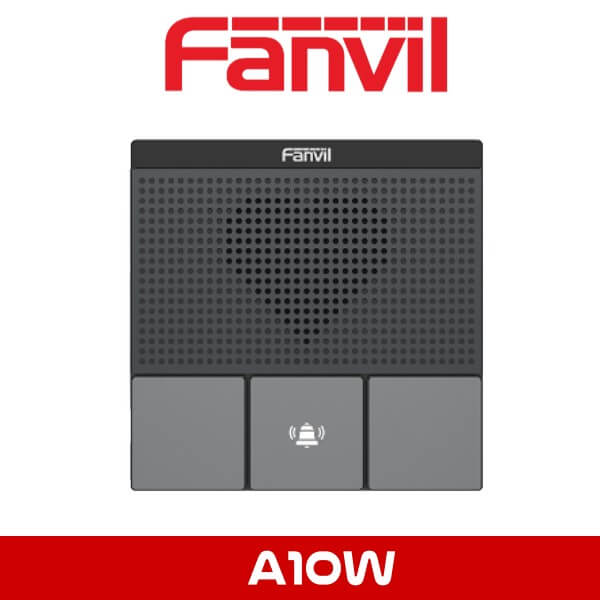

Introducing the Fanvil A10W Dubai SIP mini intercoms, meticulously designed to meet the demands of indoor settings by offering a comprehensive suite of security, intercom, and broadcasting features. These intercoms boast an elegant and compact design, seamlessly integrating into diverse environments while delivering exceptional functionality. With the capability to accommodate 2 SIP accounts and the inclusion of three detachable function buttons, along with the convenience of PoE power supply capabilities, the A10W series ensures versatility and ease of use.

What sets the A10 series apart is its rich feature set, including the provision of HD audio for crystal-clear communication, IP54 waterproof and dustproof ratings for enhanced durability, and the added convenience of built-in 2.4G & 5G Wi-Fi (available in A10W/A10W-E models). This ensures users experience top-notch communication quality, regardless of their location within the premises.

Moreover, the A10 series caters to diverse installation needs, offering options for both wall mounting (A10/A10W) and standard 86 box embedding (A10-E/A10W-E). This flexibility facilitates a myriad of indoor application scenarios, allowing for seamless integration into various setups and environments. Whether deployed in residential complexes, office buildings, or commercial spaces, the Fanvil A10W Dubai SIP mini intercoms provide a reliable and sophisticated solution to meet the evolving communication needs of modern spaces. Elevate your communication experience with the Fanvil A10 series, where form meets function seamlessly.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 2.4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W (A10/A10-E)
  • 1.42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W (A10/A10-E)
  • 1.99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• N.W/CTN : 3.41kg
• G.W/CTN : 3.6kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
