Description

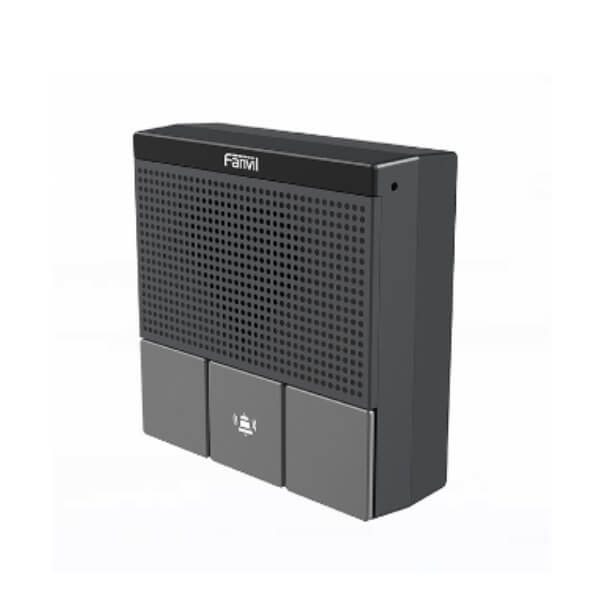

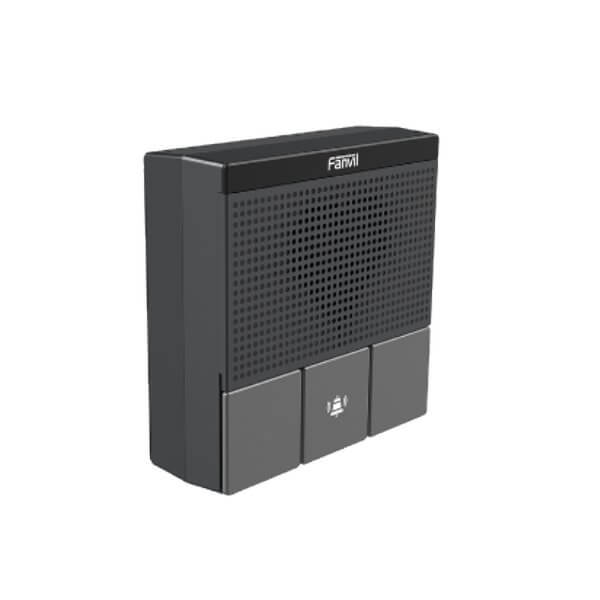

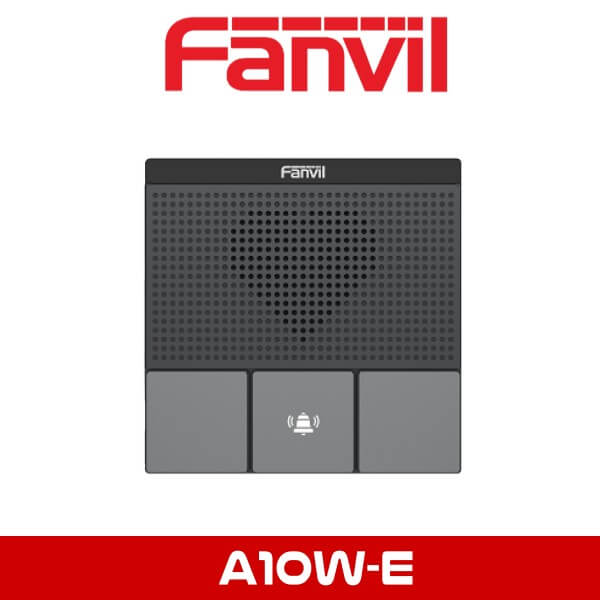

Fanvil A10W-E SIP Intercom Dubai

The Fanvil A10W-E Dubai SIP mini intercoms are meticulously crafted to cater to indoor settings, offering a comprehensive array of security, intercom, and broadcasting features to meet the demands of modern communication infrastructures. With their sleek and compact design, these intercoms seamlessly blend into various environments while providing exceptional functionality that exceeds expectations.

One of the notable features of the Fanvil A10W-E Dubai is its capability to support up to 2 SIP accounts, offering users enhanced flexibility in managing their communication channels. Moreover, the inclusion of 3 detachable function buttons and support for PoE power supply further enhances the versatility and ease of use of these intercoms, ensuring seamless integration into existing systems.

What sets the Fanvil A10W-E Dubai apart is its extensive feature set. It boasts HD audio for crystal-clear communication, while its IP54 waterproof and dustproof ratings guarantee durability and reliability even in harsh environmental conditions. Additionally, users benefit from the convenience of built-in 2.4G & 5G Wi-Fi connectivity (A10W/A10W-E), ensuring uninterrupted communication regardless of their location within the premises.

Moreover, the A10 series offers flexibility in installation options, catering to diverse needs. Whether it’s wall mounting (A10/A10W) or standard 86 box embedding (A10-E/A10W-E), these intercoms adapt seamlessly to various indoor application scenarios, making them suitable for residential complexes, office buildings, or commercial spaces.

The Fanvil A10W-E Dubai SIP mini intercoms present a reliable and sophisticated solution for modern communication needs, combining advanced features, durability, and seamless integration to deliver unparalleled performance in indoor settings.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 2.4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W (A10/A10-E)
  • 42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 48W~2.37W (A10/A10-E)
  • 99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• W/CTN : 3.41kg
• W/CTN : 3.6kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
