Fanvil i16S Dubai


Fanvil i16S Dubai

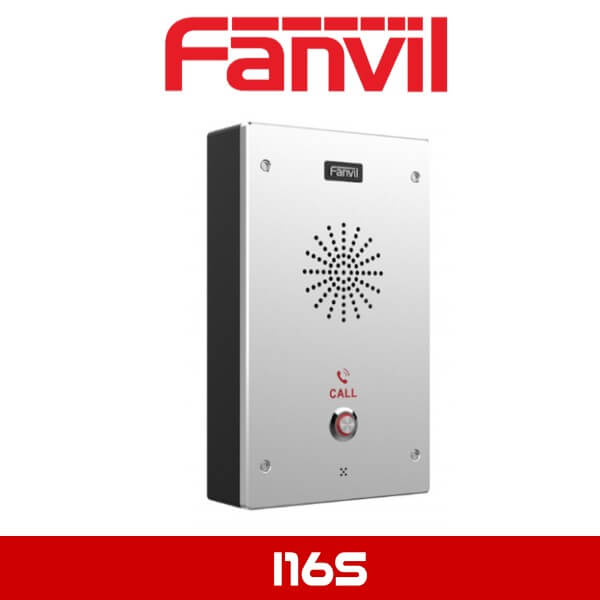

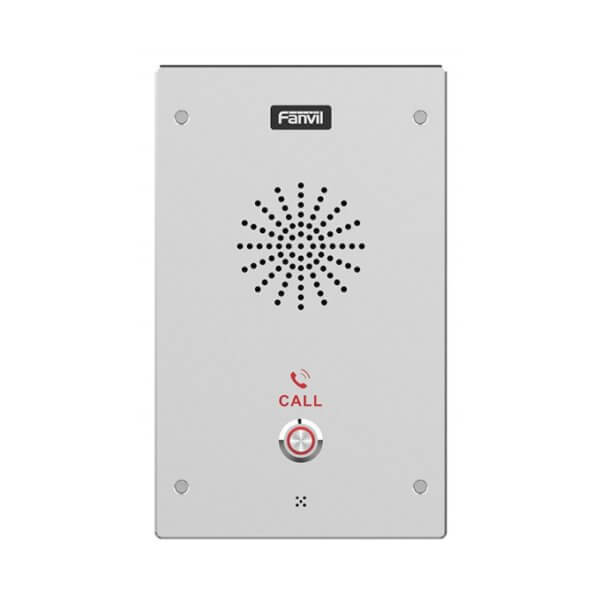

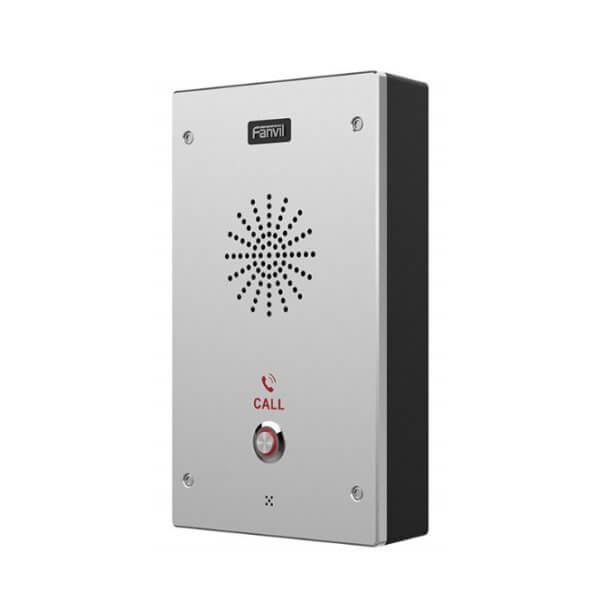

The Fanvil i16S Dubai SIP Intercom stands as a pinnacle of innovation, meticulously designed to meet the exacting demands of outdoor environments where reliability and performance reign supreme.


Fanvil i16S SIP Intercom Dubai

The Fanvil i16S Dubai SIP Intercom stands as a pinnacle of innovation, meticulously designed to meet the exacting demands of outdoor environments where reliability and performance reign supreme. Engineered with precision and care, this state-of-the-art intercom system is equipped with advanced features that elevate communication to unprecedented levels of clarity and efficiency, particularly in the face of challenging outdoor conditions.With its robust construction and impressive IP65/IK10 protection rating, the Fanvil i16S Dubai is fortified against the elements, ensuring longevity and uninterrupted functionality over time. Its high-definition audio and video capabilities guarantee crystal-clear communication, offering users an unparalleled experience regardless of environmental challenges.

But the Fanvil i16S Dubai is more than just a sturdy device—it’s a versatile tool that seamlessly integrates security features, audio/video intercom functionality, and efficient broadcasting capabilities. This comprehensive suite of advanced features empowers users with unmatched convenience and peace of mind, knowing they have a reliable communication solution at their fingertips.

Whether deployed in commercial, industrial, or residential settings, the Fanvil i16S Dubai excels in facilitating seamless communication experiences. Its intuitive design and user-friendly interface make it accessible to a wide range of users, enhancing overall productivity and fostering effortless interactions.Furthermore, the Fanvil i16S Dubai embodies a steadfast commitment to innovation and excellence, continually pushing the boundaries of what’s achievable in communication technology. Its adaptability and reliability make it an indispensable asset for any environment where dependable communication is paramount.

The Fanvil i16S Dubai SIP Intercom transcends its status as a mere communication device; it represents the pinnacle of engineering ingenuity and serves as a testament to the unwavering dedication to providing cutting-edge solutions for the modern challenges of communication.


  • Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV)
  • IP65 waterproof and dustproof.
  • IK10 anti-collision with robust die-cast aluminum frame
  • Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
  • HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
  • Audio line out port, expandable external active speaker.
  • Built-in 2 short-in detect port and 2 short-out control port
  • Support built-in TF card slot for data storage or audio offline broadcasting.
  • Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.



  • 2 SIP lines
  • Speed dial
  • Linkage with IP camera to realize video intercom
  • Oral announcement of the IP address(in English)
  • MP3 broadcasting
  • Support programmable DSS key
  • Support mono active speaker
  • Talkback recording output
  • Switch signal input and output
  • Support TF card
  • PoE enabled

Device Functions

  • Auto-answering
  • Programmable DSS keys
  • Through button or web page volume adjustment
  • Network time synchronization
  • Time Plan (task management)
  • Incoming call multicast
  • Dynamic multicast function
  • Action URL / Active URI

Call Functions

  • Call out / answer / reject
  • Call waiting
  • Intercom, Multicast
  • Speed dial
  • Anonymous call (Hide caller ID)


  • Narrowband codec : G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
  • Wideband codec : G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV)

  • Sensor : 1/2.8” color CMOS
  • Pixels : 2 Mega
  • Video coding : H.264
  • Resolution : 720P/1080P
  • Minimum illumination : 0.1Lux, support for infrared illumination
  • Viewing angle :
  • Diagonal : 126°
  • Horizontal : 98°
  • Vertical : 65°


  • Physical : 10/100 Mbps Ethernet
  • IP mode : IPv4/IPv6/IPv4&IPv6
  • IP configuration : Static IP / DHCP / PPPoE
  • VPN : L2TP / OpenVPN
  • VLAN


  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • TR-069

Physical Specifications

  • 1 DSS key (support LED)
  • RJ45 port x1 : connect the network
    • PoE enabled
  • Line out port x1 : connect the active speaker
    • Out : adjustable by volume, max up to1.2Vpp.
    • Port : terminal socket
  • Recording output port x1 : connect audio device
    • Out : mixed output of local microphone voice and call voice recording
    • Impedance : 15 Ohm
    • Port : terminal socket
  • Short circuit input and output port x2 (built-in relay)
    • Relay : MAX DC30V / 2A, AC125V / 0.5A
    • Active switching output : 12V/500mA DC(only 1 relay support)
    • Port : terminal socket
  • Tamper alarm switchx1
  • TF card slot x1 : connect TF card
  • DC port x1 : DC power input
    • DC power input : DC12V~24V/1A
    • Port : 2 Pin terminal socket
  • PoE level : Class 3
  • Protection level : IP65 and IK10
  • Housing material : aluminum alloy shell
  • Installation : wall-mounted
  • Working temperature : -30℃ ~ 60℃
  • Storage temperature : – 40℃ ~ 70℃
  • Working humidity : 10~95%
  • W/CTN : 9.5kg
  • W/CTN : 10.05kg
  • Device dimensions : 195x120x40 mm
  • Gift box dimensions : 260x165x62 mm
  • Outer CTN dimensions : 348x328x280 mm (10 PCS)
