Description

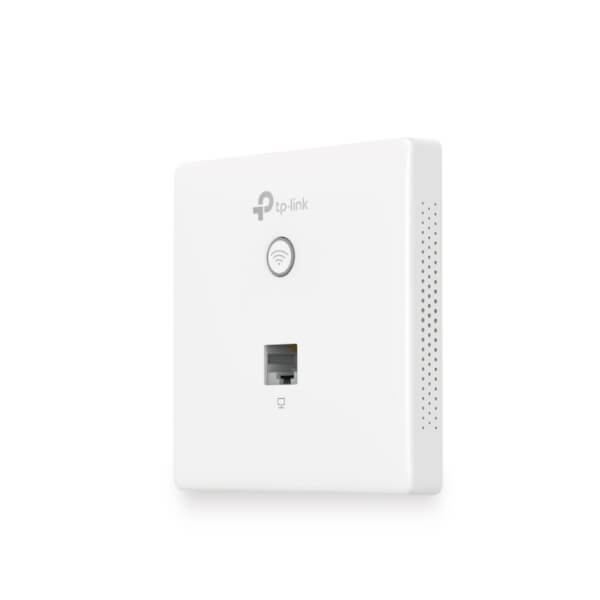

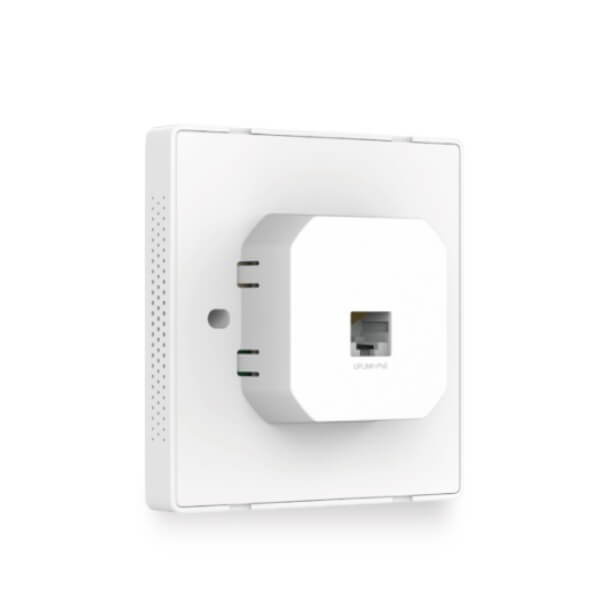

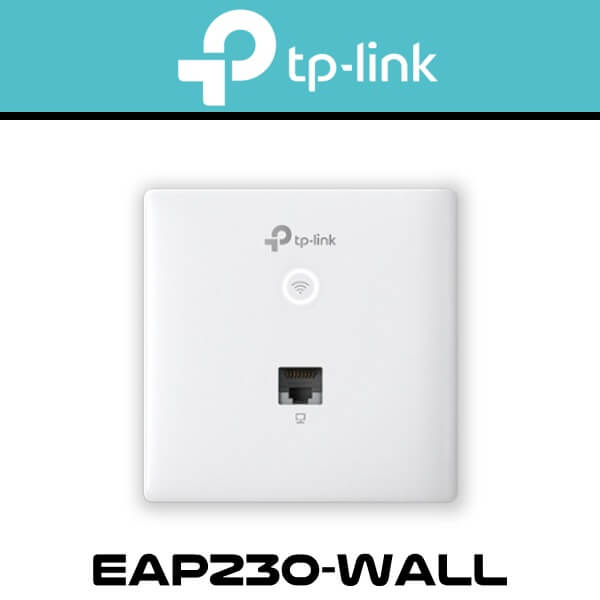

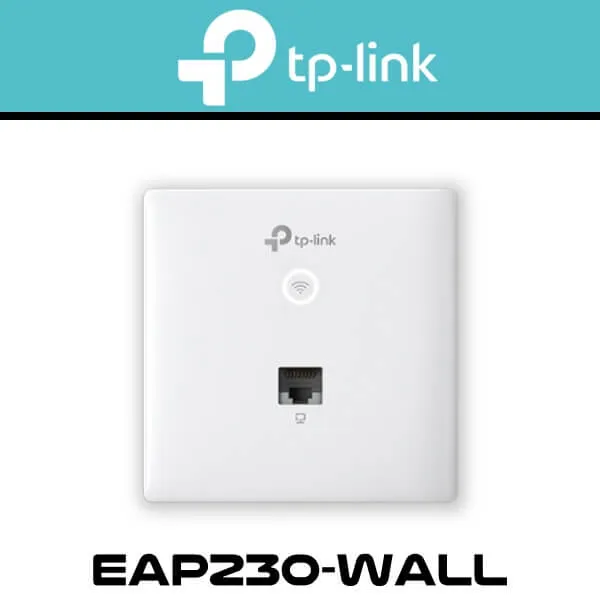

Tplink EAP230-Wall Access Point Dubai
The Tplink EAP230-Wall Dubai is a high-quality access point that comes integrated with Omada app for easy control and management. It is designed to meet the network needs of its users in scenarios with many separated rooms such as offices, hotels, residentials and dormitories. With a single Tplink-EAP230-Wall Access Point Dubai device in each room, users are guaranteed of an exclusive, high-speed Wi-Fi connection, as well as a secured network system that is safe from hacking.
The Tplink EAP230-Wall Dubai is integrated with 802.11ac wave 2 technology which allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Features
- Fast Dual-Band Wi-Fi: Tplink EAP230-Wall Dubai supports simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Gigabit Ports: Tplink EAP230-Wall Dubai has 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Tplink EAP230-Wall Dubai is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Tplink-EAP230-Wall Access Point Dubai features an unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
- Easy Installation and PoE Support: Tplink EAP230-Wall Dubai allows for easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Technical Specs
Hardware Features
Interface
- Uplink : 1 x 10/100/1000 Mbps Ethernet Port
- Downlink : 1 x 10/100/1000 Mbps Ethernet Port
Physical Security Lock
- No
Button
- LED/WiFi Button, RESET
Power Supply
- 802.3af/802.3at PoE
Power Consumption
- 7 W
Dimensions
- 86.8 × 86.8 × 30.2 mm (3.4 × 3.4 × 1.2 in.)
Antenna
- 2 Dual-Band Antennas
- 2.4 GHz : 2 x 4 dBi
- 5 GHz : 2 x 3.6 dBi
Mounting
- Wall Plate Mounting
Hardware Watch Dog
- Yes
Wireless Features
Wireless Standards
- IEEE 802.11n/g/b/ac
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz : Up to 867 Mbps
- 2.4 GHz : Up to 300 Mbps
Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- MU-MIMO
- Band Steering
- Beamforming
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power
- CE :
- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, EIRP)
Management
Omada App
- Yes
Centralised Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300 – sold separately, see accessories tab)
- Omada Hardware Controller (OC200 – sold separately, see accessories tab)
- Omada Software Controller
Cloud Access
- Through OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1,v2c
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Other Spcifications
Certification
- CE, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment
- Operating Temperature : 0ºC – 40ºC (32ºF – 104ºF)
- Storage Temperature : -40ºC – 70ºC (-40ºF – 158ºF)
- Operating Humidity : 10% – 90% RH non-condensing
- Storage Humidity : 5% – 90% RH non-condensing
Package Contents
- 1 x TP-Link EAP230-Wall
- 1 x Installation Guide
- 1 x Mounting Screw
