Description

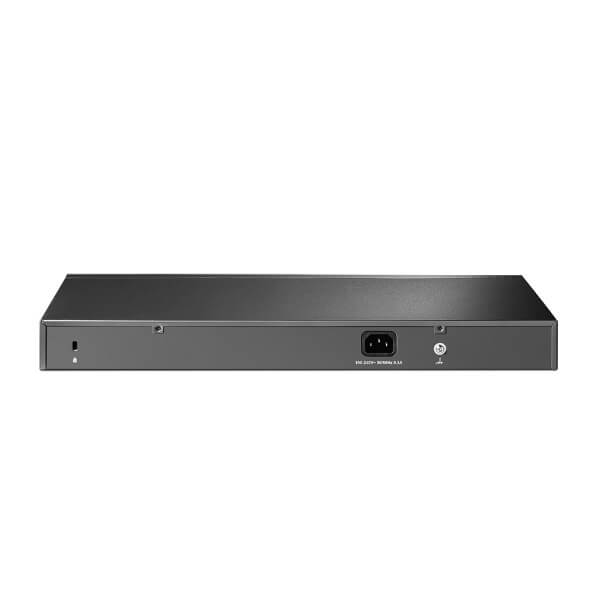

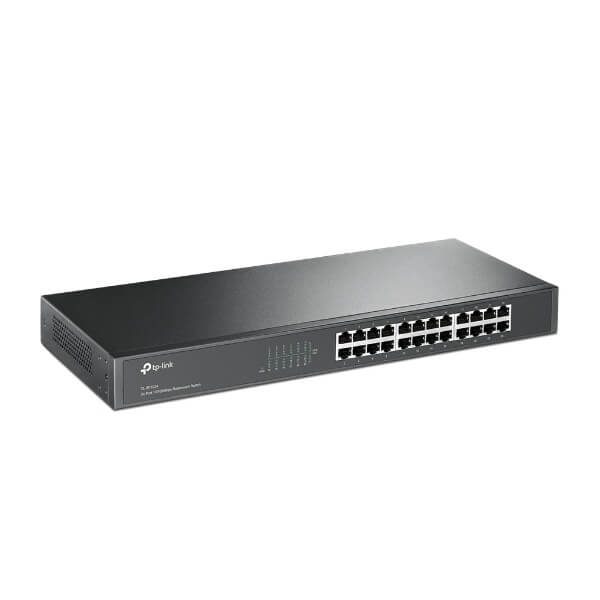

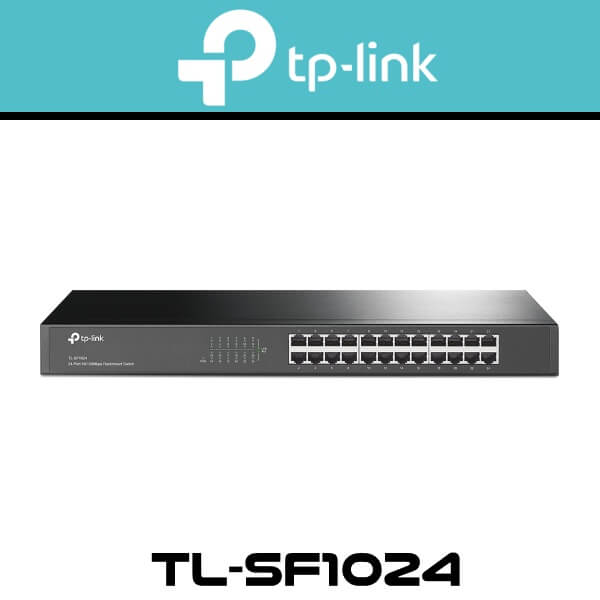

Tplink TL-SF1024 Network Switch Dubai
The 24-Port 10/100Mbps Rackmount Switch Tplink TL-SF1024 Dubai provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch Tplink TL-SF1024 Dubai features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, Tplink TL-SF1024 Dubai forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.
Easy to Use
The auto features of this fast Tplink TL-SF1024 Dubai ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Technical Specs
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Full duplex | Y |
| Routing entries | 1 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Data transmission | |
| Switching capacity | 4.8 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Y |
| Security | |
| MAC address filtering | Y |
| Design | |
| Rack mounting | Y |
| Stackable | N |
| Product colour | Black |
| LED indicators | Activity, Link |
| Certification | FCC, CE, RoHS |
| Technical details | |
| Shipping (inner) case height | 1 mm |
| Shipping (inner) case width | 1 mm |
| Shipping (inner) case length | 1 mm |
| Shipping (inner) case net weight | 1 g |
| Products per shipping (inner) case | 11 pc(s) |
| Master (outer) cases per pallet layer | 1 pc(s) |
| Layers per pallet (air) | 1 pc(s) |
| Layers per pallet (sea) | 1 pc(s) |
| Pallet gross weight (air) | 1 g |
| Master (outer) cases per pallet (air) | 11 pc(s) |
| Products per pallet (air) | 1 pc(s) |
| Pallet gross length | 1 mm |
| Pallet gross width | 1 mm |
| Pallet height (air) | 1.1 cm |
| Pallet gross weight (sea) | 1 g |
| Master (outer) cases per pallet (sea) | 1 pc(s) |
| Products per pallet (sea) | 1 pc(s) |
| Pallet height (sea) | 1.1 cm |
| Power | |
| Power supply included | Y |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 3.53 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| Quick start guide | Y |
