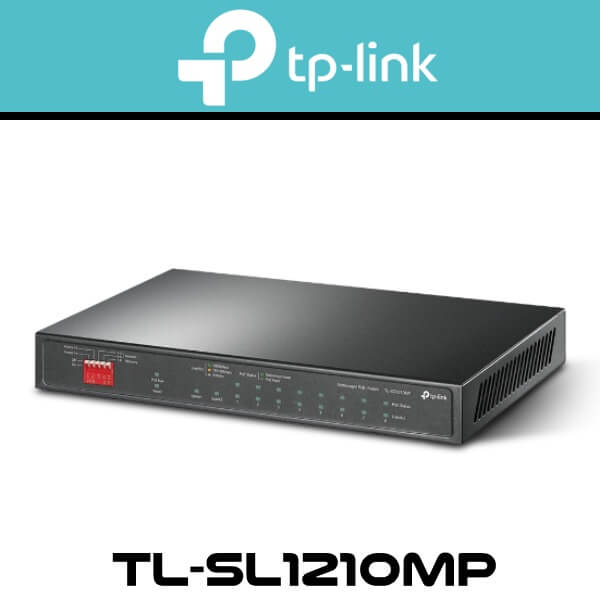

Tplink TL-SL1210MP Network Switch Dubai
The Tplink TL-SL1210MP Dubai is an unmanaged PoE switch with eight 10/100 Mbps ports, one Gigabit port and one SFP port, and its total PoE budget of the eight PoE+ ports is 124 W*. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fx devices such as APs, IP Cameras or IP Phones, etc.
Features
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE802.3af/at compliant PDs, expands your network
- Supports PoE power up to 30 W for each PoE port
- Supports PoE power up to 124 W* for all PoE ports
- Up to 250 m data and power transmission under Extend** Mode specially designed for surveillance system
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Requires no configuration and installation
- Overload Arrangement : The Tplink TL-SL1210MP Dubai has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is larger than124 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
- Intelligent Power Management : Priority (port 1 > port 2 >…> port 7 > port 8): This function will help protect the system when the system power is overloaded. For example, port 1, 2, 3 and 5 is using 30 W (maximum power per port is 30 W); the system power now is 120 W in total. If there is an additional PD inserted to port 4 with 30 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, 3 and 4 will use 30 W, no power will be supplied to port 5.
- Easy To Use : The Tplink TL-SL1210MP Dubai is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, TL-SL1210MP is a great selection for expanding your network.
Technical Details
- Power Over Ethernet (PoE) : PoE+
- PoE Budget1 : 24 W
- Performance
- Switching capacity: 5.6 Gbps
- Packet forwarding rate: 4.166 Mbps
- MAC Address Table Size : 2K entries
- Jumbo Frame Support : 16KB
- Features
- Flow control,
- Auto-negotiation
- Auto-uplink (auto MDI/MDI-X)
- Store and forward
- Fanless, extend mode
- Compliant Standards
- IEEE 802.3u
- IEEE 802.3i
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3at
- Status Indicators
- Power
- PoE,
- Link/activity
- PoE max

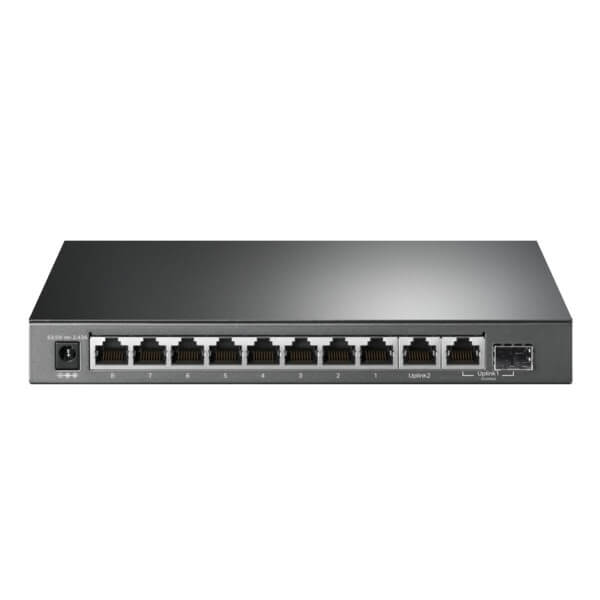

Expansion / Connectivity
Interfaces
- 8 x 100Base-TX RJ-45 PoE+ – 30 W
- 1 x Gigabit LAN SFP
- 1 x 1000Base-T RJ-45
Power
Power Device : External power adapter
