Tplink TL-SF1005P Network Switch Dubai

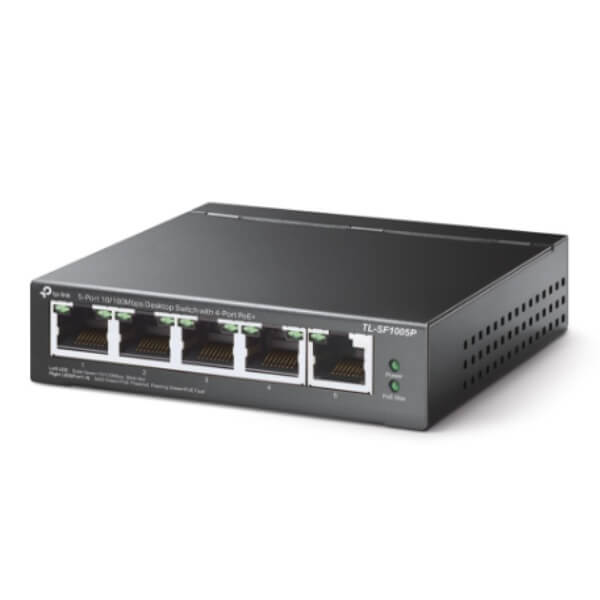

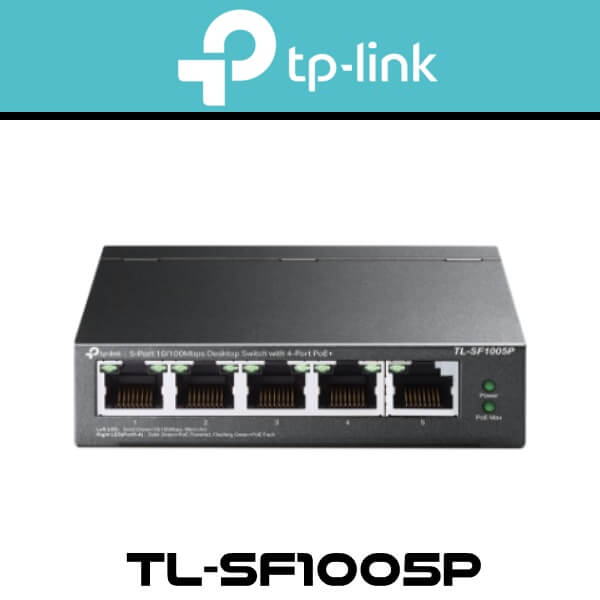

The Tplink TL-SF1005P Dubai is an unmanaged 5 port Fast Ethernet switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the Tplink TL-SF1005P Dubai support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.
Features
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
The Tplink TL-SF1005P Dubai is equipped with a sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Technical Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |

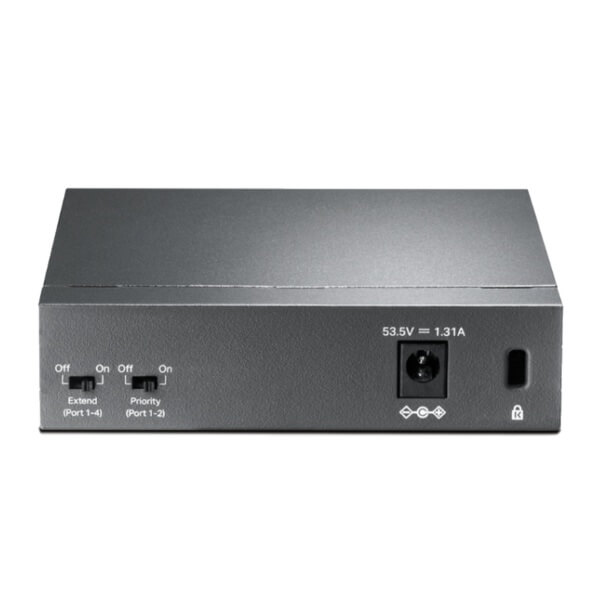

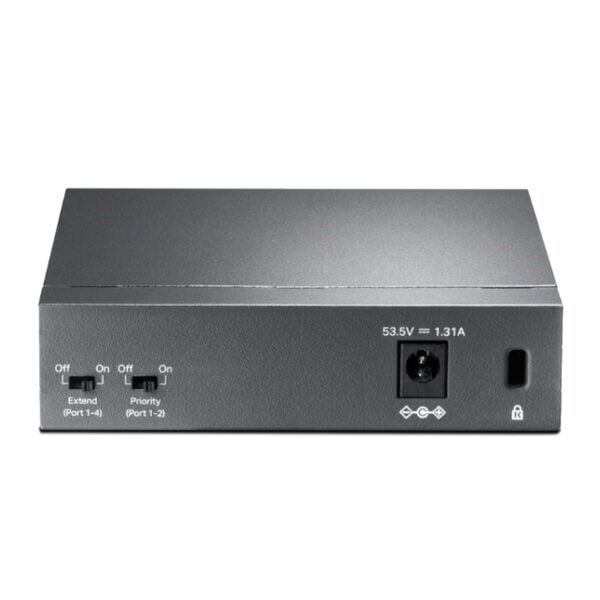

| External Power Supply | External Power Adapter (Output : 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.744 Mpps |
| PoE Ports (RJ45) |
|
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions |
|
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1005P, Power Adapter, Installation Guide |
| Environment |
|
