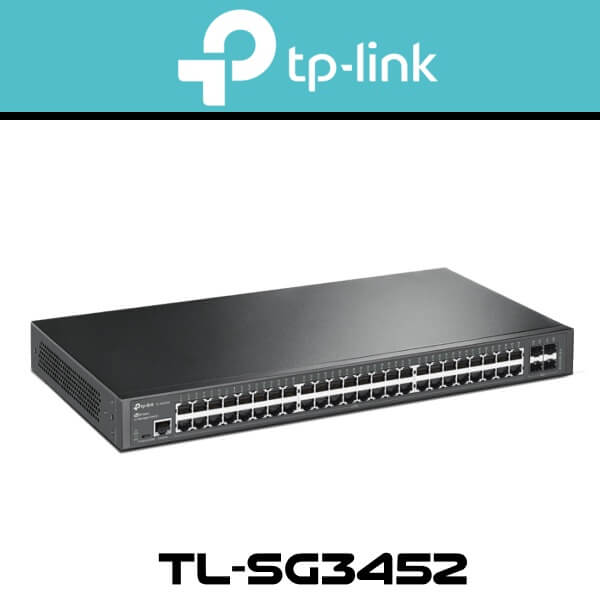

Tplink TL-SG3452 Dubai

Description

Tplink TL-SG3452 Network Switch Dubai

Tplink TL-SG3452 Dubai JetStream L2/L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. Tplink TL-SG3452 Dubai managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Features

Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Technical Specs

HARDWARE FEATURES
Interface	48× 10/100/1000 Mbps RJ45 Ports 4× Gigabit SFP Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	Fanless
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3×8.7×1.7 in. (440×220×44 mm)
Mounting	Rack Mountable
Max Power Consumption	32.8 W
Max Heat Dissipation	111.9 BTU/h
PERFORMANCE
Switching Capacity	104 Gbps
Packet Forwarding Rate	77.4 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth Control Port/Flow based Rating Limiting Smoother Performance Action for Flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
L2 and L2+ Features	Link Aggregation Static link aggregation 802.3ad LACP Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol 802.1d STP 802.1w RSTP 802.1s MSTP STP Security : TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect Loopback Detection Port-based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring CPU Mirroring One-to-One Many-to-One Tx/Rx/Both
L2 Multicast	Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast Multicast Filtering : 256 profiles and 16 entries per profile
VLAN	VLAN Group Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN : 12 Entries Protocol VLAN : Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority Combined ACL Packet Content ACL IPv6 ACL Policy Mirroring Redirect Rate Limit QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding DHCP Snooping ARP Inspection IPv4 Source Guard IPv6-MAC-Port Binding DHCPv6 Snooping ND Detection IPv6 Source Guard DoS Defend Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio/pps control mode IP/Port/MAC based access control 802.1X Port based authentication Mac based authentication VLAN Assignment MAB Guest VLAN Support Radius authentication and accountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)*
MIBs	MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App	Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) OC300 OC200 Omada Software Controller
Centralized Management	Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller
Cloud Access	Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) OC300 OC200 Omada Software Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
Management Features	Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG3452 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature : 0–40 ℃ (32–104 ℉); Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
