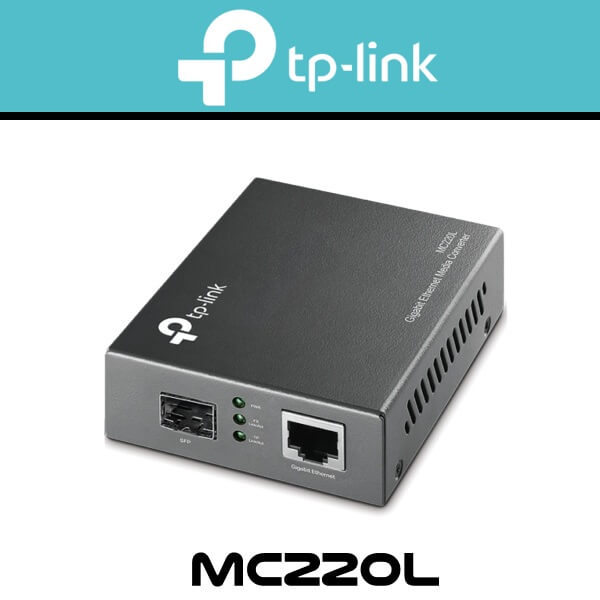

Tplink MC220L Gigabit Media Converter Dubai
Convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa with the Tplink MC220L Dubai Gigabit SFP Media Converter from TP-Link. This media converter supports the 802.3ab, 802.3z, and 802.3x network standards and extends fiber distance up to 0.31 miles for multi-mode fiber and 6.21 miles for single-mode fiber. In addition to extending the transmission distances, the Tplink MC220L Dubai Media Converter also supports data transfer rates of up to 1000 Mbps in Full-Duplex mode for both TX and FX ports. Installation is simple as this device comes equipped with a single Gigabit SFP port, a single Gigabit Ethernet port, and an external power adapter.
Features
- Tplink MC220L Dubai works at 1000 Mbps in Full-Duplex mode for both TX and FX ports
- Supports auto MDI/MDIX for TX port
- The Tplink MC220L Dubai provides switch configuration of force/auto transfer mode for FX port
- FX port supports hot-swappable
- Extends fiber distance up to 0.31 miles for multi-mode fiber and 6.21 miles for single-mode fiber
- Tplink MC220L is equipped with easy-to-view LED indicators which provide status to monitor network activity easily
- External power supply
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function |
|
| Ports |
|
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T |
|
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in. (94 x 73 x 27 mm) |
| Power Supply | External Power Adapter (9VDC/ 0.6A) |
| Max Power Consumption | 1.7 W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
