Description

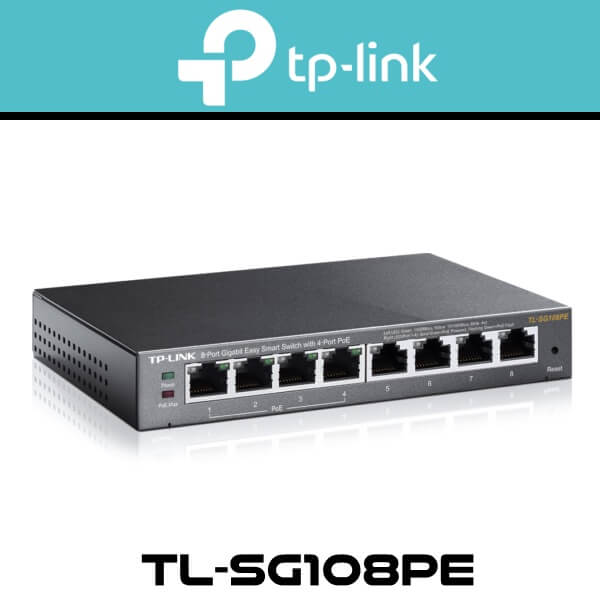

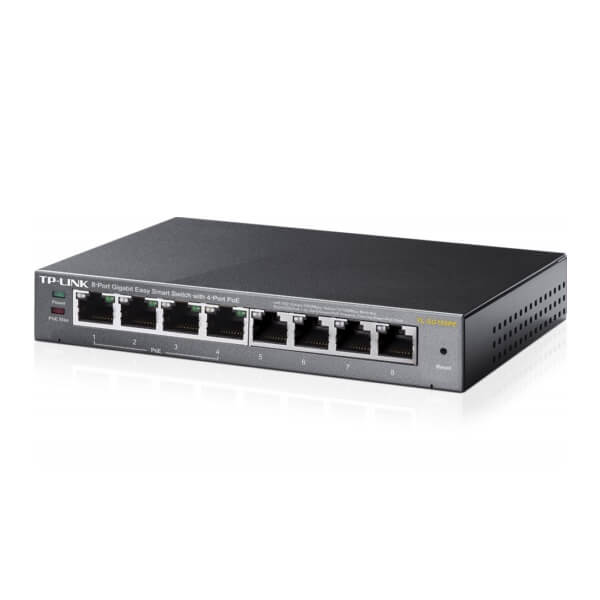

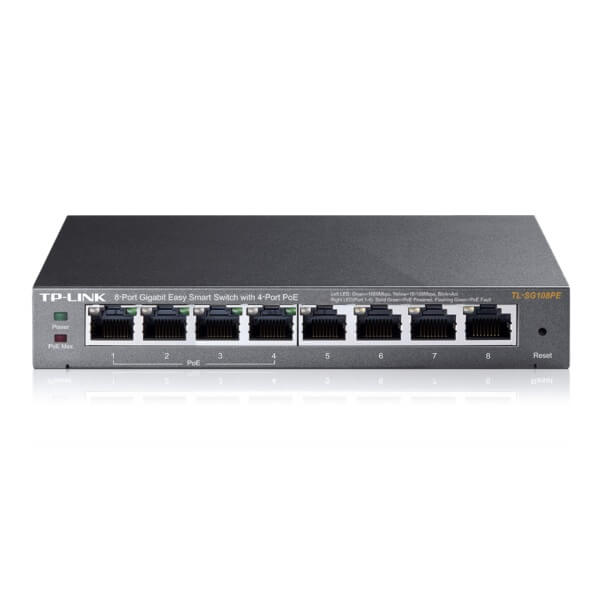

Tplink TL-SG108PE Network Switch Dubai

Quickly expand your home or small business network to support Power-over-Ethernet (PoE) devices, such as IP security cameras, VoIP phones, wireless access points, and more, with the Tplink TL-SG108PE Dubai 8-Port Gigabit PoE Compliant Unmanaged Switch from TP-Link. This unmanaged switch includes eight Gigabit Ethernet ports, four of which are PoE compliant and support up to 15W each with a total power budget of 55W. At the same time, its 16 Gb/s switching capacity and 11.9 Mpps forwarding rate help to ensure smooth and reliable data transfers between devices. With its plug-and-play design, the Tplink TL-SG108PE Dubai V2 8-port switch is designed to quickly integrate into your network without the need for a lengthy and complicated setup process.

Features

Intelligent Power Management

The built-in intelligent power management system will cut off lower-priority ports’ power when consumption exceeds 55W, helping to ensure that high-priority devices remain operational and protected from power overloads.

High Performance Features

Administrators can designate traffic priority based on the Quality of Service (QoS) rules so that voice and video applications are clear and lag-free. Additionally, IGMP snooping optimizes multimedia traffic for smooth broadcast experiences.

Link Aggregation

Take advantage of multi-Gig connections to compatible devices by using link aggregation to combine ports for higher throughput. You can create up to four groups, comprised of up to four ports each.

Silent Operation

The metal casing and fanless design allow the Tplink TL-SG108PE Dubai to work silently from your desktop to avoid disturbing your work or home environment.

Specifications

Interfaces
Ports	4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Layer Services Supported	Layer 2 Support
Supported Protocols	Auto-MDIX/MDI IGMP Snooping Link Aggregation Port Mirroring
Transmission Method	Store-and-Forward
Jumbo Frames Support	15,000 Bytes
MAC Address Table Size	4K
Multicast Groups	128
VLAN Groups	32
VLAN IDs	4000
Security
Security Features	Storm Control
Standards
Supported IEEE Standards	802.1p, 802.3ab, 802.3i, 802.3q, 802.3u, 802.3x
Performance
Forwarding Rate	11.9 Mpps
Switching Bandwidth	16 Gb/s
Priority Queues	4
Packet Buffer	1.5 MB
Electrical
Power Draw	65.2 W (Max)
DC Input Power	48 VDC at 1.25 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	55 W
PoE per Port	15 W
Power Supply Type	External
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 95%
General
Cooling System	Passive
Material of Construction	Metal
Indicator Lights	Link/Activity/Speed, PoE, Power
Dimensions	6.2 x 4 x 1″ / 158 x 101 x 25 mm
Packaging Info
Package Weight	1.94 lb
Box Dimensions (LxWxH)	7.8 x 5.7 x 4.9″
