Description

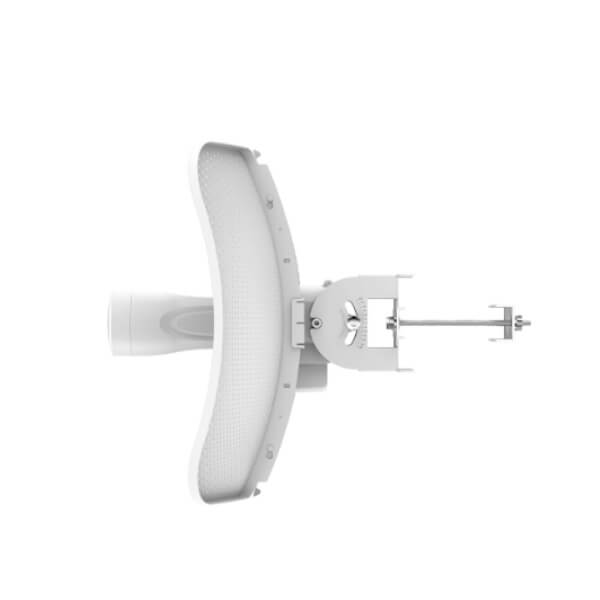

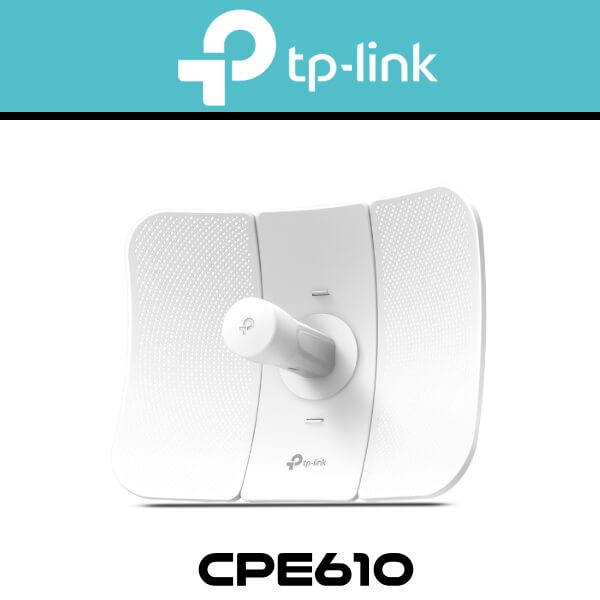

Tplink CPE610 Outdoor Radio Dubai
The Tplink CPE610 Dubai is a powerful Outdoor Radio CPE that comes integrated with Pharos Control centralized management software that enables its users to seamlessly manage all devices in their network from a single PC. It features advanced functions such as status monitoring, device discovery, firmware upgrading, as well as network maintenance. Integrated with PharOS (an intuitive web-based interface), the Tplink CPE610 Dubai provides an alternative management method and allows professionals to access more detailed configurations.
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the Tplink CPE610 Dubai provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 3dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Tplink CPE610 Dubai offers wireless point to point link delivering up to 300 Mbps throughput. The point to point link provides wireless coverage to the entire shaft, and delivers network to the elevator car, connecting the surveillance cameras or digital signage. So that real time video can be recorded to a DVR without hard wiring coax cable directly from the camera to the recorder.
Features
- Up to 300Mbps on 5GHz wireless data rates
- Tplink CPE610 Dubai supports 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Tplink CPE610 Dubai features a durable IP65 weatherproof enclosure and a 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- Tplink Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Tplink CPE610 Dubai comes with Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Technical Specs
| HARDWARE FEATURES | |
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface |
|
| Power Supply |
|
| Power Consumption | 7.41 W Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9°(Azimuth), 7°(Elevation) |
| Protection |
|
| Enclosure |
|
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
|
| Frequency | 5.15~5.85GHz Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmit Power | Max. 25dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration |
|
| Wireless Configurations |
|
| Management |
|
| System Tools |
|
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces |
|
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, IC, RoHS, IP65 |
| Package Contents |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note : We recommend you to use one of following Web browsers for an improved user experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment |
|
