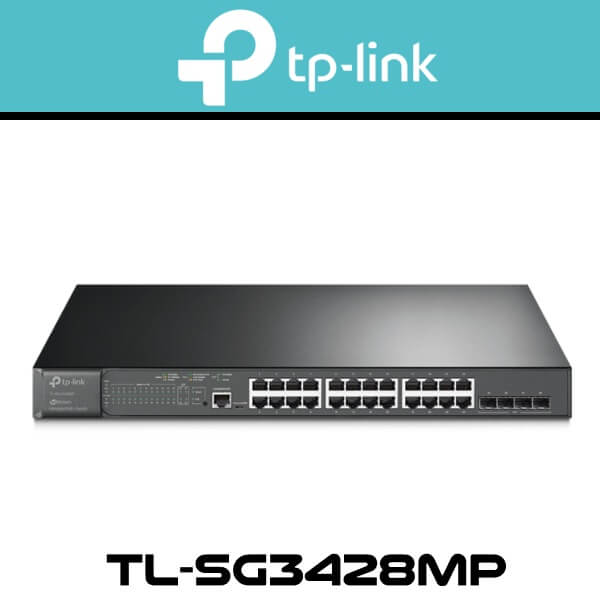

Tplink TL-SG3428MP Network Switch Dubai
The Tplink TL-SG3428MP Dubai PoE Managed Switch features four SFP slots for logical clustering and scalable fiber networks (SFP module not included) and 24 Gigabit RJ-45 ports with PoE (802.3af/at) support. The PoE budget is 30 watts per port and 384 watts in total.
Tplink TL-SG3428MP Dubai switch supports dual stack IPv4/IPv6 (16 IP interfaces). Enterprise-class QoS features (IEEE 802.1p CoS/DSCP, 8 queues, SP, WRR, SP WRR priority modes), IGMP snooping v1/v2/v3 intelligent multicast forwarding, ACLs that restrict access to network resources, and a voice VLAN to provide flexible traffic management and optimization for voice and video applications. It supports a standard Web User Interface (GUI) with HTTPS protection with SSLv3 or TLS1.2 encryption (depending on device operating system), and a Command Line Interface (CLI) via console ports (RJ-45 and microUSB) and telnet with SSHv1 and SSHv2 encryption (protection against eavesdropping and sniffing).
Features
- Software Defined Networking (SDN) with intelligent access
- The Omada SDN platform integrates access points, switches and gateways to provide 100% centralized control over the cloud. Omada provides an easily scalable network managed from a single interface. Seamless, drop-free and drop-in connections are provided, which are ideal for use in hospitality, education, retail, office and other environments.
- 384 W total PoE power: 24 PoE ports compliant with 802.3at/af standards, providing 384 W total power
- Gigabit ports: Tplink TL-SG3428MP Dubai has 24 gigabit PoE ports and 4 SFP slots which translate into high speed connections
- Operation integrated with Omada SDN platform: unattended ZTP configuration, central cloud management and intelligent monitoring
- Central management: cloud access and Omada app for management convenience
- Static Routing: Controls internal traffic for more efficient use of network resources
- Reliable Security: IP, MAC and port binding, ACL, Port Security, protection against DoS attacks, Storm Control, DHCP Snooping, 802.1X, authentication via Radius server and more
- Optimization of voice and video transmission: QoS L2/L3/L4 and IGMP Snooping
- Management: Functions of the Tplink TL-SG3428MP Dubai such as Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management capabilities
Technical Specs
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 24x [10/100/1000M (RJ45)] , 4x [1G (SFP)] , |
| Number of PoE ports | 24x [802.3af/at (1G)] |
| 10G support | N |
| AC input frequency | 50/60 |
| AC input voltage | 100 – 240 |
| Access Control List (ACL) | Y |
| Active link detection | Y |
| ARP inspection | Y |
| Authentication | MAC-based authentication, Port-based authentication |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Y |
| Broadcast storm control | Y |
| Certification | CE, FCC, RoHS |
| Cloud-managed | Y |
| Configuring Location Settings (CLI) | Y |
| Console port | RJ-45 |
| Depth | 180 |
| DHCP features | DHCP client,DHCP server |
| Ethernet LAN data rates | 10,100,1000 |
| Flow control support | Y |
| Forwarding rate | 41.66 |
| Harmonized System (HS) code | 85176990 |
| Head-of-line (HOL) blocking | Y |
| Height | 44 |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| Loop protection | Y |
| MAC address filtering | Y |
| MAC address table | 8000 |
| Management | Yes |
| Multicast support | Y |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Number of fans | 2 |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 45 |
| Port mirroring | Y |
| Power (W) | 384 |
| Power consumption (max) | 463.8 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power supply included | Y |
| Product colour | Black |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Y |
| Rate limiting | Y |
| SFP module slots quantity | 4 |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Static port security | Y |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 56 |
| Switching layer | 2 |
| System event log | Y |
| Type of case | Rack (1U) |
| User guide | Y |
| VLAN support | Y |
| Web-based management | Y |
| Width | 440 |
| Hardware features | |
| Manufacturer | TP-Link |
| Model | TL-SG3428MP |
| Type | Switch |
| Ports |
|
| Fanless | No, 2 fans |
| Power supply | 100-240 V AC~50/60 Hz |
| PoE ports (RJ45) |
|
| Dimensions (H x W x D) | 440 mm × 330 mm × 44 mm (17.3 × 13.0 × 1.7 inches) |
| Mounting | Rack-mountable |
| Max. power consumption |
|
| Amount of heat generated |
|
| Performance | |
| Switching capacity | 56 Gbps |
| Packet forwarding rate | 41.66 Mp/s |
| MAC Address Table | 8K |
| Jumbo frames | 9 KB |
| Software functions | |
| Quality of Service function |
|
| L2 and L2 functions |
|
| L2 Multicast |
|
| VLANs |
|
| Access control lists |
|
| Transmission security |
|
| IPv6 |
|
| Features of the L3 switch |
|
| Management |
|
| Advanced features |
|
| Other | |
| Certificates | CE, FCC, RoHS |
| Contents of the package |
|
| Work environment |
|
