Description
Tplink TL-SF1008P Network Switch Dubai
The Tplink TL-SF1008P Dubai Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type. Simply plug and play. Moreover, with the innovative energy-efficient technology. The switch can save up to 67% of the power consumption. Making it an eco-friendly solution for your business network.
The Tplink TL-SF1008P Dubai is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Features
High Performance
The Tplink TL-SF1008P Dubai Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Power over Ethernet

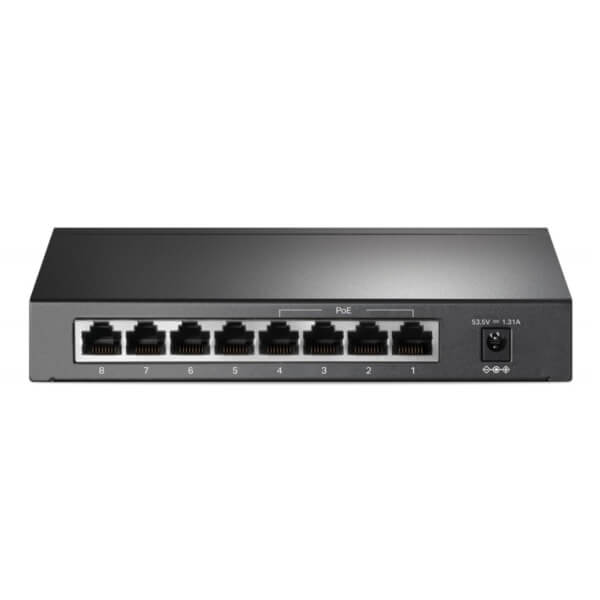

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
- Overload Arrangement
- The Tplink TL-SF1008P Dubai has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.
- Port Priority Function
- Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Technical Specs
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Consumption |
|
| External Power Supply | External Power Adapter(Output : 48VDC / 1.25A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) |
|
| Backbound Bandwidth | 1.6Gbps |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions |
|
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, User Guide |
| Consumption |
|
| Environment |
|
