Description

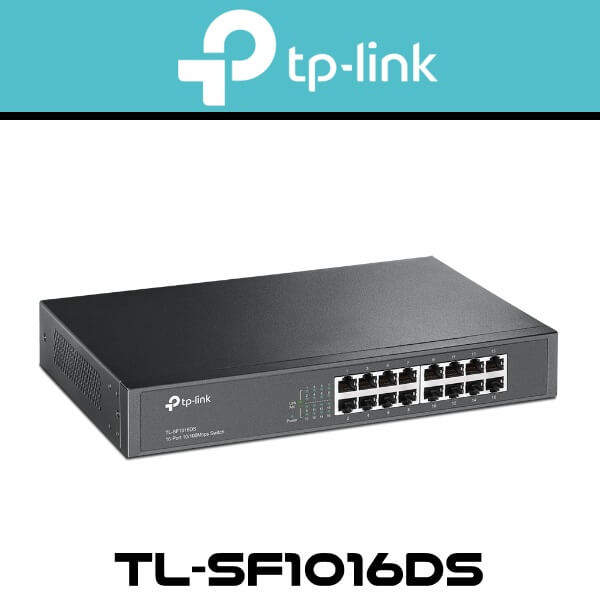

Tplink TL-SF1016DS Network Switch Dubai
The Tplink TL-SF1016DS Dubai Fast Ethernet Switch is a powerful, affordable, easy to use, seamless and standard option to upgrade your old network to 1000 Mbps. All 16 ports support Auto MDI/MDIX, so you don’t have to worry about cable type – just plug and play. In addition, with its innovative power saving technology, the TL-SF1016DS can reduce power consumption by up to 25%.
Features
High performance
The rack-mounted metal housing combined with a safe, certified internal power supply makes the Tplink TL-SF1016DS Dubai a very robust and affordable solution for up to 16 users. Using the unlocked switching architecture, the TL-SF1016DS transmits and filters packets at full cable speed for maximum throughput. IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode reduce network overload and ensure reliable operation of TL-SF1016DS.
- Innovative energy-saving technology saves up to 25% of energy consumption
- Supports IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode
- Unlocked switching architecture transmits and filters packets at full cable speed to ensure maximum throughput
- Switching capacity 3.2 Gbit/s
- Storage and transfer; switching scheme
- Auto MDI / MDIX function eliminates the need for crossover cables
- Supports automatic MAC address learning and automatic aging
- Automatic port negotiation function provides intelligent hardware integration from 10 to 100 Mbit/s
- Plug and Play design simplifies installation
- Fanless design for silent operation
Technical Specs
| Features / filters | |
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 16x [10/100M (RJ45)] |
| Number of WAN ports | Not applicable |
| 10G support | N |
| AC adapter included | Y |
| AC input frequency | 50/60 |
| AC input voltage | 220 – 240 |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Built-in modem | None |
| Certification | FCC, CE, RoHS |
| Depth | 180 |
| Height | 44 |
| LED indicators | Y |
| MAC address table | 8000 |
| Management | No |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Numbers of pieces in the package | 1-pack |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 40 |
| Packet buffer memory | 2 |
| Power connector | DC-in jack |
| Power consumption (typical) | 2.23 |
| Power over Ethernet (PoE) | N |
| Power supply included | Y |
| Product colour | Black |
| Rack mounting | Y |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Switching capacity | 3.2 |
| Switching layer | 2 |
| Throughput | 2.38 |
| Type of case | Desktop |
| Width | 294 |
| Equipment features | |
| Standards and protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ports | 16 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX auto crossover) |
| Network cabling |
|
| Fanless | Yes |
| Physical security | Yes |
| Power supply | 100-240VAC, 50/60Hz |
| Power consumption | Maximal: 2.23W (220V/50Hz) |
| Dimensions (S x G x W) | 294×180×44 mm (11.6×7.1×1.7 inches) |
| Installation | Rack Mountable |
| Max. energy consumption | 2.06W(220V/50Hz) |
| Amount of heat generated | 7.03BTU/h |
| Performance | |
| Switching efficiency | 3.2Gb/s |
| Speed of packet redirection | 2.38Mp/s |
| MAC address plate | 8K |
| Buffer size | 2Mb |
| Advanced Functions |
|
| Green technology | Energy saving – reduces energy consumption by up to 75% |
| Switching architecture | Store-and-Forward |
| Other | |
| Certificates | FCC, CE, RoHS |
| Package contents |
|
| System requirements | Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux. |
| Working environment |
|
