Tplink TL-SG3428XMP Dubai

Tplink TL-SG3428XMP Dubai protects your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Description

Tplink TL-SG3428XMP Network Switch Dubai

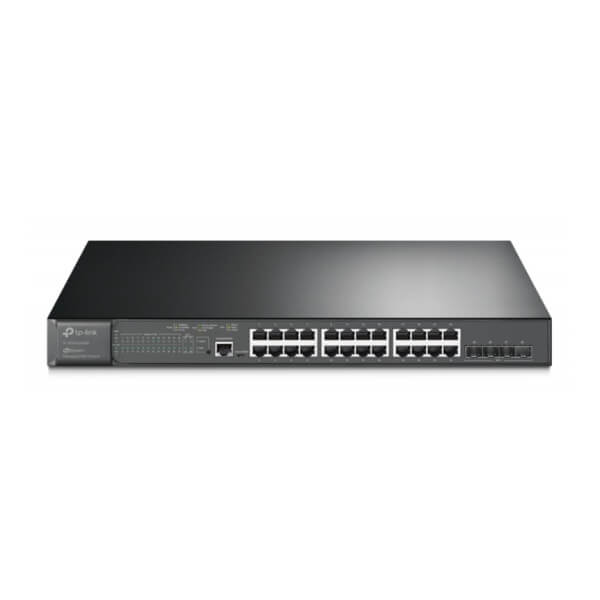

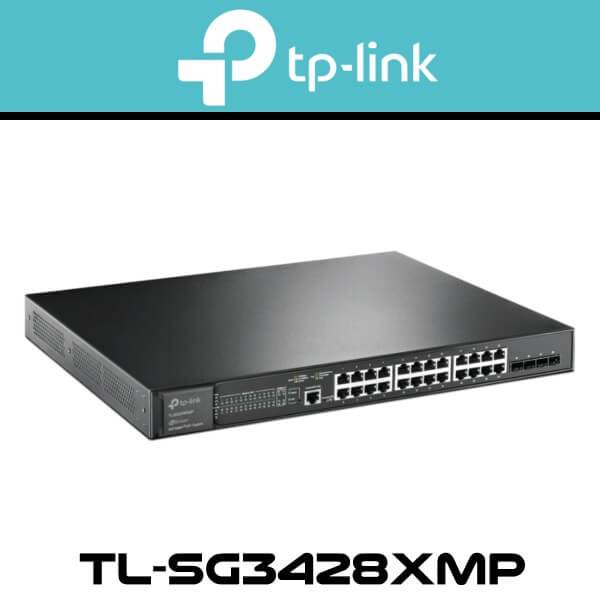

Expand your office or business network capacity to handle a multitude of high-bandwidth applications with the Tplink TL-SG3428XMP Dubai JetStream 24-Port PoE+ Compliant Gigabit Managed Switch from TP-Link. This managed rack-mountable switch features 24 PoE+ compliant Gigabit Ethernet ports with a power budget of 384W to operate compatible devices such as IP security cameras, VoIP phones, wireless access points, and more. There are also four 10 Gigabit SFP+ ports for high-speed fiber uplinks. With its 128 Gb/s switching capacity and 95.23 Mpps forwarding rate, the Tplink TL-SG3428XMP Dubai provides smooth data transfers. The broad range of L2+ and L3 features allows you to configure and manage your network to best suit your business’s needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.

Features

Centralized Management

The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.

Security Features

L2+ and L3 Support

Extensive L2+ and L3 features of the Tplink TL-SG3428XMP Dubai help to build a highly scalable and robust network for businesses, campuses, and ISPs.

Enterprise Level Features

The complete lineup of L2+ features include 802.1Q VLAN, Port Mirroring, Link Aggregation Control Protocol, and 802.3x Flow Control.

Static Routing

Static Routing segments the network and internally routes traffic through the switch for improved efficiency using the Tplink TL-SG3428XMP Dubai.

Optimized Video & Voice Traffic

Advanced IGMP Snooping cuts unnecessary traffic by intelligently forwarding multicast streams to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more to help ensure smooth broadcasts and clear calls, even when bandwidth is limited.

ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are included with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions of the Tplink TL-SG3428XMP Dubai such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover help to ensure that your network is ready for the Next Generation Network (NGN) without having to upgrade your hardware.

Specification

Interfaces
Ports	24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x Micro-USB (Console)
Protocols
Layer Services Supported	Layer 2 Support, Layer 3 Support, Layer 4 Support
Supported Protocols	Auto-MDIX/MDI IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring SNMPv1 SNMPv2c SNMPv3
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9000 Bytes
MAC Address Table Size	16K
Security
Security Features	DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control
Static Routes	48
SNMP Support	1, 2c, 3
Standards
Supported IEEE Standards	802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at, 802.3x
Performance
Forwarding Rate	95.23 Mpps
Switching Bandwidth	128 Gb/s
Priority Queues	8
Electrical
Power Draw	34.4 W 465.8 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	384 W
PoE per Port	30 W
Power Supply Type	Internal
Environmental
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 90%
General
Cooling System	Fan
Rack Form Factor	1 RU
Dimensions	17.3 x 13 x 1.7″ / 440 x 330 x 44 mm
Packaging Info
Package Weight	13.54 lb
Box Dimensions (LxWxH)	20.9 x 17.6 x 4″
