Description

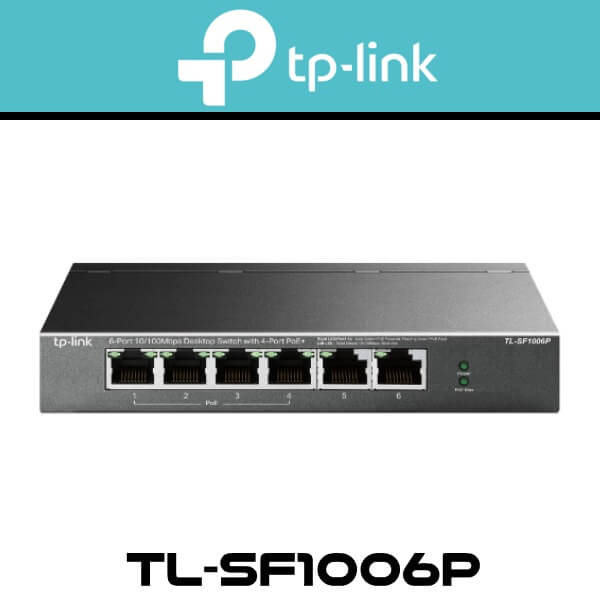

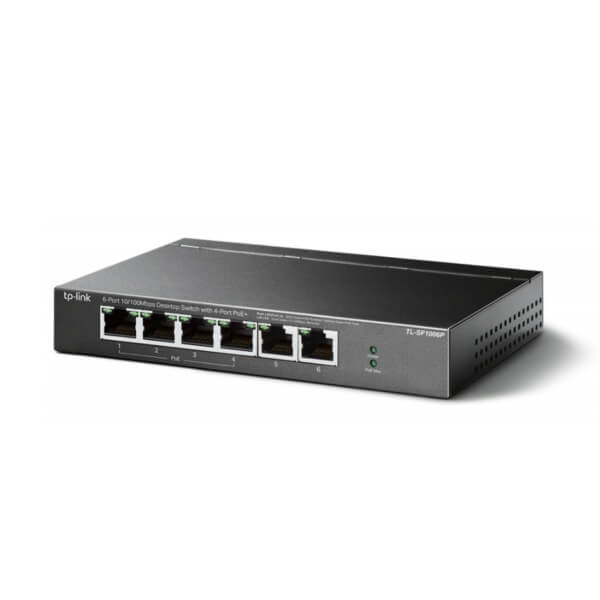

Tplink TL-SF1006P Network Switch Dubai
The Tplink TL-SF1006P Dubai is a Professional High-Power Switch with 4 PoE+ Ports. It comes with 6 x 10/100 Mbps RJ45 ports and 4 x PoE+ ports to transfer data and power on individual cables. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). It supports PoE Transmission for Surveillance up to 250 m. It is in compliance with the 802.3af/at PoE standard and supports up to 30 W on each PoE port. Tplink TL-SF1006P Dubai is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. It comes in a durable metal casing and ensures a long product life.
Quick Features
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Plug and play with no configuration required
Technical Specs
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output : 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) |
|
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions |
|
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
