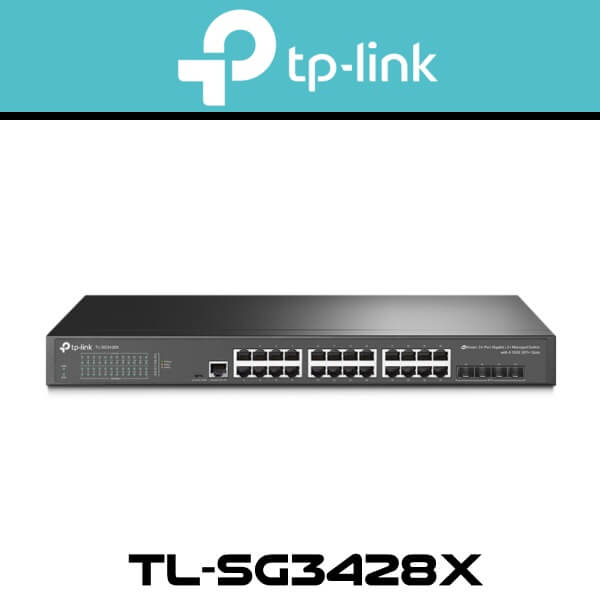

Tplink TL-SG3428X Dubai

The Tplink TL-SG3428X Dubai is a Fully-Managed switch that comes equipped with 24x 10/100/1000Mbit/s LAN ports and 4 10G SFP + slots. Integrated web interface and protocols such as SNMP, CLI, RMO, and centralized cloud management and software controller allow for easy administration and monitoring.

Description

Tplink TL-SG3428X Network Switch Dubai

The Tplink TL-SG3428X Dubai switch provides high-performance routing based on IP, MAC, TCP, or UDP. All in combination with advanced security strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication). With all these advanced features, the gigabit L2 + JetStream switch is the ideal choice for SMB solutions.

Features

10G Lightning-Fast Uplink: Tplink TL-SG3428X Dubai has 4× 10 Gbps SFP+ slots which enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Tplink TL-SG3428X Dubai supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Tplink TL-SG3428X Dubai has powerful Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Technical Specs

HARDWARE FEATURES
Interface	24× 10/100/1000 Mbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	Fanless
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	23.6 W (110V/60Hz)
Max Heat Dissipation	80.353 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth Control Port/Flow based Rating Limiting Smoother Performance Action for Flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
L2 and L2+ Features	Link Aggregation static link aggregation 802.3ad LACP Up to 8 aggregation groups, containing 8 ports per group Spanning Tree Protocol 802.1d STP 802.1w RSTP 802.1s MSTP STP Security : TC Protect, BPDU Filter, Root Protect Loopback Detection Port based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring CPU Mirroring One-to-One Many-to-One Tx/Rx/Both
L2 Multicast	IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast MVR Multicast Filtering : 256 profiles and 16 entries per profile
VLAN	VLAN Group Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN : 7 Entries Protocol VLAN : Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority Combined ACL Packet Content ACL IPv6 ACL Policy Mirroring Redirect Rate Limit QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding 512 Entries DHCP Snooping ARP Inspection IPv4 Source Guard : 100 Entries IPv6-MAC-Port Binding 512 Entries DHCPv6 Snooping ND Detection IPv6 Source Guard : 100 Entries DoS Defend Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio control mode 802.1X Port base authentication Mac base authentication VLAN Assignment MAB Guest VLAN Support Radius authentication andaccountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP 128 Static Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)*
MIBs	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TTL-SG3428X Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature : 0–45 ℃ (32–113 ℉); Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
