Tplink TL-WA901ND Dubai



Tplink TL-WA901ND Dubai

The Tplink TL-WA901ND Dubai is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away.

Description

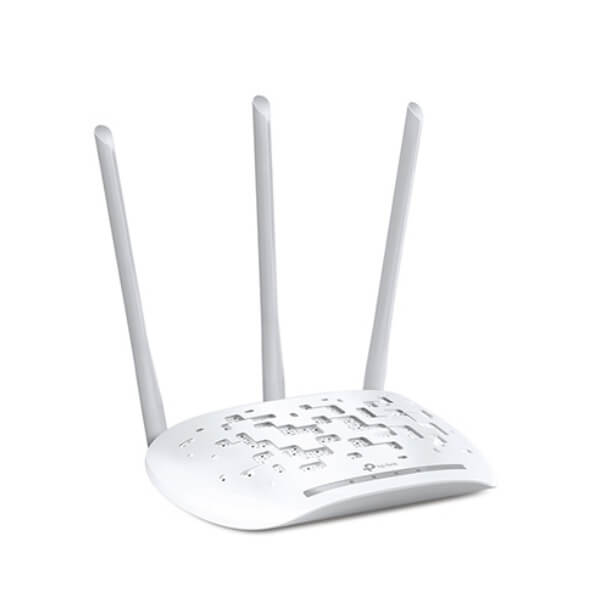

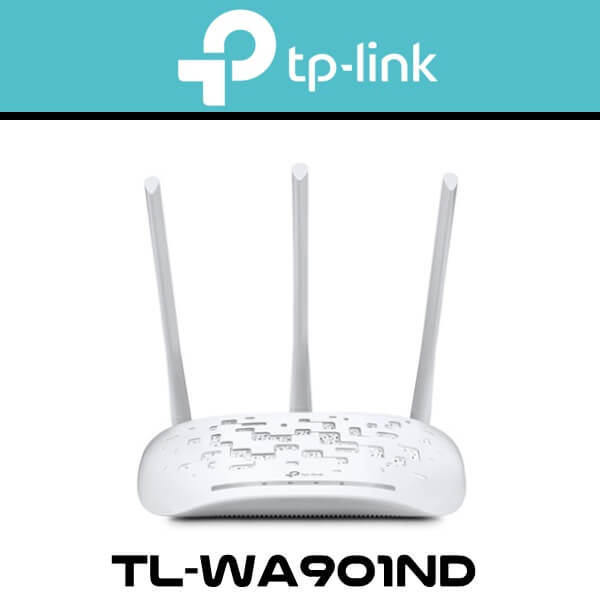

Tplink TL-WA901ND Access Point Dubai

The TP-LINK Wireless N Access Point Tplink TL-WA901ND Dubai is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Features

Wireless N Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, Tplink TL-WA901ND Dubai simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes
Easy to Build WLAN

Tplink TL-WA901ND Dubai supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported
More Flexible Deployment

The Tplink TL-WA901ND Dubai is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Technical Specs

HARDWARE FEATURES

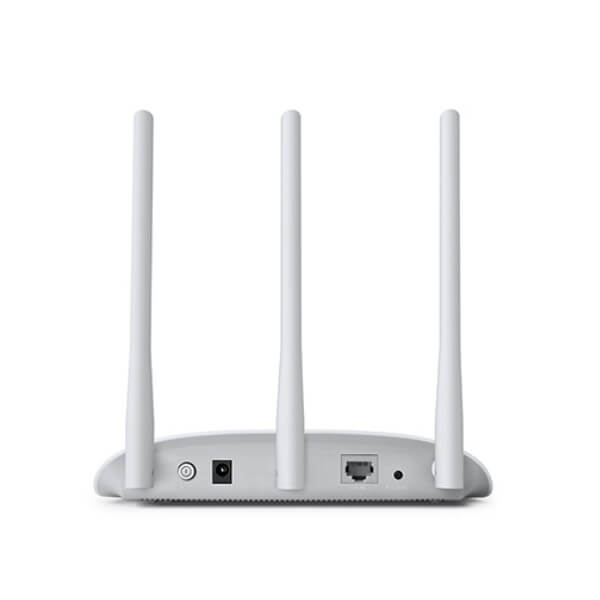

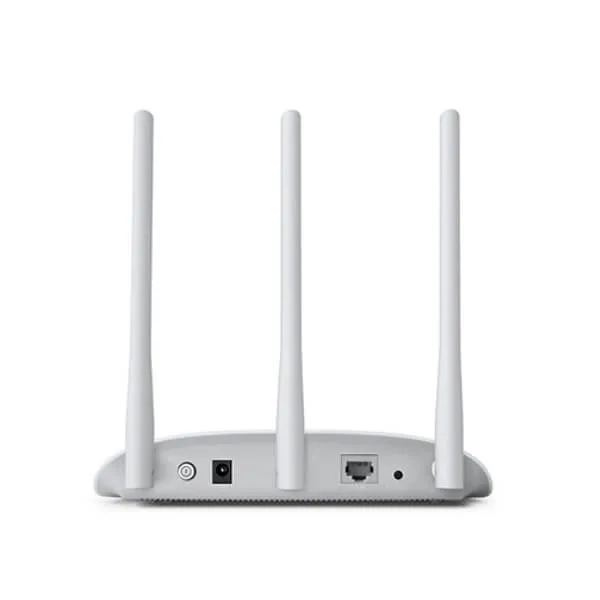

Interface
  • One 10/100M Ethernet Port(RJ45)
  • Support Passive PoE
Button WPS/Reset, Power On/Off
Power Consumption 5.8W
External Power Supply 12VDC/1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)
Antenna Type 3*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n : Up to 450Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
Reception Sensitivity
  • 270M : -68dBm@10% PER
  • 130M : -68dBm@10% PER
  • 108M : -68dBm@10% PER
  • 54M : -68dBm@10% PER
  • 11M : -85dBm@8% PER
  • 6M : -88dBm@10% PER
  • 1M : -90dBm@8% PER
Transmit Power EU version <20dBm
Wireless Modes Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions
  • Enable/Disable Wireless Radio;
  • WMM (Wi-Fi Multimedia)
  • Wireless MAC Address Filtering
  • Wireless Statistic
  • Domain Login Function
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
DHCP DHCP Server
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters PoE is supported
OTHERS
Certification CE, RoHS
Package Contents
  • Wireless Access Point TL-WA901ND
  • 3 Detachable Omni Directional Antennas
  • Power Supply Unit
  • Passive PoE Power Injector
  • Resource CD
  • Quick Installation Guide
  • RJ-45 Ethernet Cable
System Requirements Microsoft Windows XP, Vista, Windows 7, 8, 10
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
