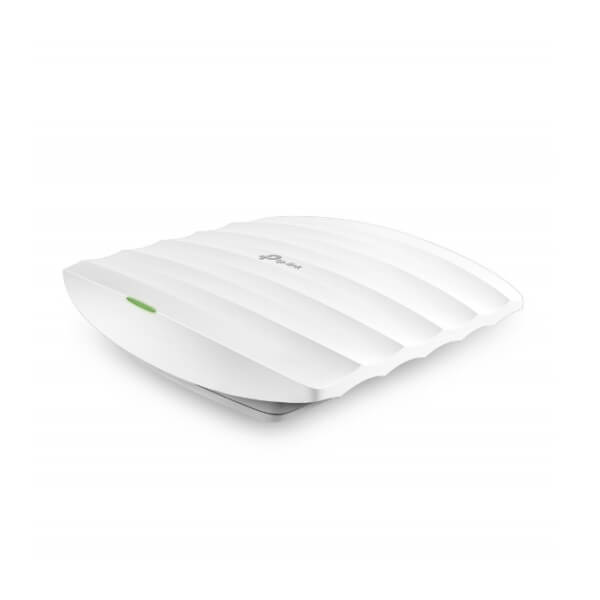

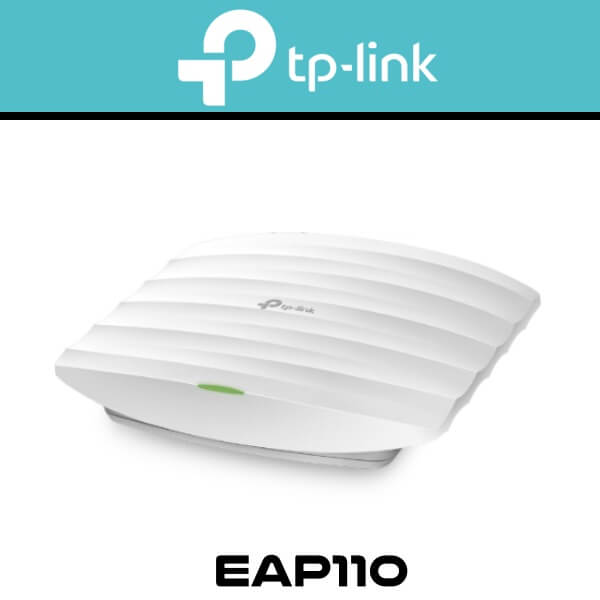

Tplink EAP110 Outdoor Access Point Dubai
Tplink EAP110 Dubai Outdoor is a wireless, outdoor access point. It is a perfect solution for wireless networks, particularly suitable for businesses, hotels and commercial facilities. Thanks to its well-thought-out design, casing, antennas, flexible power and mounting options and size, not much bigger than a smartphone, the EAP110 Outdoor is ideal both inside and outside of any building. It can be easily installed on a wall or on a pole, using the included mounting elements, and thanks to the IP65 certificate, we can guarantee that the EAP110 will survive even the harshest weather conditions. TP-Link EAP 110 Outdoor is managed by EAP Controller Software, which allows to configure and manage many devices of the series. Tplink EAP110 Dubai also has business class network security, supports radius 802.1X server, encryption, WPA/WPA2-Enterprise, MAC address filtering and detection of unauthorized access points.
Features:
Flexible Placement – Easy mounting design & PoE
The Tplink EAP110 Dubai’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Free Cloud Centralized Management – Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal – Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business using the Tplink EAP110 Dubai.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Technical Specifications
HARDWARE FEATURES

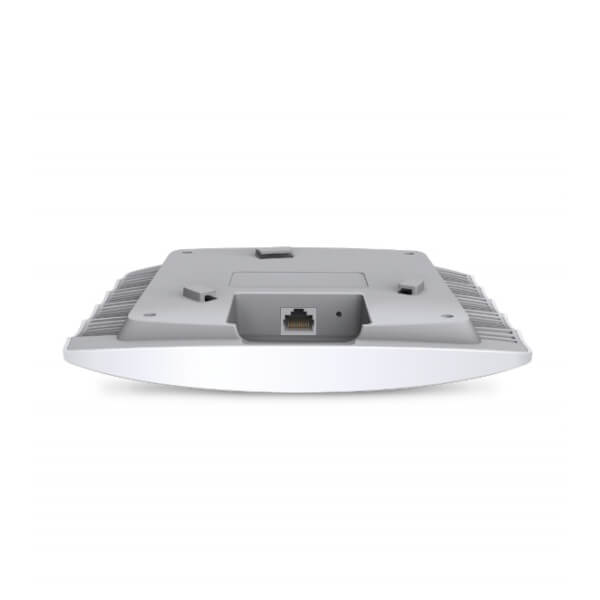

- Interface : Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
- Button : Reset
- Power Supply : 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption : 12 W
- Dimensions ( W x D x H ) : 2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
- Antenna Type : 2*5dBi External Omni waterproof
- Weatherproof Enclosure : IP65
- Mounting : Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
- Wireless Standards : IEEE 802.11n/g/b
- Frequency : 4GHz
- Signal Rate :
- 11n : Up to 300Mbps(dynamic)
- 11g : Up to 54Mbps(dynamic)
- 11b : Up to 11Mbps(dynamic)
- Transmit Power :
- CE ：≤20dBm (EIRP)
- FCC ：≤22dBm
- Wireless Functions :
- Multiple SSIDs（Up to 8 SSIDs）
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control （Adjust Transmit Power on dBm）
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security : Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
MANAGEMENT
- Auranet Controller Software : Yes
- Email Alerts : Yes
- LED ON/OFF Control : Yes
- Management MAC Access Control : Yes
- SNMP : Yes
- System Logging Local/Remote Syslog : Yes
- Telnet : Yes
- Web-based Management : HTTP/HTTPS
- L3 Management : Yes
- Multi-site Management : Yes
- Management VLAN : Yes
OTHERS
- Certification : CE, FCC, RoHS
- Package Contents :
- 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Waterproof Rubber Insert
- Waterproof Antennas
- Installation Guide
- System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment :
- Operating Temperature : -30℃~65℃ (-22℉~149℉)
- Storage Temperature : -40℃~70℃ (-40℉~158℉)
- Operating Humidity : 10%~90% non-condensing
- Storage Humidity : 5%~90% non-condensing
