Description

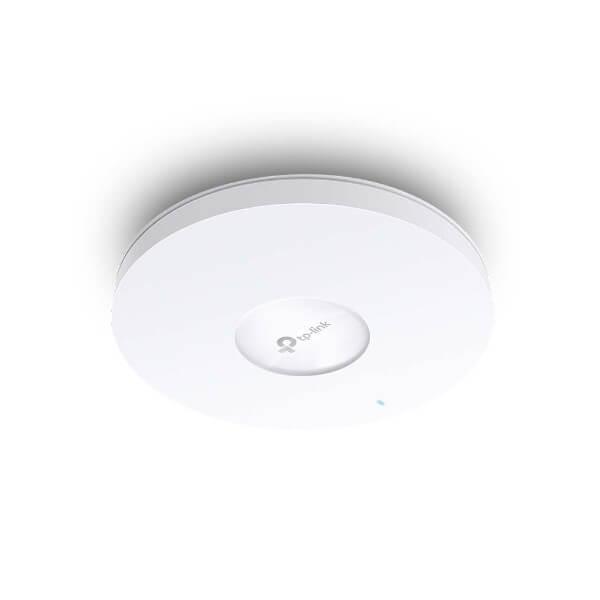

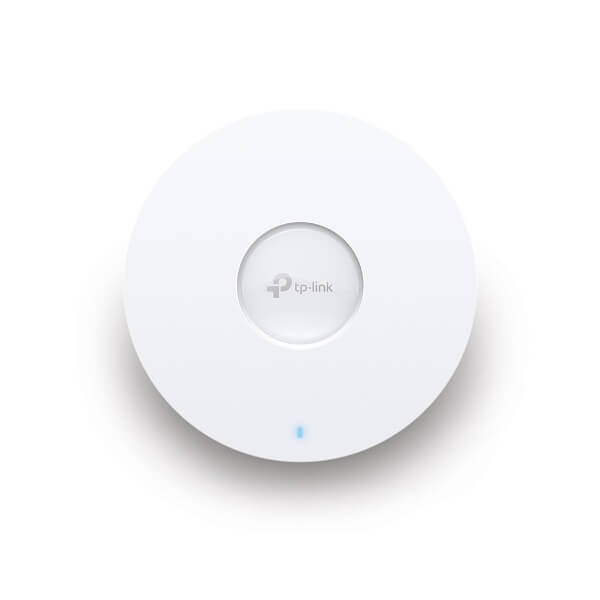

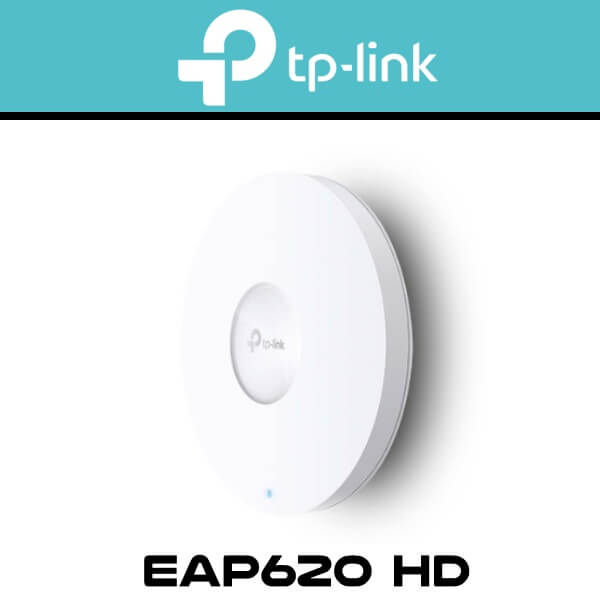

Tplink EAP620 HD Access Point Dubai

The Tplink EAP620 HD Dubai Omada WiFi 6 Access Point features the latest 802.11ax (WiFi 6) technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With eight (8) spatial streams, multi-user throughput is incredibly increased to drive more applications.

Features

Blazing Fast Speeds with 4 Spatial Streams

The Tplink EAP620 HD Dubai Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1800 Mbps. With 4 Spatial streams, multi-user throughput is increased to drive more applications.

Effortless Deployment with PoE+

With 802.3at Power over Ethernet (PoE+) supported, there is no need to install additional wiring. Simply plug in the existing Ethernet cables and you’re ready to go.

Easy to Mount with Refined Industrial Design

Experience the simplest installation ever performed and ceiling mount problems are a thing of the past with just 2 easy steps using the new Tplink EAP620 HD Dubai.

Gigabit Port with PoE+ for Next Level Performance

Tplink EAP620 HD Dubai delivers exceptional performance with a Gigabit Ethernet Port boosting total internet throughput for better Wi-Fi. Supports standard 802.3at PoE+ for flexible deployment and convenient installation.

Technical Details

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button	Reset
Power Supply	802.3at PoE 12 V DC
Power Consumption	EU : 12 W US : 13.5 W
Dimensions ( W x D x H )	9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type	Internal Omni 2.4 GHz : 2× 4 dBi 5 GHz : 2× 5 dBi
Mounting	Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz : Up to 1201 Mbps 2.4 GHz : Up to 574 Mbps
Wireless Functions	1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	CE : <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP)FCC : <25 dBm (2.4 GHz) <25 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Contents	EAP620 HD Power Adapter Ceiling/Wall Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment	Operating Temperature : 0–40 ℃ (32–104 ℉) Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
