Description

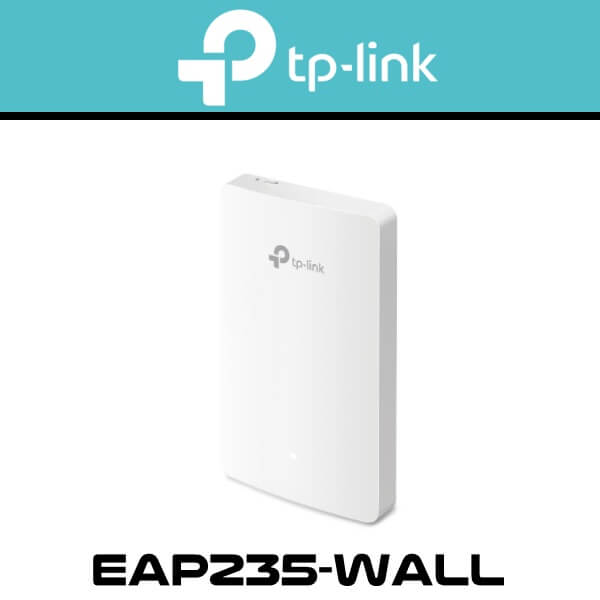

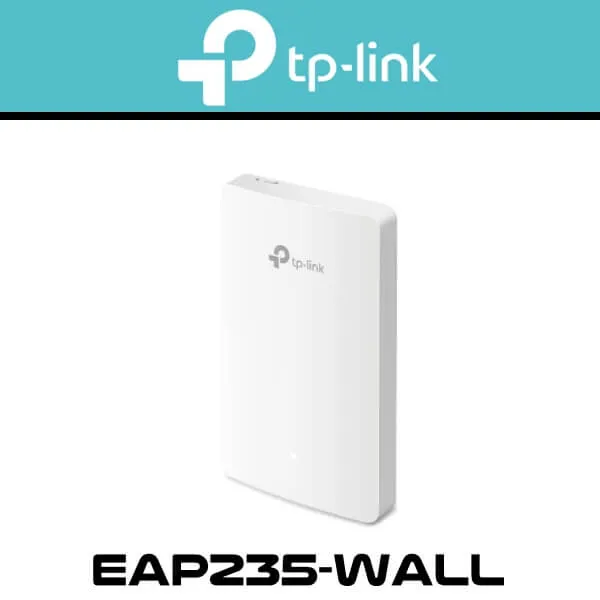

Tplink EAP235-Wall Network Switch Dubai
The Tplink EAP235-Wall Dubai is an Omada Wireless MU-MIMO Access Point which is fully compatible with Omada, allowing you to seamlessly control it using Omada app. For privacy, the EAP235-Wall enables you to easily set up a guest network which separates your work life from private life. It is an easy-to-deploy solution which does not require any additional cabling system. Tplink EAP235-Wall Dubai has built-in support for Power over Ethernet. It comes fitted with 3 Ethernet ports for easy connectivity to IP Cameras or IP Phones, thus eliminating the need to use an adapter.
Features
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Four Gigabit Ports: Tplink EAP235-Wall Dubai has 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Integrated into Omada SDN: Tplink EAP235-Wall Dubai supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

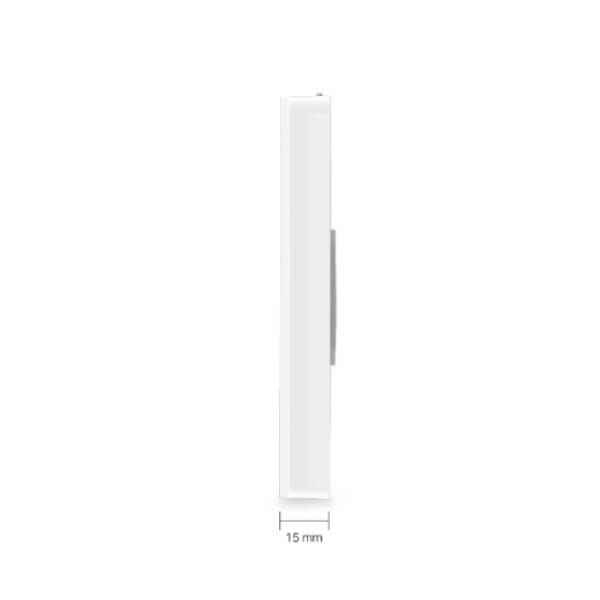

- Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy Installation and PoE Support: The Tplink EAP235-Wall Dubai allows for easy-mount construction, and is compatible with 86 mm & EU & US standard junction box, as well as built-in 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies using the new Tplink EAP235-Wall Dubai.
Technical Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas
|
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz : Up to 867 Mbps 2.4 GHz : Up to 300 Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | CE :
|
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment |
|
