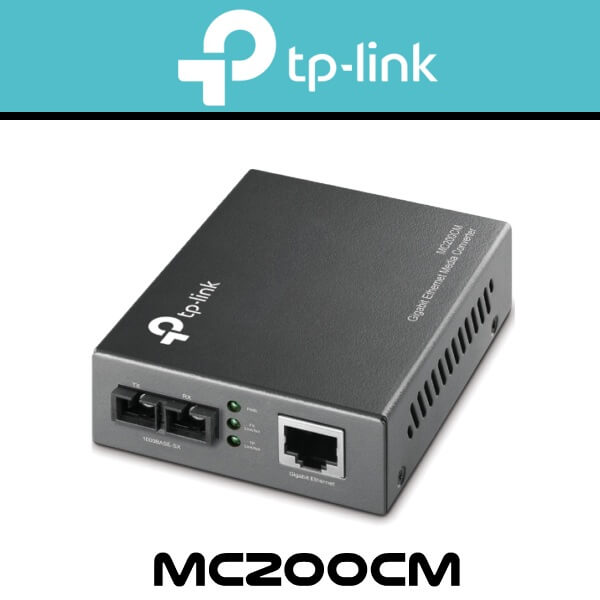

Tplink MC200CM Media Converter Dubai
The Tplink MC200CM Dubai is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Auto MDI/MDI-X for TX port, and front panel status LEDs. The Tplink MC200CM Dubai will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function |
|
| Ports |
|
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T |
|
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
