Yealink SkySound CS10 Dubai

Description

Yealink SkySound CS10 Dubai

The Yealink SkySound CS10 Dubai is distinguished by its discreet 2-way coaxial network speaker, which is well-known for delivering exceptional audio performance, particularly in video conferencing settings. Specifically crafted for contemporary meeting spaces, it seamlessly integrates high-quality sound with a sleek, minimalist design that complements modern conference rooms perfectly. Engineered with versatility and user-friendliness in mind, this Power over Ethernet (PoE) enabled speaker offers flexible deployment options, including compatibility with various supplementary components. This feature simplifies installation across different types of ceilings, making it an ideal choice for diverse meeting environments.

The refined design of the Yealink SkySound CS10 Dubai transcends its role as merely a speaker; it serves as an essential enhancement for your meeting space, enriching both auditory and visual aspects. Moreover, beyond its practical benefits, the CS10 exudes sophistication and technological elegance, making it the ultimate audio solution for professional settings. Its ability to seamlessly blend into any modern workspace while delivering outstanding audio quality makes it a top choice for those seeking a high-performance conferencing solution.

Key Features

Innovative Coaxial Structure : Equipped with a 2-way coaxial setup comprising a robust 5.7-inch LF Woofer and a distinctive 1.1-inch HF Tweeter, this speaker ensures precise audio reproduction.

High Performance Acoustics : Demonstrating outstanding acoustic properties, it boasts an 88-decibel sensitivity at 1 watt per meter and achieves a maximum sound pressure level of 99 decibels at 20 watts per meter, ensuring accurate and powerful audio performance.

PoE Enabled Active Speaker : The SkySound CS10 seamlessly merges advanced active speaker functionalities with a built-in DAC and PoE technology, facilitating effortless integration. This unique combination enables swift digital signal processing from the network, simplifying setup with minimal latency, ideal for diverse professional environments.

Dante Ready for Advanced Audio Networking : Offered in two variants : one featuring Dante compatibility and the other as a standard model, the SkySound CS10 effortlessly integrates into sophisticated audio networks, providing flexibility for complex configurations and full compatibility with Dante audio systems. Choose the Dante-enabled option to leverage its enhanced audio networking capabilities.

Versatile Deployment : With a variety of indoor installation options compatible with different ceiling types and grid systems, this speaker ensures smooth integration with any interior design scheme.

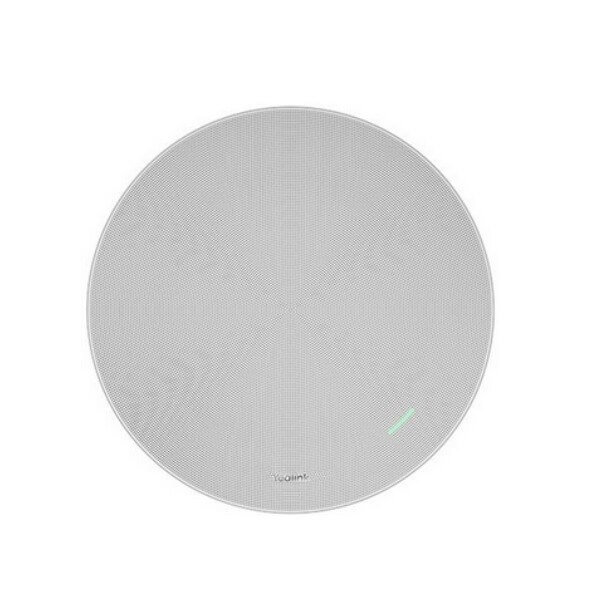

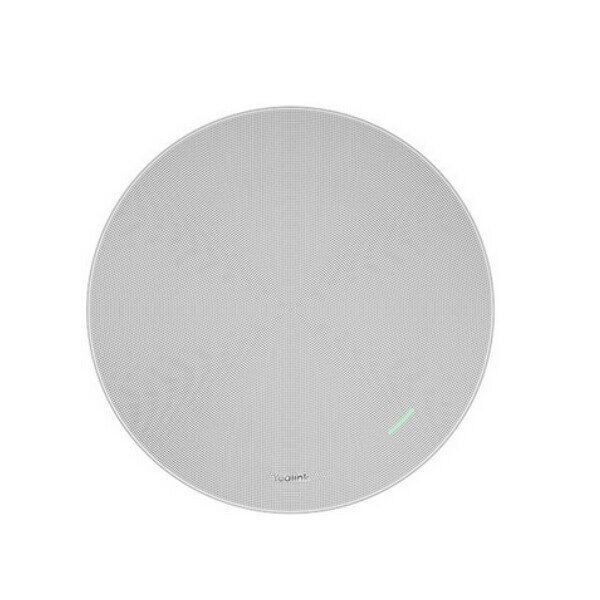

Sophisticated Design : Complete with a detachable magnetic grille, customizable to match your aesthetic preferences and available in black or white, the grille complements the speaker’s sleek design, measuring 120 mm to harmonize well with various modern interiors.

Specifications

Package Content

SkySound CS10 Speaker
White Mesh Cover (Black Optional)
Quick Star t Guide
Assembly Fixing Bracket
Dust Cover
Deployment Instruction Template
Bracing Bridge (Optional)
Dust Cover Screw*6 (M3*4CMHOZN3)

Audio Specifications

Frequency Response (6dB) : 10020kHz
Maximum SPL :
- Continuous : 99dB @20W 1m
- Sensitivity : 88dB@1m 1W

Speaker Specification

LF : 5.7inch (145 mm) woofer
HF : 1.1inch (28 mm) tweeter
Nominal Impedance : 8Ω
Nominal Coverage Angle : 120

Product Specifications

Size :
- ф294*H125.8mm (with cover mesh）
- ф2*H125mm (without cover mesh)
Weight :
- 2808g (without cover mesh) ；
- 207g (Cover mesh)
Product Color : white/black
Cover Mesh Color : white/black
Product Materials :
- Cover Mesh : PC/ABS Welded SPCC
- Main Body Shell : PA (Polyamide) with 15% GF
- Bottom Shell : aluminum alloy
- Cover Plate : PC/ABS and SGCC
- Plenum Rated UL 2043 (suitable for air handling spaces)
