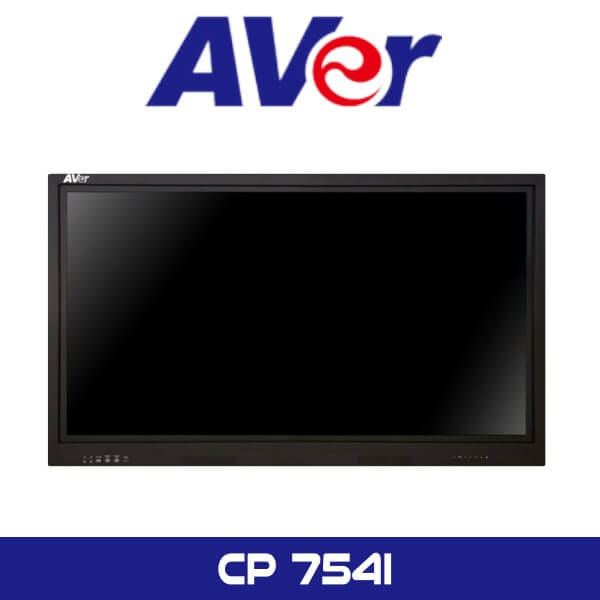

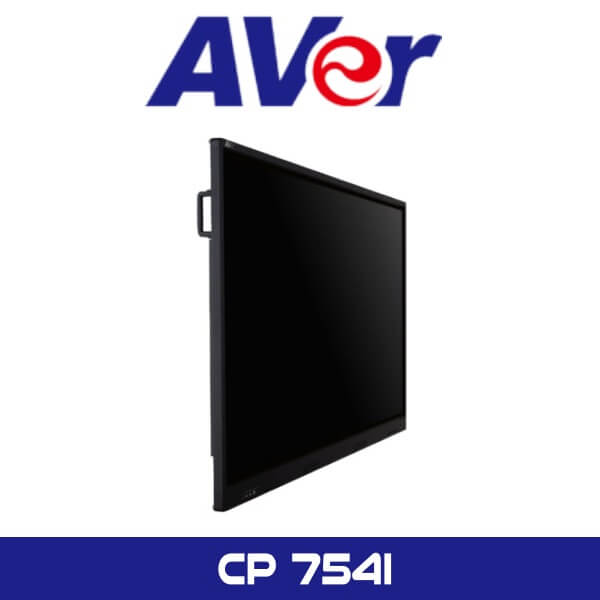

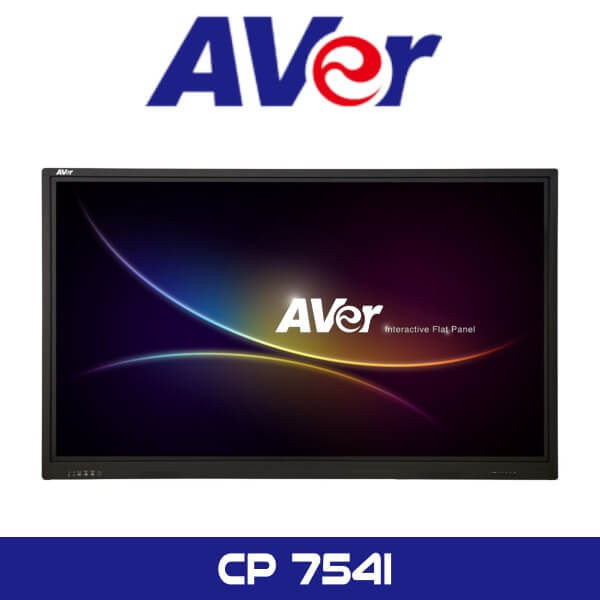

Aver CP754I Dubai



Aver CP754I Dubai

The Aver CP754I Dubai features 75″ Interactive Flat Panel that provides the perfect solution for all classrooms. Equipped with 4K UHD (3840×2160) resolution and Myndshare software which provides individual subject-specific learning tools for drawing, mathematics, literacy, geography and science.

Description

Aver CP754I Dubai

The Aver CP754I Dubai features 75″ Interactive Flat Panel that provides the perfect solution for all classrooms. Equipped with 4K UHD (3840×2160) resolution and Myndshare software which provides individual subject-specific learning tools for drawing, mathematics, literacy, geography and science. It features 10-point multi-touch and is constructed with anti-glare tempered glass, and is plug-n-play ready and compatible with all operating systems. Cover every lesson topic with unlimited content space, subject-primed templates, and flexibility to import files onto your whiteboard as you teach. Also, enhance student learning with the latest annotation tools and popular education apps found in the panel’s embedded Android OS. Classroom devices are able to interact directly with the Aver CP754 across all platforms and share content wirelessly without any app or add-on hardware installation. The Aver CP754I Dubai includes wall mount bracket and comes with a 5-year limited warranty.

Key Features

  • MyndShare software
    • Aver CP754I Interactive Panel provides effortless collaboration and engagement through MyndShare software that provides all the essential teaching tools needed for the classroom. Student devices are able to interact directly with the panel across all platforms and share content without any app installations.
  • Embedded Android OS
    • Aver CP754I Interactive Panel boasts of embedded Android OS. This app enhance student learning with the latest annotation tools and popular education apps. Teachers and students are therefore able to simultaneously collaborate and annotate over any application, anytime for better comprehension and have interactive learning experience.
  • Image quality
    • Aver CP754I Interactive Panel packs a 4K UHD (3840×2160) resolution allowing you to have amazing clarity that keeps students engaged no matter where they are seated in the classroom. Smooth anti-glare tempered glass keep the screen scratch, shadow, and reflection free. Every small details are clearly displayed regardless of the lighting conditions in the room.
  • Wireless experience
    • Aver CP754I Interactive Panel provide seamless interactions whether wired or wireless. Through the MyndShare software, teachers are able to easily create lesson plans integrating different classroom technology. The AVer CP series are the first and only interactive flat panels to provide seamless AVer document camera integration wirelessly
  • Advanced Built-in whiteboard
    • Aver CP754I Interactive Panel allow you to cover every lesson topic with unlimited content space, subject-primed templates, and flexibility to import files onto your whiteboard as you teach. This in-built whiteboard allows you to experience the beauty of simplicity and creativity all in one screen
  • Get the AVer “Touch” service
    • AVer organization offers the best onsite training and services to guarantee the ultimate product experience. Also provided is FREE 5-year “worry-free” onsite service program as part of  product’s standard warranty.

Aver CP754I Interactive Panel Specifications

Model: CP754I Specifications
Description Interactive Panel
Display Panel
Active Screen Size (inches) 75”
Display Backlight LED
Display Ratio Landscape 16:9
Resolution UHD3840 x 2160
LCD Brightness 450cd/m2
Contrast Ratio (typical) 1200:1
Response Time (typical) 8ms
Viewing Angle 178˚
Power Consumption <320W Standby Mode ≤0.5W”
Touch Surface Material Tempered Glass 4mm Level 7 MoHS
Touch Surface Technology Anti-Glare Glass
Transparency >88%
Touch Sensor Infrared
Touch Points 10 points (Win/Mac/Android); 1 point for Chrome
Touch Screen Writing Tools Writing Pen or Finger
Positioning Accuracy +-2mm (90% area)
Communication Interface USB-B x 5 (1xfront, 4xback)
Life Time Up to 50,000hrs
Frame Material Aluminum
Scalar MSD6A828
CPU Quad Core, ARM Cortex A53, 1.4GHz
GPU Mali450MP4(4+2)
Android Version Android 5.0.1
RAM 2GB
ROM 16GB
Speaker Position Forward
Speaker Max.Power Output 10W x 2
Physical Specs & Dimensions
Panel Dimension (without wall mount bracket thickness) 1736.8 x 109.5 x 1055.3 (L * W * H) mm
68.38×4.31×41.54 in
Packing Dimension 1990 x 350 x 1315 (L * W * H) mm
78.35×13.78×51.78 in
Net Weight 136 lbs (61.95kg ± 1.5kg) (incl. wall mount/ accessory)
Gross Weight 174 lbs (79.1kg ± 1.5kg)
VESA Mount Installation Position 600 x 400mm (4 x M8)
Connectivity
Front Interface Input Ports HDMI In x 1, Touch USB x 1, Android USB x 1, OPS USB x1, MIC x 1, Earphone x1
Bottom Ports HDMI In(MHL x 1) x4 HDMI Out x1 (for HDMI1/2/3), not include front HDMI and HDMI 4, LAN port x1, VGA in x1, VGA-Audio in x1
Rear Side Ports AV-Out x1, YPbPr In x1, AV In (RCA) x1 set Android USB3.0 x2, Android USB2.0 x1, Earphone x1, SPDIF x1, Touch USB-B x4, OPS USB x1, RS-232 In x1, RS-232 Out x1 OPS Slot x1
HDMI & HDCP Licensed
HDMI In 5
HDMI Out 1
VGA In 1
PC-Audio In 1
YPbPr 1
AV In 1
AV Out 1
TV-Mic In 0
TV-Audio Out 0
USB for Touch 5
USB for OPS PC 2
SD Reader 0
Earphone Out 2
SPDIF 1
OPS 1
USB2.0 Android 2
USB3.0 Android 2
DP 1 (HDMI to DP Converter included)
RS232 In x 1 / Out x 1
LAN RJ45 In x 1
Wall Mount Bracket Included
Mounting VESA 400mm×400mm, 4xM6
Product Features & Software
Embedded Android OS Yes
Android Annotation Yes
IR Remote control Yes
Writing Pen Yes
OPS Embedded Computer Optional
Interactive Software Yes
Warranty & Service
Warranty 5 years
Onsite Service Yes
