The AVer PTZ310W Dubai Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world.

Description

Aver PTZ310W Professional PTZ Camera Dubai

The Aver PTZ310W Dubai allows you to capture 1080p images and videos via its 1/2.8″ CMOS sensor. The PTZ310W features a 12x optical zoom, a 12x digital zoom, and it supports flip and mirror image options.

The Aver PTZ310W Dubai features 10 angle preset locations via IR and 255 presets via RS-232, and you can control the ±170° pan and -30 to +90° tilt range and speed. The camera offers 3G-SDI and HDMI outputs, micro-USB video output, LAN streaming via RTP/RTSP, embedded and stereo audio input, and RS-422/RS-232/VISCA-over-IP control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording.

Top Features

High-Quality Video

The AVer PTZ310W Dubai Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world.

Seamless Tracking

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot preset zone tracking, you can create an uncompromising multi-camera feel with just one Aver PTZ310W Dubai across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Wide FOV

AVer’s SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed, so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Versatile Camera Motion Control

The Aver PTZ310W Dubai advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310W is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Preset Location Functionality

Preset the Aver PTZ310W Dubai  with up to 255 different locations through VISCA via RS-232 and RS-422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.

Compatible Software

Crestron, Echo360, Extron, KALTURA, Panopto, vMix, ZOOM, Telestream

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered.

AVer PTZ310W Specs

Image Sensor

Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Horizontal Resolution (TV Lines) 800 TV Lines
Sensor Resolution Effective: 2.1 Megapixel (1920 x 1080)
Signal-to-Noise Ratio 50 dB
Minimum Illumination 0.4 Lux

Camera

Shutter Speed 1/1 to 1/32,000 sec
Max Digital Zoom 12x
Built-In Speaker No
Built-In ND Filter None
Flip / Mirror Support Image Flip, Mirror (Vertical)

Lens

Optical Zoom Ratio 12x
Focal Length 3.9 to 46.8mm
Field of View Horizontal: 72.5 to 6.6°
Maximum Aperture f/1.6 to 2.8
Minimum Focus Distance Wide: 11.8″ / 0.3 m
Telephoto: 59.1″ / 1.5 m
Focus Control Autofocus
Manual Focus

Video Output

Output Formats SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
IP Streaming H.264, MJPEG, RTMP, RTP, RTSP, TCP, UDP: 1080p, 720p, 480p at 30p, 60p (32.00 Mb/s)
IP Multi-Stream Support Yes

Control

Presets 10 via IR
255 via RS-232
Move Speed Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
RS-232
RS-422
VISCA

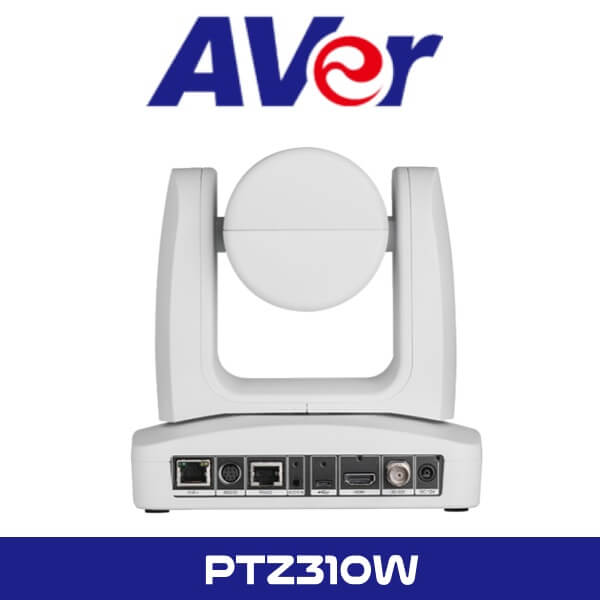

Interfaces

Video Output Connectors 1 x BNC (3G-SDI) Female
1 x HDMI Type A Female
1 x RJ45 (HX / NDI) Female
1 x Micro-USB 2.0 Type-B (USB Video) Female
Audio I/O 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
Control Interface 1 x RJ45 (RS-422)
1 x 9-Pin D-Sub (RS-232)
Other I/O 1 x RJ45 (LAN) Input/Output

Power

PoE Support PoE+ 802.3at
Power Connectors 1 x Barrel / Coaxial (12 VDC at 5 A)
Power Consumption Power Supply: 100 to 240 VAC

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%
