Aver PTC500Plus Dubai

Description

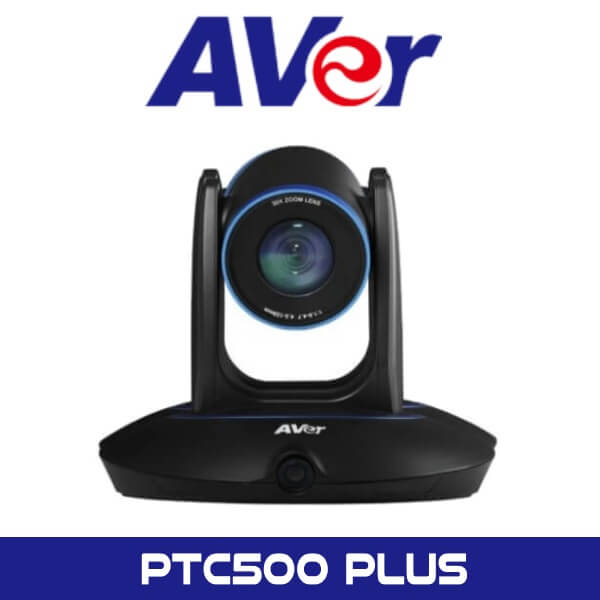

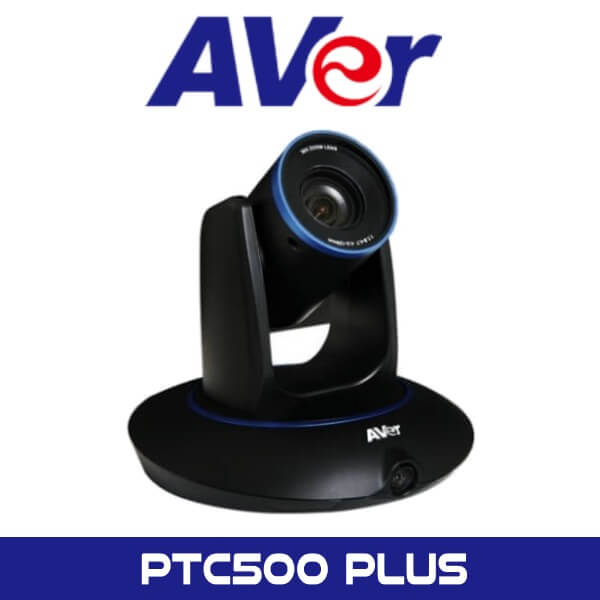

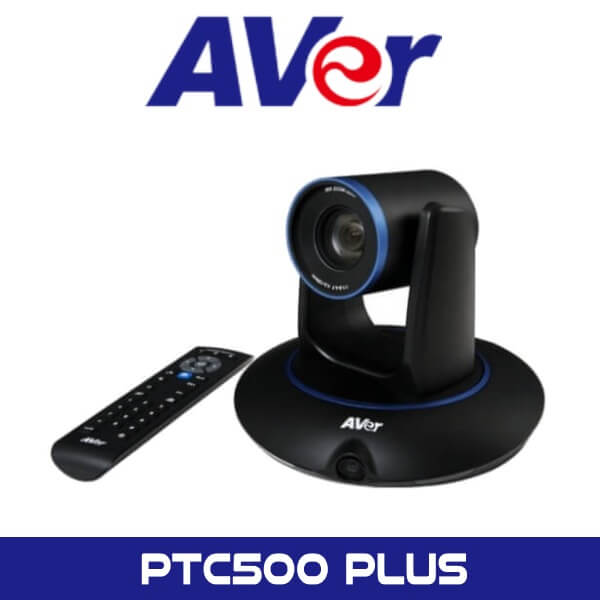

Aver PTC500Plus Professional Auto Tracking Camera Dubai

The Aver PTC500Plus Dubai Professional Auto Tracking Camera with Wide Area Tracking, USB Connectivity, Dual Lens Design,30X Optical Zoom and Multi-Presenter Detection. New USB connectivity for the Aver PTC500Plus Dubai allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime. A PTZ camera with a 30X optical zoom and a 350° pan and 120° tilt radius make the Aver PTC500Plus Dubai ideal for large classrooms or auditoriums. Full HD 1080p 60fps video and a powerful remote autofocus function display important details distinctly, capturing the full joy of the classroom with the most realistic and dynamic image quality.

The Aver PTC500Plus Dubai uses exclusive algorithms to automatically track a presenter’s face and movements. That means teachers can freely walk around the class to guide students without any accessories. Forget about the restrictions, security, and expense of a wearable device, and focus on building zero-distance interactive teaching. A dual-lens design integrates a PTZ camera with a panoramic 120° FOV secondary camera to track the speaker and simultaneously capture the classroom. Also, you can enable and adjust the PIP mode while capturing. Clearly present every detail and never miss a teachable moment. Multi-Presenter Detection accurately helps when there are two or more people in the effective area. This feature allows the Aver PTC500Plus Dubai camera to continue tracking when teachers conduct group discussions, interactive games, and more in front of the class. Use one camera to capture every detail of every learning situation.

Aver PTC500Plus Features

USB Connectivity
Up to 30X Optical Zoom
No Extra Devices Needed
Dual Lens Design
Three AI Tracking Modes
Wide Area Tracking
Stage Tracking
Segment Tracking

Technical Specifications

Camera

Image sensor
- 1/2.8″ 1080p Exmor CMOS
Effective Picture Elements
- 2 Megapixels

Output Resolutions
- Auto, 1080p/60, 1080p/50, 1080p/30, 1080i/60, 1080i/50, 720p/60
Minimum Illumination
- 0.47 Lux (IRE50, F1.6, 60fps); 0.23 Lux (IRE50, F1.6, 30fps)

S/N Ratio
- >50dB
Gain
- Auto, Manual

TV Line
- 900 (Center), 600 (Corner)
Shutter Speed
- 1/5 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS)
White Balance
- Auto, Manual

Optical Zoom
- 30X
Digital Zoom
- 12X

Sensor Zoom
- 1X
Viewing Angles
- DFOV : 73° (Wide) to 2.6° (Tele)
- HFOV : 65° (Wide) to 2.3° (Tele)
- VFOV : 38° (Wide) to 1.3° (Tele)

Focal Length
- f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris)
- F = 1.6 (Wide) to 4.7 (Tele)

Minimum Working Distance
- 0.1 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±175°
- Tilt : +90°/-30°

Pan / Tilt Speed (Manual)
- Pan : 2° to 50°/sec
- Tilt : 2° to 50°/sec
Preset Speed
- Pan : 160°/sec
- Tilt : 160°/sec

Preset Positions
- 10 (IR), 256 (RS-232)
Camera Control – Interfaces
- RS-232 (DIN8)/IP

Camera Control – Protocols
- VISCA (RS-232/IP)
- PELCO-D & PELCO-P (RS-232)
- CGI (IP)
Image Processing
- Noise Reduction

Power Frequencies
- Auto, 50 Hz, 60 Hz

Panoramic Camera (Full View)

Image Sensor
- 1/2.8″ 60fps low lux CMOS sensor
Effective Picture Elements
- 2 Megapixels

Output Resolutions
- auto, 1080p/60, 1080p/30, 720p/60
Focal Length
- 2.12 mm

White Balance
- Auto
Exposure
- Auto

Viewing Angles
- DFOV = 120°
- HFOV = 110°
- VFOV = 74°

AI Auto Tracking Functions

Tracking Modes
- Wide Area, Stage, Segment

Audio

Channels
- 1ch Mono (RTSP)
- 2ch Stereo (HDMI/UAC)
Codecs
- AAC-LC (48K)
- G.711 (8K)

Sample Rate
- 48/8 KHz

Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- HDMI, IP, USB

Audio Inputs
- Line in

General

Power Requirement
- AC 110–220V to DC 12V/5A
Power Consumption
- 24W

PoE
- PoE+
Dimensions (W x H x D)
- 202 x 178 x 210 mm

Net Weight
- 1.75 (±0.1) kg
Application
- Indoor

Tally Lamp
- N/A
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0°C to 40°C
- Humidity : 20% to 80%

Storage Conditions
- Temperature : -20°C to 60°C
- Humidity : 20% to 95%

IP Streaming

Resolution
- 1080p 60fps (Dual Stream)
Network Video Compress Formats
- H.264, MJPEG

Maximum Frame Rate
- 1080p 60fps (Dual Stream)
Bit-Rate Control Modes
- CBR

Bit-Rate Range Setting
- 512 Kbps to 6 Mbps
Network Interface
- 10/100/1000 Base-T

Multi-stream Capability
- 3 (2 for RTSP, 1 for Web Page)
- 1080p 60fps (max.)
Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF
