Aver PTZ330UNV2 Dubai



Aver PTZ330UNV2 Dubai

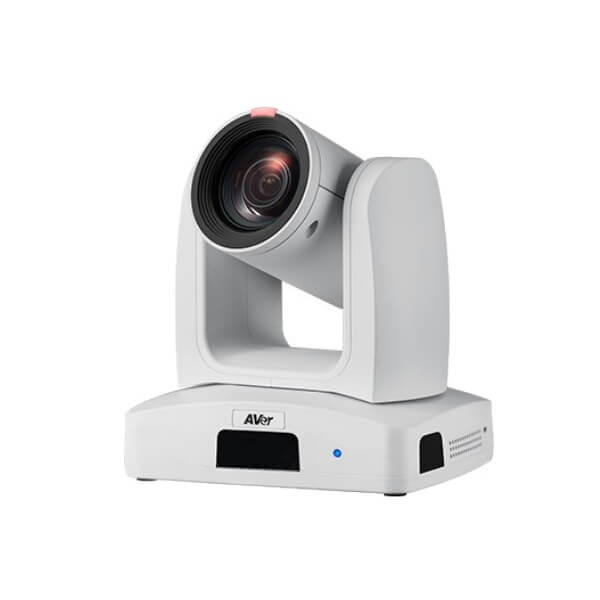

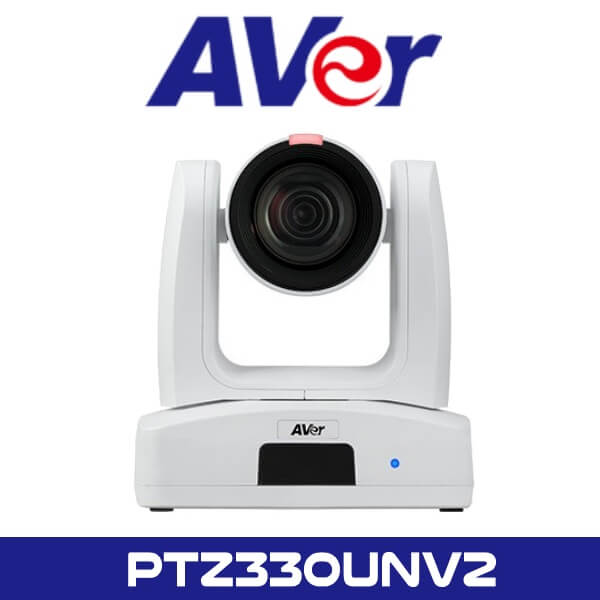

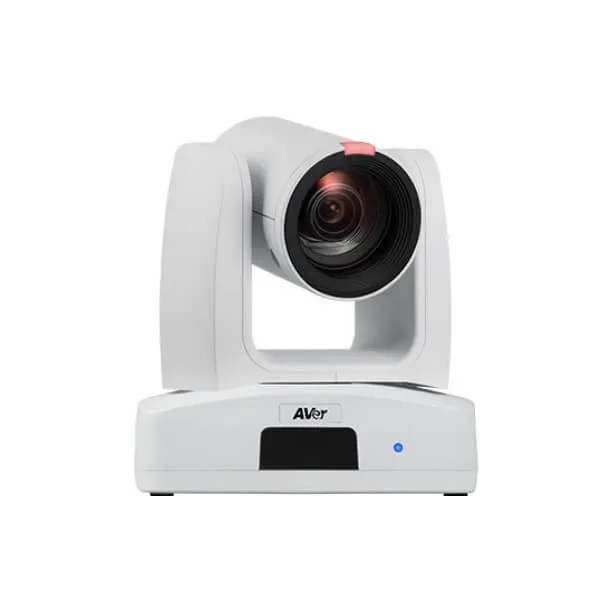

Elevate your streaming game to professional levels with the Aver PTZ330UNV2 Dubai NDI®|HX3 PTZ Camera! This state-of-the-art device offers unparalleled streaming capabilities, delivering stunning 4K resolution at a smooth 60 frames per second through multiple output options including HDMI, USB, and IP.

Description

Aver PTZ330UNV2 PTZ Camera Dubai

Elevate your streaming game to professional levels with the Aver PTZ330UNV2 Dubai NDI®|HX3 PTZ Camera! This state-of-the-art device offers unparalleled streaming capabilities, delivering stunning 4K resolution at a smooth 60 frames per second through multiple output options including HDMI, USB, and IP. With its advanced 30X optical zoom lens, you can effortlessly capture every intricate detail of your presentation or event. Plus, thanks to its embedded intelligent SmartShoot technology, you have the power to adapt and optimize your shots for maximum clarity and impact. Don’t settle for ordinary streaming setups – upgrade to the Aver PTZ330UNV2 Dubai and take your streams to new heights of professionalism and quality!

Features

NDI® HX3 Compatible. The Latest and Greatest

Revolutionize your streaming with Aver PTZ330UNV2 Dubai’s NDI® HX3 technology! Enjoy lossless, low-latency video streaming without the hassle of a complicated setup. Experience the convenience of pan, tilt, and zoom functions. Get your hands on this next-generation tech and take your streaming to the next level!

30X Optical Performance. Harness the Power of Zoom

The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you’ll never miss a moment of any occasion.

4K Ultra HD. A New Level of Clarity

With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the Aver PTZ330UNV2 Dubai takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

HDMI/USB/IP + 4K 60 fps. Smoother Streams

NDI® has praised the Aver PTZ330UNV2 Dubai for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

SmartShoot. Keep People and Content in Focus

With embedded SmartShoot, the PTZ330UNV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

PTZ Link. Bring Voice Tracking to PTZ Cameras

PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifcations

Camera

  • Image Sensor
    • 1/2.8” 4K Exmor CMOS
  • Effective Picture Elements
    • 8 Megapixels
  • Output Resolutions
    • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50 dB
  • Gain
    • Auto, Manual
  • TV Lines
    • 1400 (Center/Wide)
  • Shutter Speed
    • 1/1 to 1/32,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual, ATW, One Push
  • Optical Zoom
    • 30X
  • Digital Zoom
    • 1X
  • Total Zoom
    • 30X
  • Viewing Angles
    • DFOV: 69.2° (Wide) to 2.8° (Tele)
    • HFOV: 62.3° (Wide) to 2.5° (Tele)
    • VFOV: 37.3° (Wide) to 1.4° (Tele)
  • Focal Length
    • f = 4.5 mm (Wide) to 135 mm (Tele)
  • Aperture (Iris)
    • F = 1.8 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • 0.1 m (Wide)
    • 1.2 m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control – Interfaces
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
  • Camera Control – Protocols
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • ONVIF
  • Image Processing
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
  • Power Frequencies
    • 50 Hz, 60 Hz

AI Function

  • Mode
    • SmartShoot

Audio

  • Channels
    • 2ch Stereo
  • Codecs
    • AAC-LC

Interface

  • Video Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in

General

  • Power Requirement
    • AC 100 – 240V to DC 12V/2A
  • Power Consumption
    • 19W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 180.0 x 192.0 x 145.0 mm
  • Net Weight
    • 2.0 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

  • Resolution
    • 4K 60fps
  • Network Video Compress Formats
    • H.264, H.265, MJPEG
  • Maximum Frame Rate
    • 4K 60fps
  • Bit-Rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate Setting
    • 512 Kbps to 120 Mbps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability**
    • 5
    • 4K 60fps: RTSP, HDMI, USB & NDI® HX
    • 1080p 60fps: 3G-SDI
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI®|HX3
    • Yes
  • NDI® Genlock
    • Yes (available in Q3)

USB

  • Connector
    • USB 3.1
  • Video Formats
    • MJPEG, YUY2
  • Maximum Video Resolution
    • 2160p
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0

Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment
    • Exposure, White Balance, Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool
    • Support Windows® 7 or later
  • PTZ Management
    • Support Windows® 7 or later
  • PTZ Control Panel
    • Supports iOS & iPadOS® 11 or later
  • PTZ Link
    • Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras
    • Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare
    • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

  • Camera
    • 5 Years
  • Accessories
    • 1 Year
  • Package Contents
    • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
