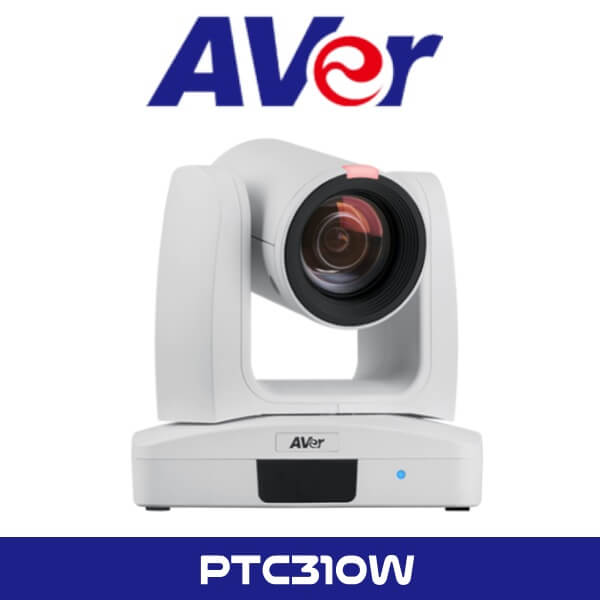

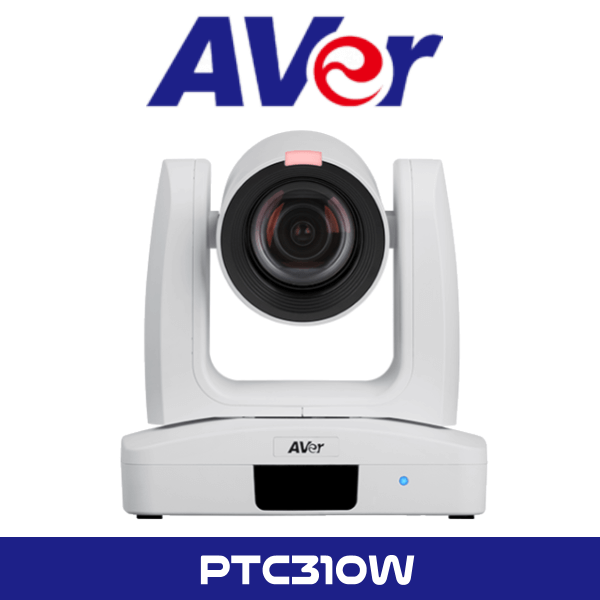

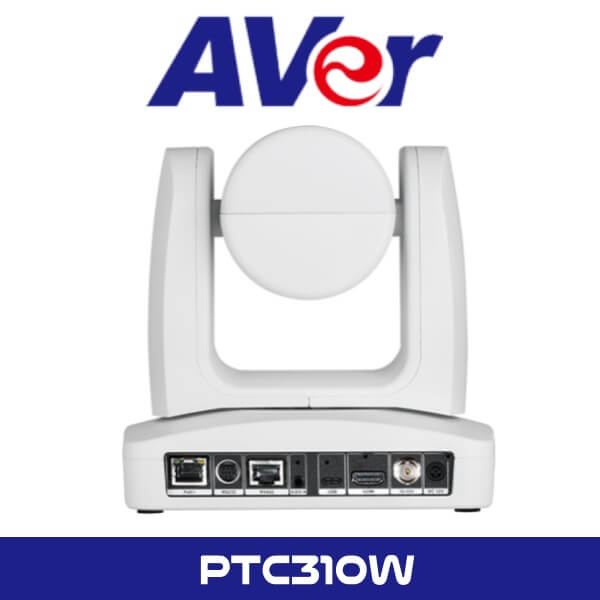

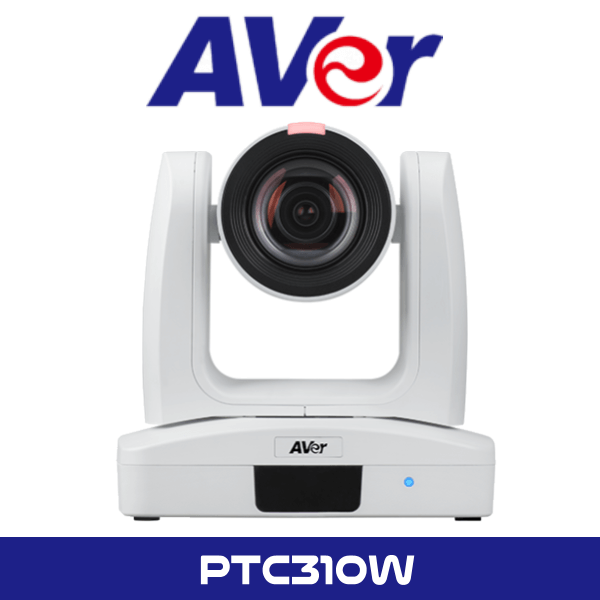

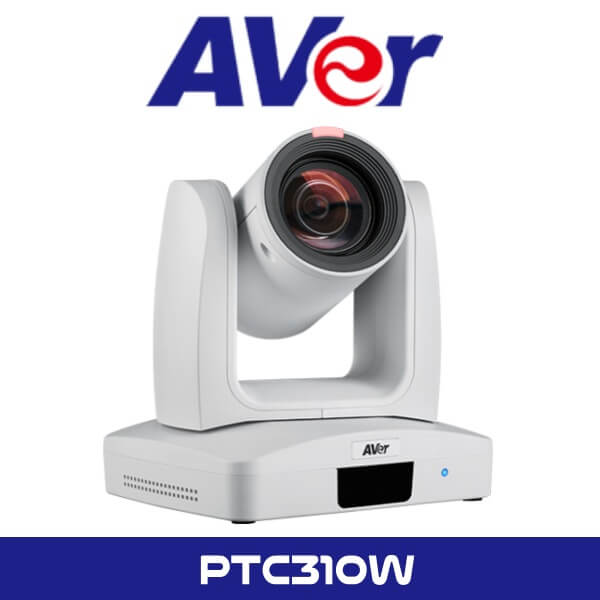

AVer PTC310W Dubai



AVer PTC310W Dubai

The AVer PTC310W Dubai auto-tracking camera has an Ultra High Definition resolution of 1080p for enhanced image clarity. It also onboards a Sony sensor whose excellent performance ensures that you enjoy high-quality video during your productions.

Description

AVer PTC310W AI Auto Tracking Camera Dubai

The technologically advanced AVer PTC310W Dubai conference camera comes with a pre-installed Human Detection Artificial Intelligence system that easily detects and captures human forms and moving objects. This way, you don’t miss targets whilst tracking. The AVer PTC310W Dubai enables you to redirect focus by clicking on a target to quickly adjust the shooting angle and start the tracking process. All this has been made easy as you can operate through the remote control or Web UI.

AVer PTC310W Features :

  • High Definition Video
    • The AVer PTC310W Dubai auto-tracking camera has an Ultra High Definition resolution of 1080p for enhanced image clarity. It also onboards a Sony sensor whose excellent performance ensures that you enjoy high-quality video during your productions.
  • Zooming Performance
    • The AVer PTC310W Dubai has a zooming power of up to 24× (12× optical zoom and 2× sensor zoom). Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change shooting angles. The AVer PTC310W has been designed to let you enjoy clear video content, even from close up, without experiencing motion blurs or pixilation.

Why the Aver PTC310W?

  • The camera’s presenter mode enables you to easily track targets everywhere. As the main presenter at the meeting, you do not have to stand or sit at one point all through your presentation. You can move around and interact with the audience while being continuously tracked by the AVer PTC310W. The camera focuses on its target, ignoring other distractions during presentations.
  • Its Zone Mode improves your ability to capture content on multiple displays. It gives you an option to create up to four content zones, capturing the content on display instead of the presenter’s movements.

AVer PTC310W Specifications :

Image sensor 1/ 2.8″ 1080p

Exmor CMOS

Effective Picture Elements 2 megapixels
Output Resolutions –          1080p/60, 1080p/59.94,1080p/50,1080p/30

–          1080p/29.97,1080p/25,1080i/60

–          1080i/50,720p/60,720p/59.94,720p/50

Minimum Illuminations 0.4 lux (IRE50, F 1.6, 30fps)
S/N Ratio ≥50dB
Gain Auto, manual
TV Line 900 (center)
Shutter Speed 1/1 to 1/32000 sec
Exposure Control Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR
White Balance Auto, Manual
Optical Zoom 12×
Digital Zoom 12×
Sensor Zoom
Viewing Angles DFOV: 78°(Wide) to 7°(Tele)

HFOV: 70° (Wide) to 6° (Tele)

VFOV: 42° (Wide) to 3°(Tele)

Focal Length f = 3.9mm (Wide) to 46.8mm (Tele)
Aperture (Iris) F = 1.6mm (Wide) to 2.8 (Tele)
Minimum Working Distance 0.3m (Wide), 1.5m (Tele)
Pan/Tilt Angles Pan: ±170°

Tilt: +90°/-30°

Pan/Tilt Speed (Manual) Pan: 0.1° to 100°/sec

Tilt: 0.1° to 100°/sec

Preset Speed Pan: 200°/sec

Tilt: 200°/sec

Preset Positions 10 (IR), 256(RS -232)
Camera Control – Interfaces RS -232 (DIN8), RS – 422(RJ45), IP
Camera Control – Protocols VISCA, PELCO – D (RS -232/RS – 422/IP), CGI (IP)
Image Processing Noise Reduction (2D/3D), Flip, Mirror
Power Frequencies 50Hz, 60 Hz
Tracking modes Presenter Mode, Zone Mode
Channel 2 channel (Stereo)
Codecs AAC – LC (48/44.1/32/24K), G.711, PCM (8K)
Sample Rates 48/44.1/32/24/16/8kHz
Video Outputs 3G – SDI, HDMI, IP, USB
Audio Outputs 3G – SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
Power Requirement AC100V – AC240V to DC12V/5A
Power consumption 18W
PoE PoE+
Dimensions (W × H × D) 180.0× 183.5 × 145.0mm
Net Weight 1.7(±0.1) kg
Application Indoor
Tally Lamp Yes
Security Kensington slot
Remote Control Infrared
Operating Conditions Temperature: 0° to +40°C

Humidity: 20% to 80%

Storage Conditions Temperature: -20° to +60°C

Humidity: 20% to 95%

Resolution 1080p 60fps
Network Video Compress formats H.264, H.265 MJPEG
Maximum frame Rates 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512Kbps to 32Mbps
Network Interfaces 10/100/1000 Base -T
Multi-Stream Capability 2 (RTSP/web page), 1080p 60fps (max)
Network protocols IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
NDI® |HX Capability Yes (optional)
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class UVC1.1
USB Audio Class UAC1.0
Live Video Preview Yes
Camera PTZ control Pan, Tilt, Zoom, Focus, Preset control
Camera/Image adjustment Exposure, White balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet mask, DNS
IP Search & configuration tool Support Windows® 7 or later

Package Contents

  • The Aver PTC310W Camera
  • Remote control
  • Power Adapter
  • Power cord
  • Cable Ties (×5)
  • Screws (×10)
  • Cable Fixing Plates (×2)
  • Ceiling Mount Brackets (×2)
  • Quick Start Guide
