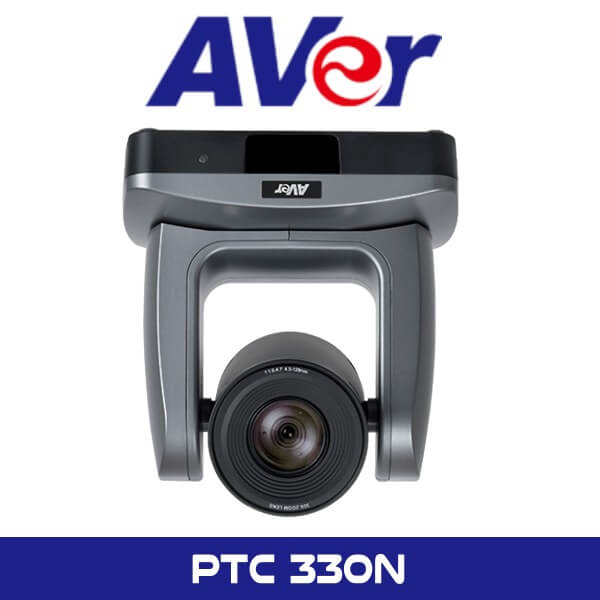

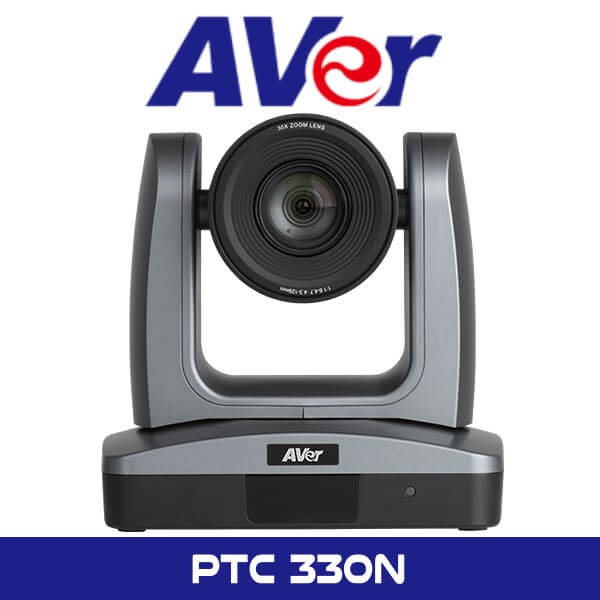

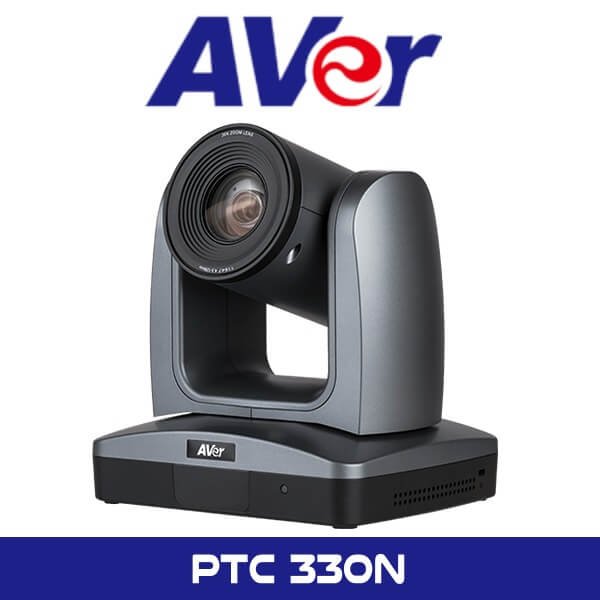

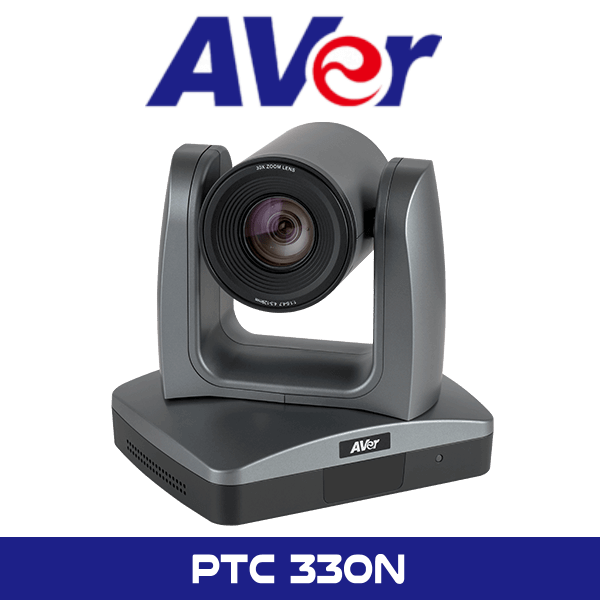

Aver PTC330N Dubai



Aver PTC330N Dubai

Aver PTC330N AI  Dubai complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming via IP connection. This facilitates faster and simpler broadcasting, allowing users to stream for larger audiences with cheap simple equipment.

Description

Aver PTC330N Dubai

The Aver PTC330N AI Dubai, features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Aver PTC330N AI also packs 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording for exciting audio and video capturing. NDI is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows. Aver PTC330N AI  Dubai boasts of advance features like an advance Human Detection technology and tracking modes including: presenter mode which enhance presenter flexibility; zone mode and hybrid modes giving you to enhance ability to capture content on multiple display.

Aver PTC330N AI  Dubai Features

  • Full NDI®|HX for Greater Reach
    • Aver PTC330N AI  Dubai complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming – all via IP connection. It facilitate faster and simpler broadcasting, allowing users to stream for larger audiences without complicated and expensive equipment. It is designed to achieve efficiency and flexibility IP workflows at will.
  • Full HD 1080p Output Resolution
    • Aver PTC330N AI  Dubai is equipped with Full HD 1080p resolution, providing ultra-precise auto tracking. The PTC330N also features a Sony sensor that maintains a truly impressive video performance through every frame of your production without distorting any image details. Colors come out vividly with clarity
  • 30X Optical Zoom & 2X Sensor Zoom
    • Aver PTC330N AI  Dubai boasts of zoom power with an incredible 60X (30X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC330N.
  • Human Detection AI
    • Aver PTC330N AI  Dubai has an advance Human Detection technology. This highly accurate processing function enables your camera to easily detect and capture human forms and moving objects in seconds. This feature guarantees you quality video streaming and recording, you will never miss a tracking target with PTC330N AI.
  • Click & Track
    • Aver PTC330N AI allows instant redirection of  focus. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive web UI.
  • Presenter Mode
    • Aver PTC330N AI is equipped with a presenter Mode to ensure you do not miss any details. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
  • Zone Mode
    • Aver PTC330N AI Dubai has Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
  • Hybrid Mode
    • Hybrid Mode provides the utmost freedom of movement for performing artists. Aver PTC330N AI Dubai enables you to preset effective areas for Zone Tracking in advance, so that once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode ensuring recording targets are not missed

Specifications

  • Camera

  • Image Sensor
    • 1/2.8″ 1080p Exmor CMOS
  • Effective Picture Elements
    • 2 Megapixels
  • Output Resolutions
    • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 0.7 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50dB
  • Gain
    • Auto, Manual
  • TV Line
    • 900 (Center)
  • Shutter Speed
    • 1/1 to 1/10,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual
  • Optical Zoom
    • 30X
  • Digital Zoom
    • 12X
  • Sensor Zoom
    • 2X
  • Viewing Angles
    • DFOV : 72.9° (Wide) to 2.64° (Tele)
    • HFOV : 65.1° (Wide) to 2.34° (Tele)
    • VFOV : 38.4° (Wide) to 1.36° (Tele)
  • Focal length
    • f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • Wide: 0.01 m, Tele: 1.2 m
  • Pan/Tilt Angles
    • Pan: ±170°, Tilt: +90° / -30°
  • Pan/Tilt Speed (Manual)
    • Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec
  • Preset Speed
    • Pan: 200°/sec, Tilt: 200°/sec
  • Preset Positions
    • 10 (IR), 256 (RS-232 / RS-422 / IP)
  • Camera Control – Interfaces
    • RS-232 (DIN8), RS-422 (RJ45), IP
  • Camera Control – Protocols
    • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
  • Image Processing
    • Noise Reduction (2D / 3D), Flip, Mirror
  • Power Frequencies
    • 50Hz / 60Hz
  • AI Auto Tracking Functions

  • Tracking Modes
    • Presenter Mode, Zone Mode, Hybrid Mode
  • Audio

  • Channel
    • 2ch Stereo
  • Codecs
    • AAC-LC (48 / 44.1 / 32 / 24K)
  • Sample Rates
    • 48 / 44.1 / 32 / 24 / 16 / 8 KHz
  • Interface

  • Video Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in
  • General

  • Power Requirement
    • AC100V – AC240V to DC12V/5A
  • Power Consumption
    • 18W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 180.0 x 183.5 x 145.0 mm
  • Net Weight
    • 1.7 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature: 0°C to +40°C ; Humidity: 20% to 80%
  • Storage Conditions
    • Temperature: -20°C to +60°C ; Humidity: 20% to 95%
  • IP Streaming

  • Resolution
    • 1080p 60fps
  • Network Video Compress Formats
    • H.264, H.265
  • Maximum Frame Rate
    • 1080p 60fps
  • Bit-rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate Setting
    • 512 Kbps to 32 Mbps
  • Network Interfaces
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 2 (RTSP / Web Page), 1080p 60fps (max.)
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  • NDI®|HX Capability
    • Yes (NDI HX2)
  • USB

  • Connector
    • USB 3.0
  • Video Formats
    • MJPEG, YUY2
  • Audio Format
    • PCM
  • Maximum Video Resolution
    • 1080p
  • USB Video Class
    • UVC1.1
  • USB Audio Class
    • UAC1.0
  • Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan, Tilt, Zoom, Focus, Preset Control
  • Camera/Image Adjustment
    • Exposure, White Balance, Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Software Tools

  • IP Search & Configuration Tool
    • Support Windows® 7 or later
  • Warranty

  • Camera
    • 3 Years
  • Accessories
    • 1 Year
  • Package Contents
    • Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable
