Aver PTC330 Dubai



Aver PTC330 Dubai

Aver PTC330 Al Auto features in-house AI functions including, Presenter Mode, Zone Mode and Hybrid Mode auto tracking Human. The Aver PTC330 combine the 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming and recording.

Description

Aver PTC330 Dubai

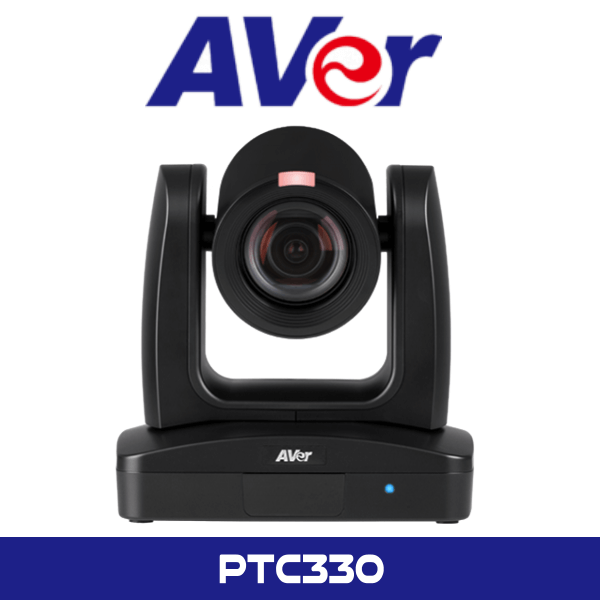

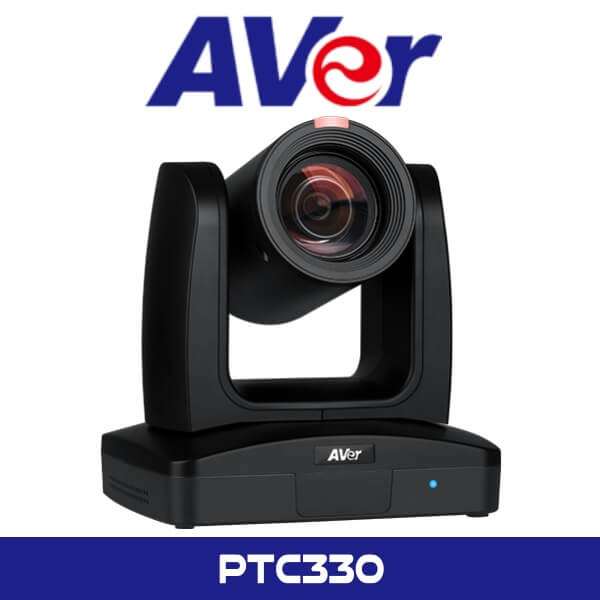

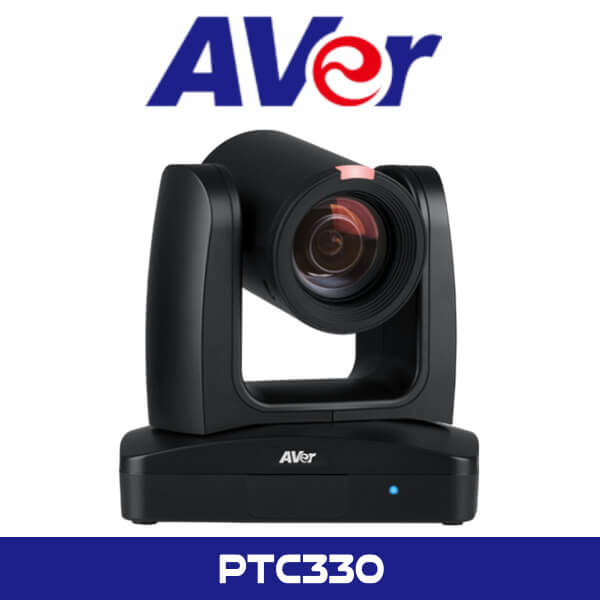

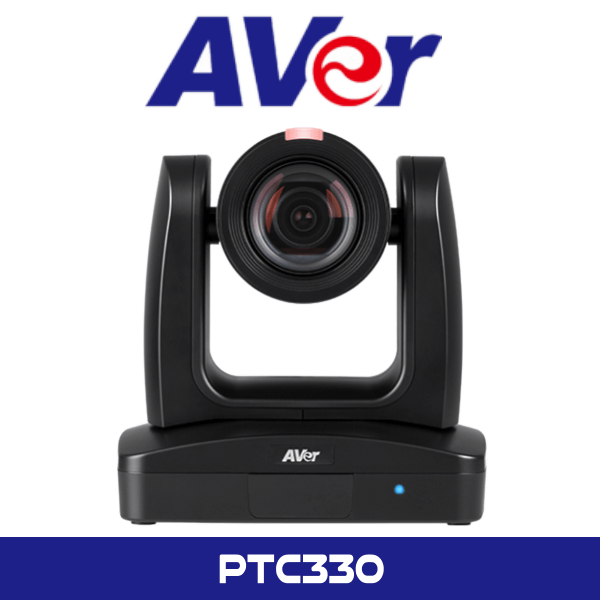

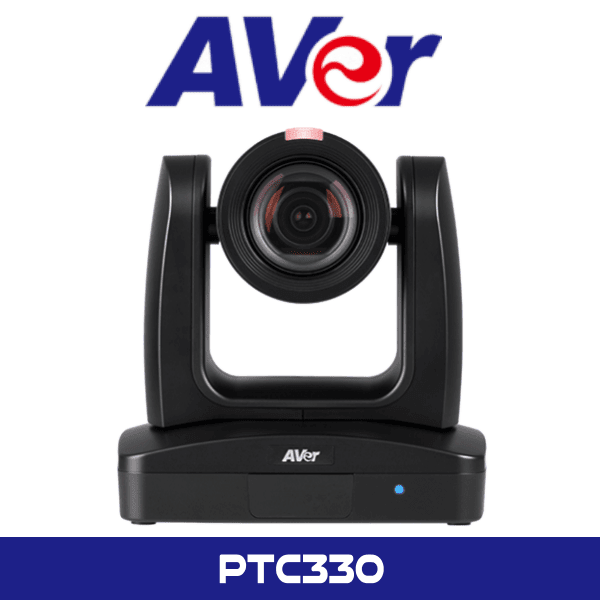

The Aver PTC330 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the Aver PTC330 Dubai features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. The Aver PTC330 Al combine the 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. AverPTC330 AI Dubai has an advance Human Detection technology that enables your camera to easily detect and capture human forms and moving objects in seconds. Aver PTC330 is equipped with a presenter mode that ensure you do not miss any details, presenter flexibly leave the stage and interact with the audience, all while being continuously tracked. Additionally Zone Mode that enhances your ability to capture content on multiple displays.

Key Features

  • Full HD 1080p Output Resolution
    • Aver PTC330 AI Auto is equipped with Full HD 1080p resolution, providing ultra-precise auto tracking. Aver PTC330 AI also features a Sony sensor that maintains a truly impressive video performance through every frame of your production without distorting any image details. Colors come out vividly with clarity
  • 30X Optical Zoom & 2X Sensor Zoom
    • Aver PTC330 AI Dubai boasts of zoom power with an incredible 60X (30X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance.
  • Human Detection AI
    • AverPTC330 AI Auto has an advance Human Detection technology. The highly accurate processing function enables your camera to easily detect and capture human forms and moving objects in seconds. This feature guarantees you quality video streaming and recording, you will never miss a tracking target.
  • Click & Track
    • Aver PTC330 AI Aut allows instant redirection of  focus. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive web UI.
  • Presenter Mode
    • Aver PTC330 AI Auto is equipped with a presenter Mode to ensure you do not miss any details. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
  • Zone Mode
    • Aver PTC330 AI Dubai has Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
  • Hybrid Mode
    • Hybrid Mode provides the utmost freedom of movement for performing artists. Aver PTC330 AI Dubai enables you to preset effective areas for Zone Tracking in advance, so that once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter Mode ensuring recording targets are not missed

Specifications

  • Camera
  • Image sensor
    • 1/2.8″ 1080p 60fps Exmor CMOS
  • Effective Picture Elements
    • Approx. 2.1 megapixels
  • Output Resolution
    • Auto
    • 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
  • Minimum Illumination
    • 0.3 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • > 50dB
  • Gain
    • Auto / Manual
  • TV Line
    • 800 (Center/Wide), 600 (Corner/Wide)
  • Shutter Speed
    • 1/1s – 1/32,000s
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC
  • White Balance
    • Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000)
  • Optical Zoom
    • 30X
  • Digital Zoom
    • 12X
  • Diagonal Viewing Angle
    • 74.6° (Wide) ~ 3.13° (Tele)
  • Focal length
    • f = 4.3 mm (Wide) – 129 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) – 4.7 (Tele)
  • Minimum Working Distance
    • 0.01 m (Wide), 1.2 m (Tele)
  • Pan/Tilt Angle
    • Pan: +- 170° ; Tilt: +90° / -30°
  • Pan/Tilt Speed (manual)
    • Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
  • Preset Speed
    • Pan: 200° /sec, Tilt: 200° /sec
  • Preset Position
    • 10 (IR), 255 (RS-232)
  • Camera Control – Interface
    • RS-232 (DIN9) / RS-422 (RJ45)
  • Camera Control – Protocol
    • VISCA (RS-232/RS-422/IP), CGI (IP)
  • Image Processing
    • Noise Reduction (2/3D), Flip, Mirror
  • Power Frequency
    • Auto / 50Hz / 60Hz
  • AI Functions
  • Modes
    • SmartShoot, SmartFrame
  • Audio
  • Channel
    • 2ch (Stereo)
  • Codec
    • AAC-LC (48/44.1/32/24K), G.711/PCM
  • Sample Rate
    • 48/44.1/32/24/16/8Khz

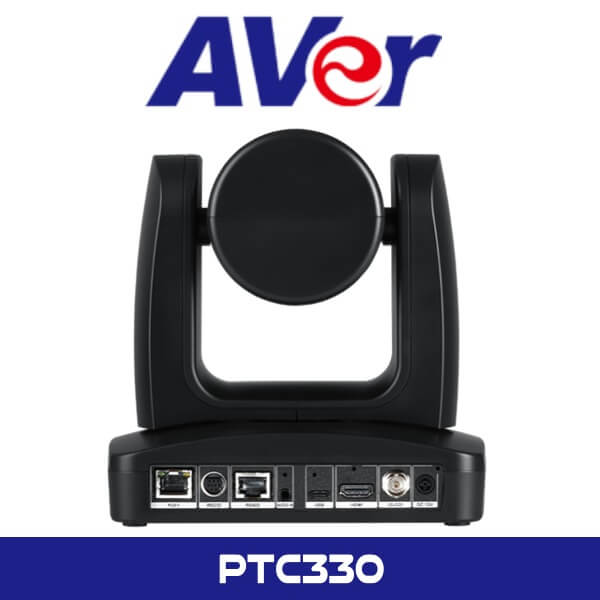

  • Interface
  • Video Output
    • 3G-SDI, HDMI, IP, USB
  • Audio Output
    • 3G-SDI, HDMI, IP, USB
  • Audio Input
    • MIC / Line in
  • General
  • Power Requirement
    • AC100V-AC240V to DC12V/5A
  • PoE
    • POE+ (IEEE 802.3at), Class 4
  • Operating Condition
    • Temperature: 0°C – +40°C ; Humidity: 20% – 80%
  • Storage Condition
    • Temperature: -20°C – +60°C ; Humidity: 20% – 95%
  • Dimensions
    • L=180 mm, W= 145 mm, H= 183.5 mm
  • Weight
    • 1.62 kg
  • Application
    • Indoor
  • Security
    • Kensington slot
  • Remote Control
    • Infrared
  • Accessories
    • Remote control, 12V/5A power adapter
  • IP Streaming
  • Resolution
    • 1920×1080, 1280×720, 960×540, 640×480
  • Network Video Compress Format
    • H.264 (High Profile), MJPEG
  • Maximum Frame Rate
    • H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080)
  • Bit-rate Control Mode
    • VBR / CBR (selectable)
  • Range of Bit-rate setting
    • 512Kbps – 32Mbps
  • Network Interface
    • 10/100/1000Base-T
  • Multi-stream Capability
    • 2
  • Network Protocol
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP
  • USB
  • Connector
    • Micro-USB 2.0
  • Video Format
    • YUV, MJPEG, H.264
  • Maximum Video Resolution
    • Up to 1080p
  • USB Video Class
    • UVC1.1
  • USB Audio Class
    • UAC1.0
  • Web UI
  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan / Tilt / Zoom / Focus / Preset Control
  • Camera / Image Adjustment
    • Exposure / White Balance / Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Software Tools
  • Device IP Searching, Configuration Tool
    • Windows Application
  • Warranty
  • Camera
    • 3 Years
  • Accessories
    • 1 Year

* Specifications may vary depending on location and are subject to change without notice.
