The Aver PTZ330W Dubai Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.

Description

Aver PTZ330W Professional PTZ Camera Dubai

The Aver PTZ330W Dubai allows you to capture 1080p images and videos via its 1/2″8 CMOS sensor. The PTZ330 features a 30X optical zoom and a 12X digital zoom, and supports Flip and Mirror options. The camera features 10 angle preset locations via IR and 255 presets via RS-232. You can control the 170° pan and -30 to +90° tilt range and speed. The camera features 3G-SDI and HDMI outputs, stereo audio input, RS-422, RS-232, LAN, and USB Micro-B control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording.

The Aver PTZ330W Dubai Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.

AVer PTZ330 Specs

Image Sensor

Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Horizontal Resolution (TV Lines) 600 TV Lines
Sensor Resolution Effective: 2 Megapixel
Signal-to-Noise Ratio 50 dB
Minimum Illumination 0.3 Lux

Camera

Shutter Speed 1/1 to 1/32,000 sec
Max Digital Zoom 12x
Built-In Speaker No
Flip / Mirror Support Image Flip, Mirror (Vertical)

Lens

Optical Zoom Ratio 30x
Focal Length 4.3 to 129mm
Field of View Horizontal: 67 to 2.3°
Maximum Aperture f/1.6 to 4.7
Minimum Focus Distance Wide: 0.0″ / 0.0 m
Telephoto: 47.2″ / 1.2 m

Video Output

Output Formats SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
IP Streaming H.264, MJPEG: 1080p at 30p, 60p

Control

Presets 10 via IR
255 via RS-232
Move Speed Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec
Movement Range Pan: 170°
Tilt: -30 to 90°
Supported Control Protocols IP
RS-232
RS-422
VISCA

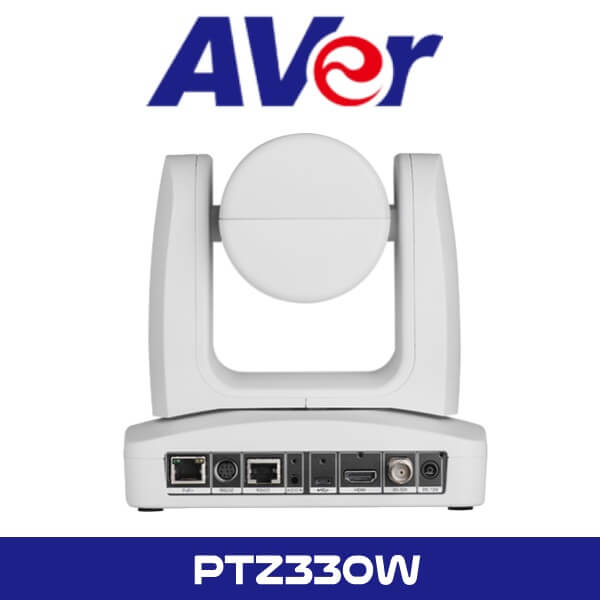

Interfaces

Video Output Connectors 1 x BNC (3G-SDI)
1 x HDMI Type A (HDMI 1.4)
Audio I/O 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
Control Interface 1 x RJ45 (RS-422)
1 x 9-Pin D-Sub (RS-232)
Other I/O 1 x RJ45 (LAN)
1 x USB Micro-B

Power

PoE Support PoE+ 802.3at
Power Connectors 1 x Barrel / Coaxial (12 VDC at 5 A)
Power Consumption Power Supply: 100 to 240 VAC

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%

General

Security Lock Support Kensington Lock Slot
Dimensions 7.22 x 7.09 x 5.71″ / 183.5 x 180 x 145 mm
Weight 3.57 lb / 1.62 kg

Packaging Info

Package Weight 7.07 lb
Box Dimensions (LxWxH) 10.8 x 10.2 x 10″
