Ubiquiti USW-16PoE Dubai

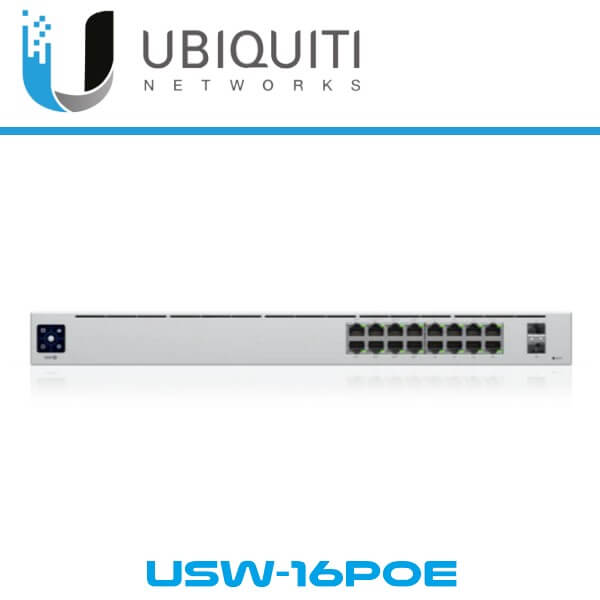

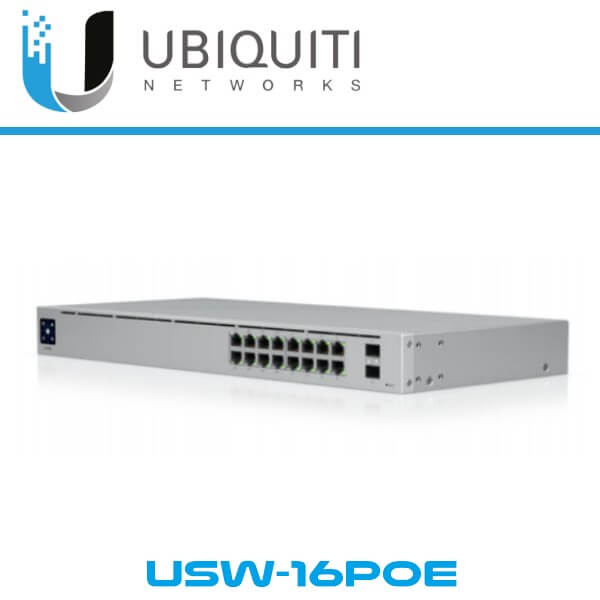

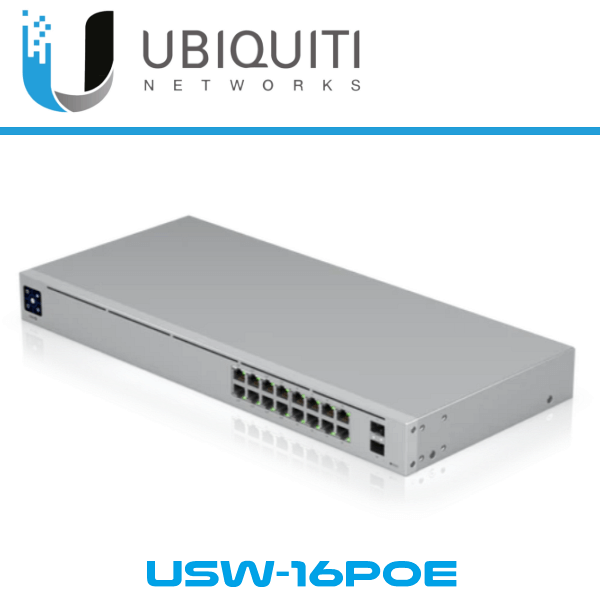

The Ubiquiti USW-16PoE Dubai is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network.

Description

Ubiquiti USW-16PoE Network Switch Dubai

The Ubiquiti USW-16PoE Dubai is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The Ubiquiti USW-16PoE Dubai also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

The Ubiquiti USW-16PoE Dubai is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. Ubiquiti USW-16PoE Dubai provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The Ubiquiti USW-16PoE Dubai features a 1.3″ touch LCM to provide status information. With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the Ubiquiti USW-16PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features:

  • (8) GbE, 802.3at PoE+ RJ45 ports
  • (8) GbE RJ45 ports
  • 45W total PoE supply
  • Fanless, silent cooling
  • Wall-mountable (kit included)

Technical Specs

Mechanical
Dimensions 191.7 x 185 x 43.7 mm
(7.55 x 7.28 x 1.72″)
Weight 1.2 kg
(2.65 lb)
Hardware
Total Non-Blocking Line Rate 16 Gbps
Max. Power Consumption 15W
Power Method Universal AC Input: 100-240VAC
Power Supply Internal 60W AC/DC Power Supply
Networking Interfaces (16) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface Ethernet In-Band
Max PoE+ Wattage per Port by PSE 30W
Modes SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature -15 to 40° C (5 to 104° F)
Operating Humidity 10 – 90% Noncondensing
Certifcations CE, FCC, IC
LED
System (1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet Green: 1G, Amber: 10/100 Mbps
PoE Amber: IEEE 802.3af/at
