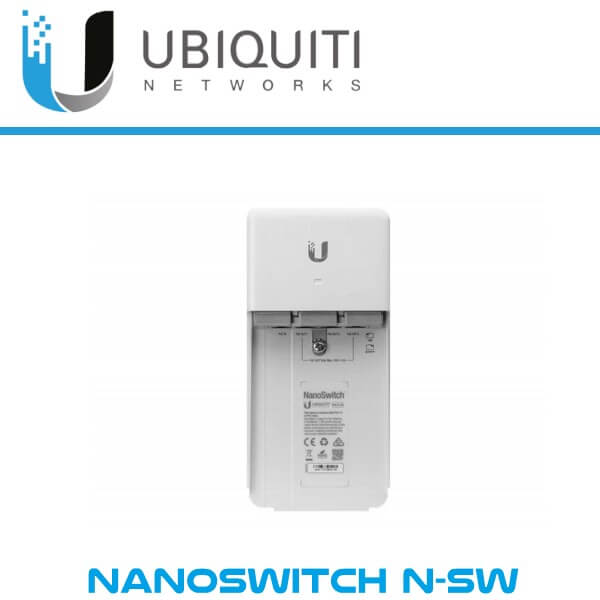

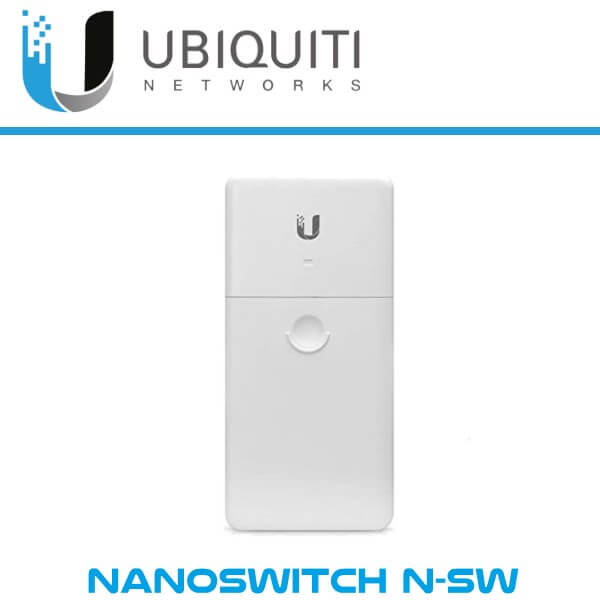

Ubiquiti NanoSwitch N-SW Dubai



Ubiquiti NanoSwitch N-SW Dubai

The Ubiquiti N-SW Dubai  is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

Description

Ubiquiti NanoSwitch (N-SW) Dubai

The Ubiquiti NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

Ubiquiti N-SW Dubai Features:

    • (1) Gigabit 24V Passive PoE In Port
    • (3) Gigabit 24V Passive PoE Out Ports
    • Outdoor, Weather-Resistant Enclosure
N-SW Technical Specifications
Dimensions 196.4*93.5*32.4mm
7.73*3.68*1.28inch
Weight 269g
9.5oz
Enclosure Characteristics White Polycarbonate
HARDWARE
Processor RTL8367N-VB
On-Board Flash Storage 4Kbits
Total Non-Blocking Line Rate 4Gbps
TYP. Power Consumption 1.5W
Power Method Passive 24V PoE-in
Supported Voltage Range Passive 24V PoE-in
Networking Interfaces (4) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces Passive 24V PoE-in
Max PoE+ Wattage per Port by PSE 24V@1A per port / Total 24V@1.5A for three ports
Passive PoE Max wattage per port 24W per port / Total 36W for three ports
Operating Temperature -30C ~ 70C
Operating Humidity 5 to 95% Non-Condensing
