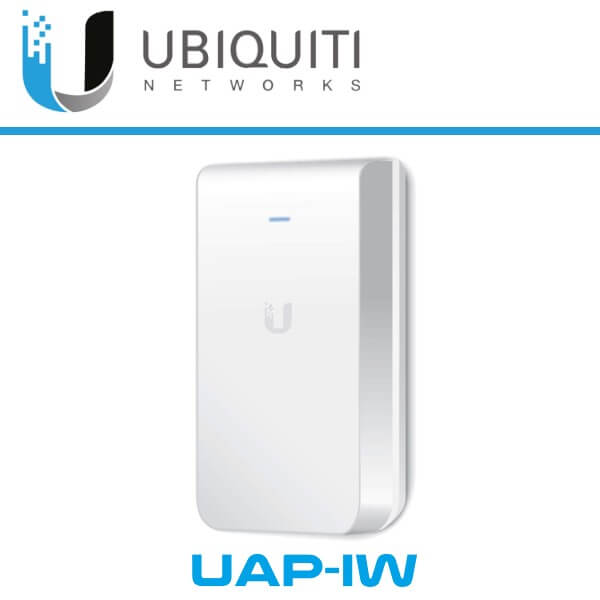

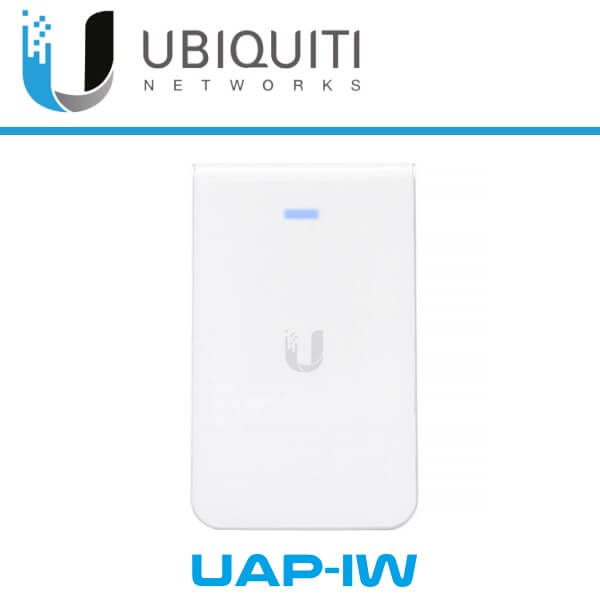

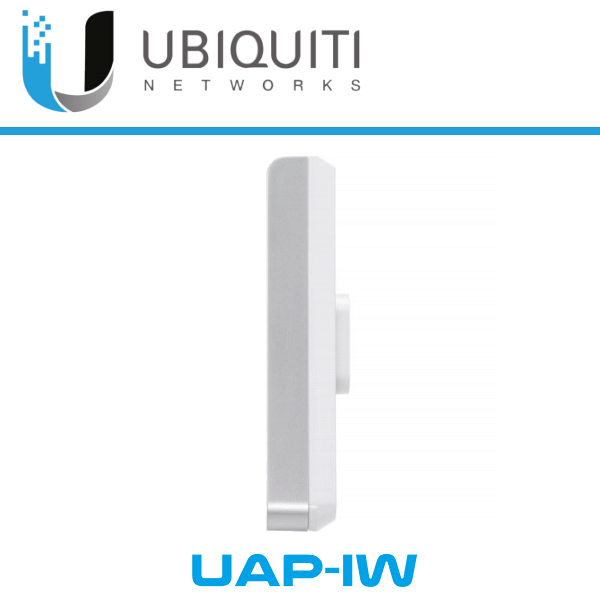

Ubiquiti UAP-IW Dubai



Ubiquiti UAP-IW Dubai

The Ubiquiti UAP-IW Dubai can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands, and it has an impressively long transmission range up to 100 meters (328 feet).

Description

Ubiquiti UAP-IW Access Point Dubai

The Ubiquiti UAP-IW Dubai is a dual-band, 802.11ac WiFi access point that can be plugged into any standard wall outlet. The UAP AC IW can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands, and it has an impressively long transmission range up to 100 meters (328 feet). This access point is also equipped with (3) GbE RJ45 ports, including (1) for 802.3af PoE input, (1) for 48V 802.3 af PoE output, and (1) dedicated to data transmission. The Ubiquiti UAP-IW Dubai is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features:

  • 802.11ac Wave 1 WiFi technology
  • 5 GHz band with an 867 Mbps throughput rate
  • 2.4 GHz band with a 300 Mbps throughput rate
  • Signal transmission range up to 100 meters (328 feet)

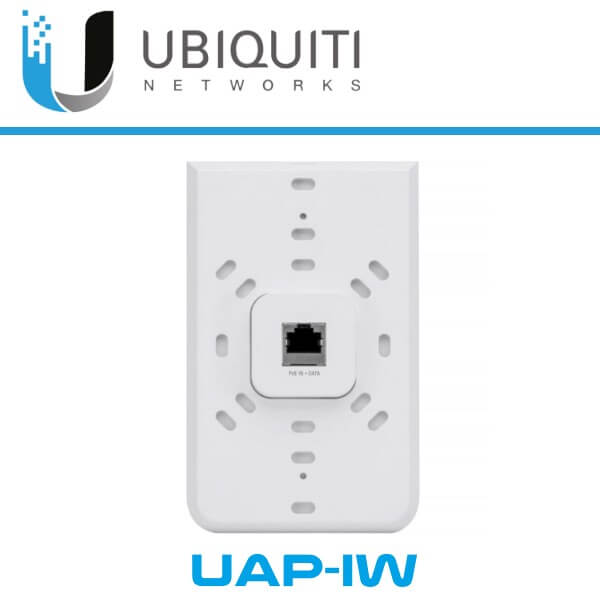

  • Can be mounted in a 1-gang electrical wall box

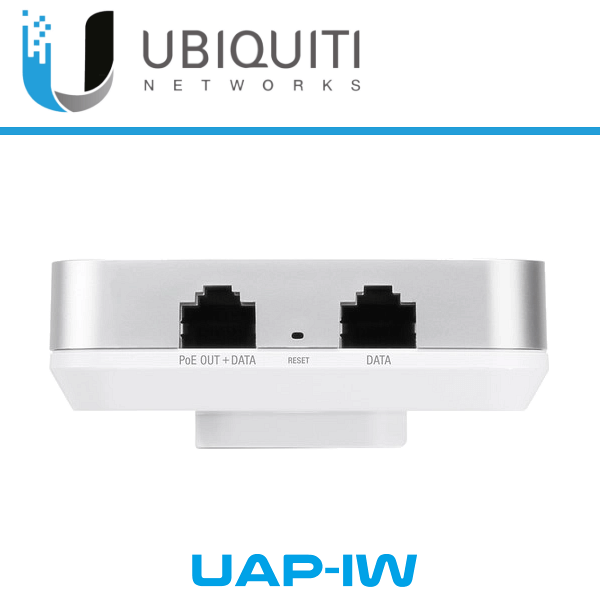

  • (3) GbE RJ45 ports, including:
    • (1) for data + 802.3at PoE+ input
    • (1) for data + 48V 802.3af PoE output*
    • (1) for data only

Technical Details

Mechanical
Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
Weight 200 g (6.43 oz)
Networking Interface (3) 10/100/1000 Ethernet Ports
Buttons Reset
Power Method 802.3at PoE+ Supported
Power Supply UniFi PoE Switch (Not Included)
Power Save Supported
PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption
With PoE Passthrough
7W
19W
Maximum TX Power
  • 2.4 GHz : 20 dBm
  • 5 GHz : 20 dBm
Antennas (1) Dual-Band Antenna, Single-Polarity

  • 2.4 GHz : 1 dBi
  • 5 GHz : 2 dBi
Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
Mounting 1-Gang Electrical Wall Box (Not Included)
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 250
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 -MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
